DAS Audio Vantec 12A – Multi-purpose Full Range System
4,388.91 AED Includes 5% UAE VAT

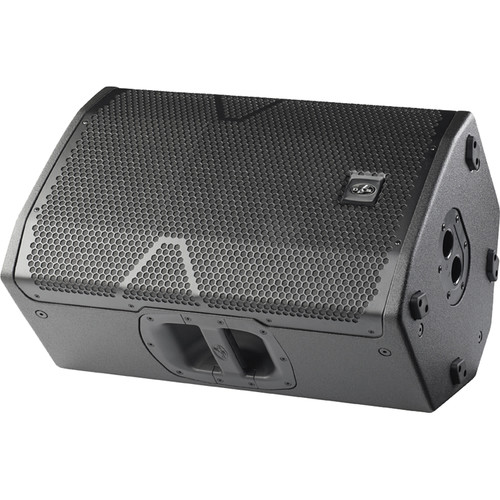

The VANTEC-12AÂ is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system. The 1500 Wpeak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.
Model number
VANTEC-12A
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The VANTEC-12AÂ is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system. The 1500 Wpeak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

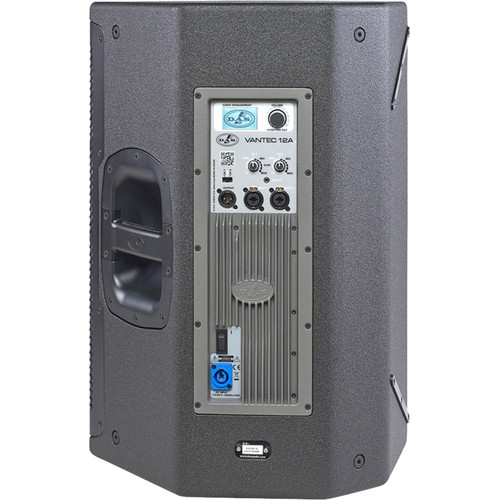

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also allows users to wirelessly stream music from any mobile device. The 12F4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1″ exit offering excellent performance.
Features
- Compact multi-purpose system with monitor position
- Ultra lightweight Class D amplifier with SMPS
- User definable 24-bit DSP with LCD screen
- Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
- Stackable 3-band EQ
- High-Definition wireless streaming of music in stereo
- Pole mount socket with dual angles 0º/10º
- Rigging points
Applications
- Concerts and corporate A/V
- Portable and live clubs
- Theaters and auditoriums
- Houses of worship
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 50º |
| Maximum Peak SPL at 1 m | 135 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 3 V (+12 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DASlinkâ„¢ DAScontrolâ„¢ |
| AC Input Connector | powerCon NAC3FCA |
| Current Draw 230 V / 115 V | 1.2 A/2.4 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 620 x 380 x 380 mm 24,4 x 15,0 x 15,0 in |
| Net Weight | 21,5 kg ( 47,4 lb ) |
| Components | |
| LF Driver | 12F4 |
| HF Driver | M-28 |
| Horn/Waveguide | BC-95 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 720 x 456 x 456 mm 28,4 x 18,0 x 18,0 in |
| Shipping Weight | 24,0 kg ( 52,9 lb ) |
