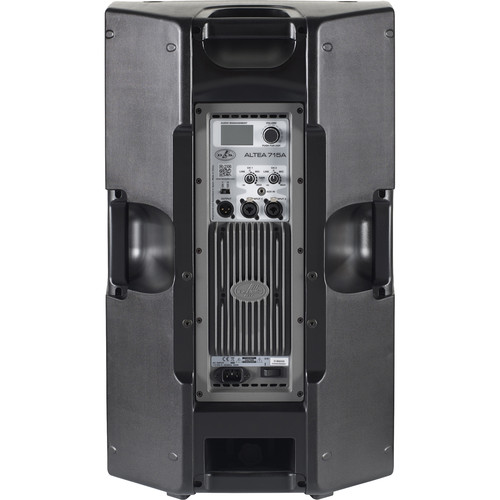

The ALTEA-715A is a high-powered model from DAS Audio’s ALTEA Series. It´s equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-715A systems.

Features:

  • Multi-purpose system with monitor position
  • Ultra lightweight Class D amplifier with SMPS
  • Stereo music streaming in high definition
  • User definable 24-bit DSP with LCD screen
  • 5 voicing presets
  • User-defineable memories
  • Stackable 3-band EQ
  • Standby Mode
  • Rigging points

Applications:

  • Concerts and corporate A/V
  • Portable and live clubs
  • Theaters and auditoriums
  • Houses of worship

Specifications

Active or Passive
Active
Peak Power
1500 W class-D
Input Type
Balanced differential line
Input Impedance
Line: 20 kOhms
Sensitivity
1.95 V (+8 dBu)
Frequency Range
45 Hz – 20 kHz
Coverage Angle
90 x 60°
Max Peak SPL
132 dB
Input / Output Connectors
2 x combo XLR-1/4″ inputs
1 x 3.5 mm Aux input
1 x XLR male, loop-thru
IEC male, AC input
AC Power Requirements
115 VAC, 3.0 A @ 50/60 Hz
230 VAC, 1.5 A @ 50/60 Hz
Enclosure Material
Black textured polypropylene
Dimensions
28.0 x 17.3 x 15.0″ (71 x 44 x 38 cm)
Weight
45.3 lb (20.6 kg)
