Description

Description

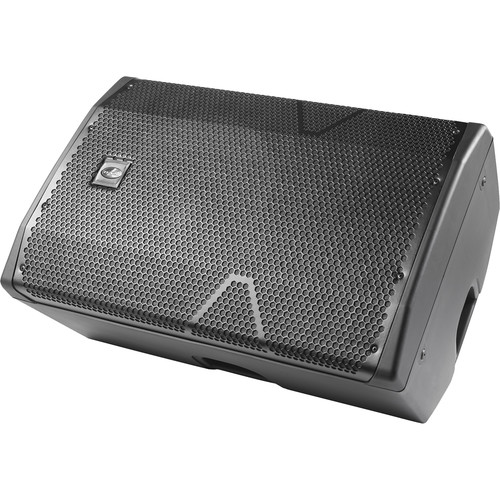

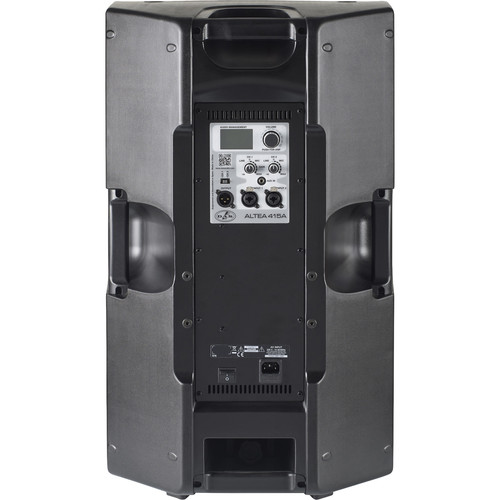

The Altea 415A Powered Full-Range 15″ 2-Way Loudspeaker System from D.A.S Audio is designed for professional live sound reinforcement applications, and can function as a compact PA or a floor wedge monitor. It features a built-in Class-D amplifier that provides a total of 800W peak power and a two-channel mixer. The DAScontrol interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet.
The high frequencies are handled by the M-32 compression driver with 1″ exit providing smooth reproduction. The black textured polypropylene cabinet comes with four handles, built-in rigging points, and a 1-3/8″ tripod socket.



Specifications

Active or Passive
Active
Peak Power
800 W class-D
Input Type
Balanced differential line
Input Impedance
Line: 20 kOhms
Sensitivity
1.95 V (+8 dBu)
Frequency Range
50 Hz – 20 kHz
Coverage Angle
90 x 60°
Max Peak SPL
128 dB
Input / Output Connectors
2 x combo XLR-1/4″ inputs
1 x 3.5 mm Aux input
1 x XLR male, loop-thru
IEC male, AC input
AC Power Requirements
115 VAC, 2.4 A @ 50/60 Hz
230 VAC, 1.2 A @ 50/60 Hz
Enclosure Material
Black textured polypropylene
Dimensions
28.0 x 17.3 x 15.0″ (71 x 44 x 38 cm)
Weight
42.5 lb (19.3 kg)
