Klark Teknik DN9610 Dual Port AES50 Repeater, 100m Range, 96 kHz Capacity
1,423.80 AED Includes 5% UAE VAT
The DN9610 offers an affordable solution to the 100-meter restriction of Ethernet and CAT5 cables in AES50 networks, featuring a compact design that can be placed as needed to extend network connections, requiring only a mains power source.
Model number
DN9610
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

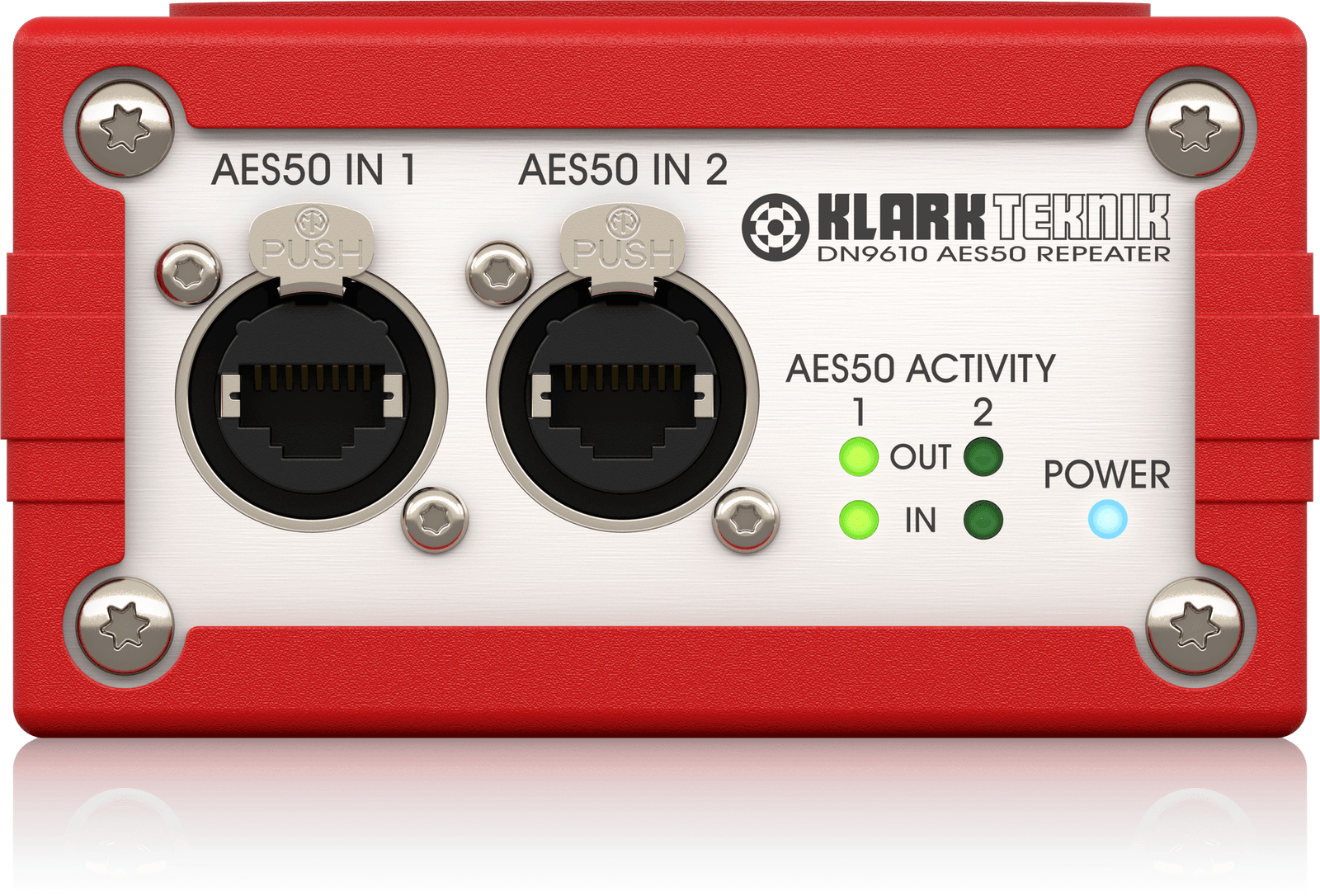

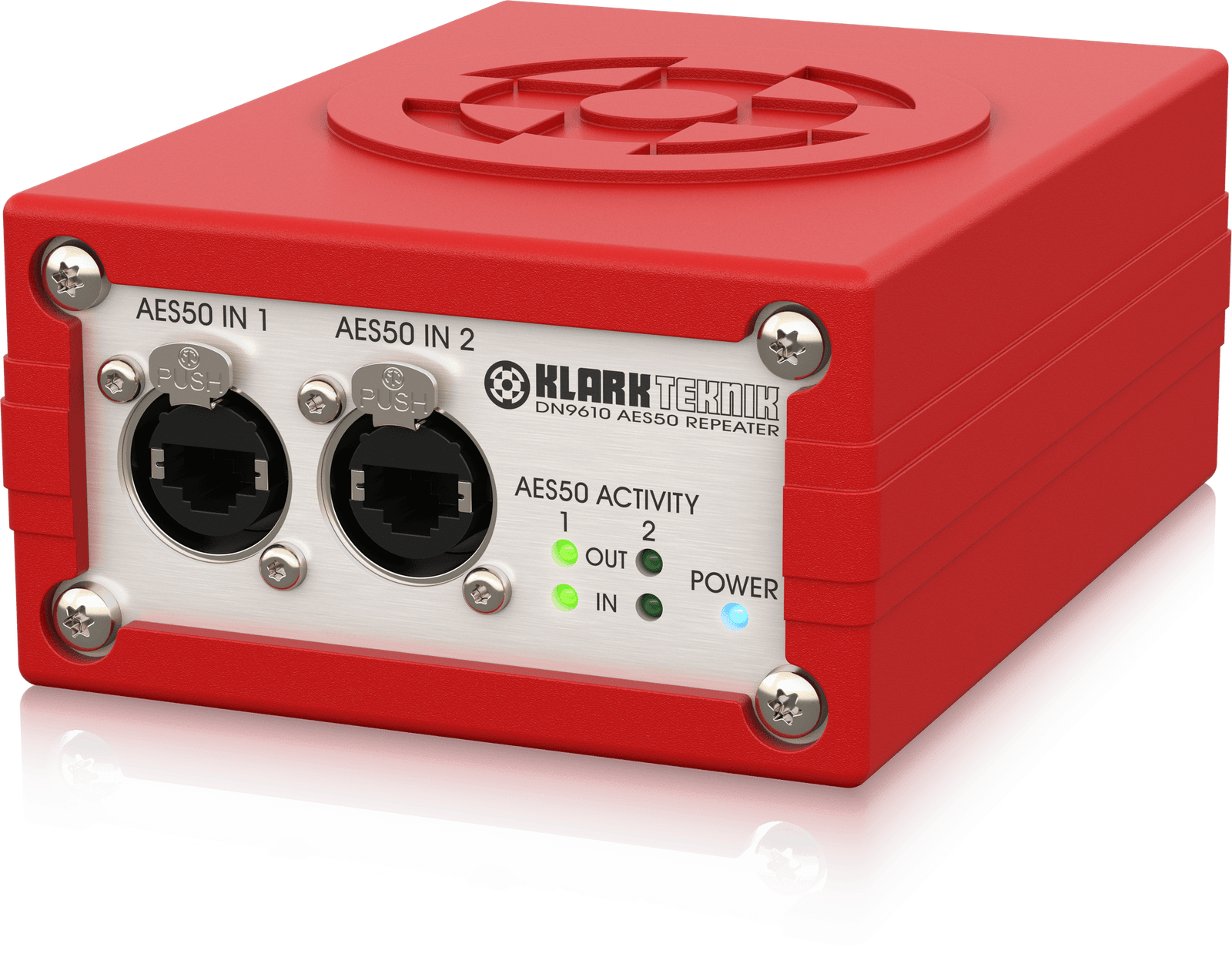

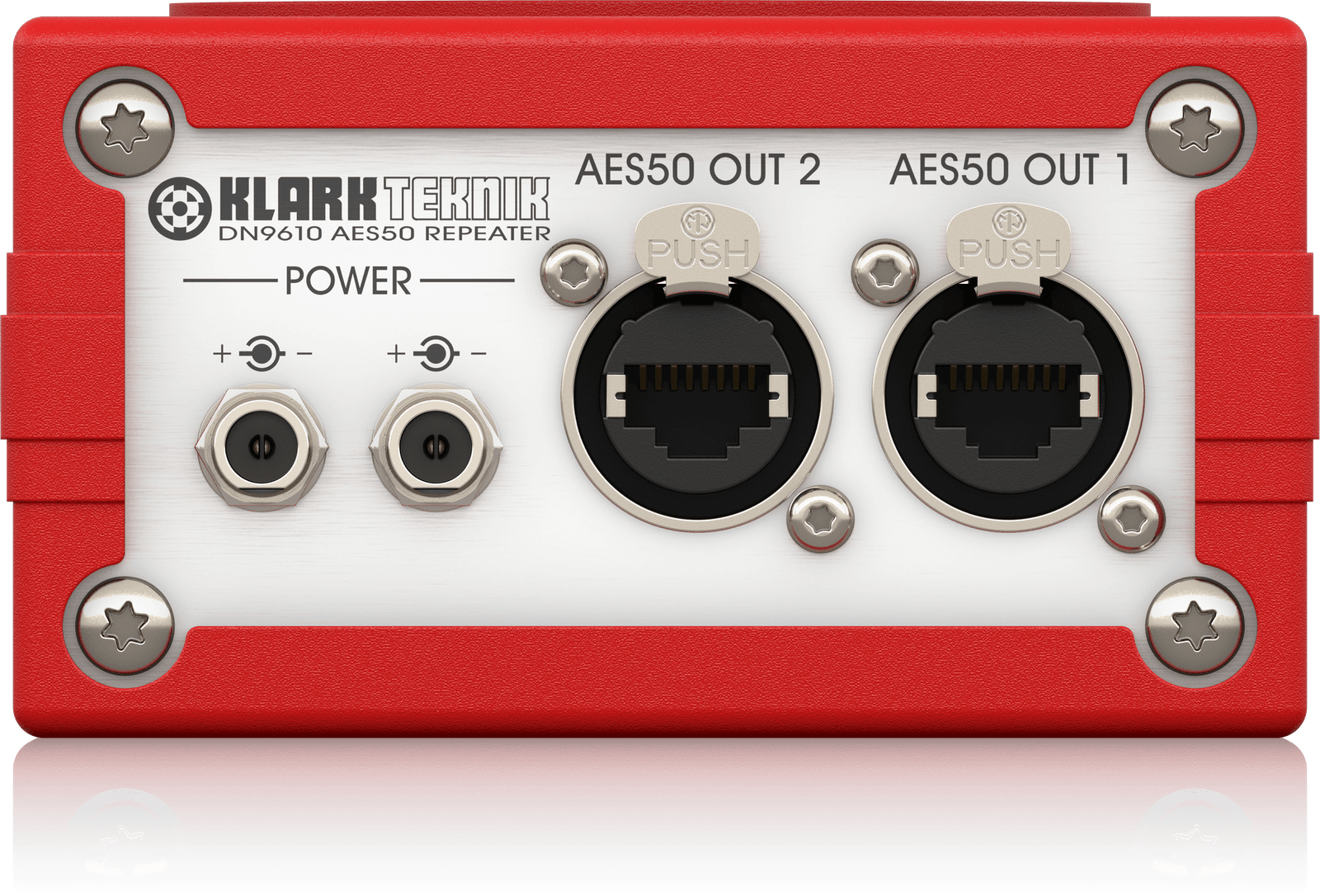

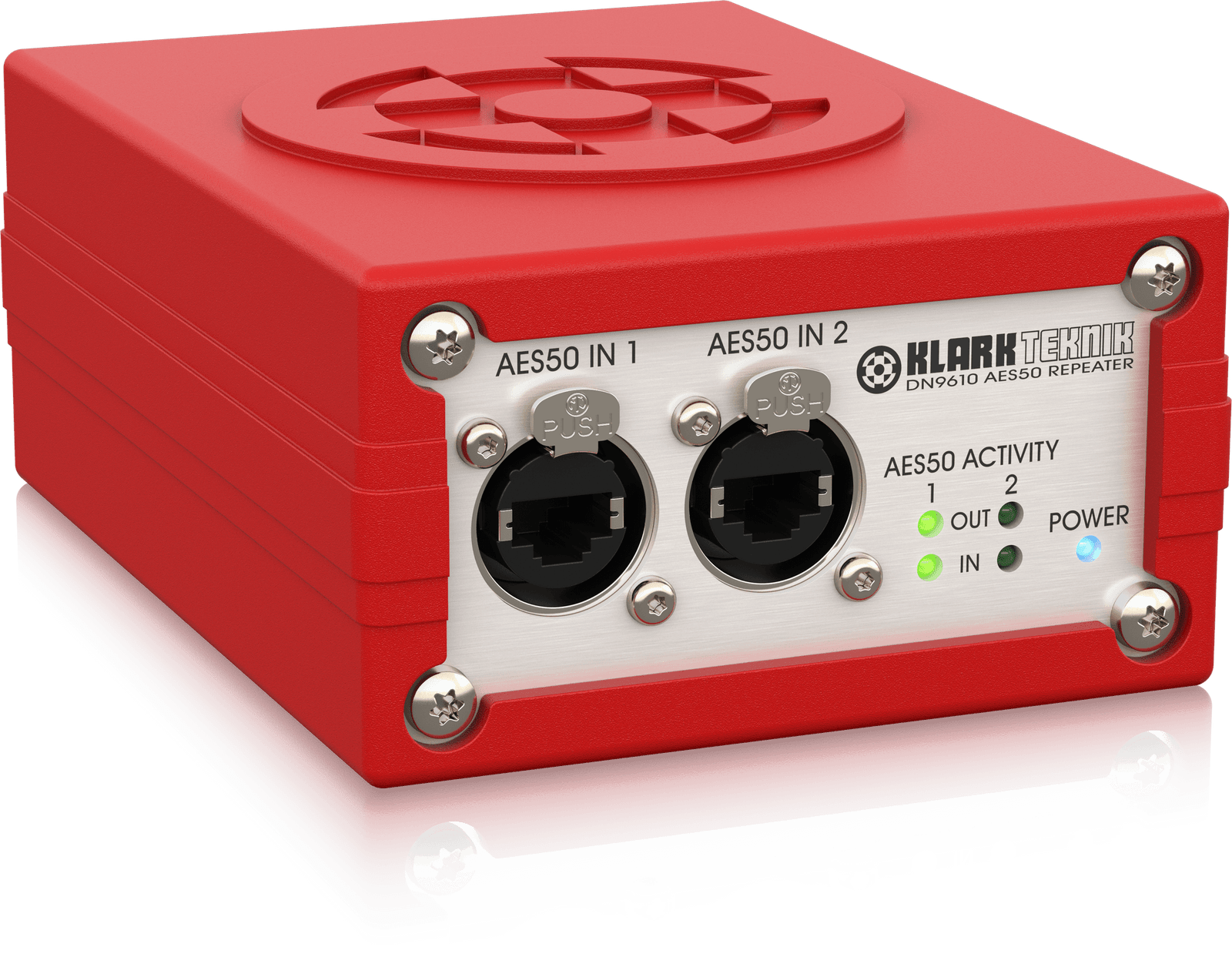

DN9610 AES50 Repeater
The DN9610 offers an affordable solution to the 100-meter limit imposed by Ethernet and CAT5 cabling in AES50 networks. With its compact form, the DN9610 can be conveniently placed to extend network connections, requiring only a mains power source.
Key Features
- Extends two independent AES50 connections by up to 100 m with CAT5 cable
- High channel capacity – 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation
- Supports dual-redundant AES50 networks (X and Y connections)
- Rugged locking Neutrik etherCON connectors for AES50 connections
- Status indicator LEDs for each AES50 port
- Dual-redundant power supply inputs with locking Switchcraft connectors
- External auto-ranging universal switch-mode power supply adapter
- Durable aluminium casing with a stackable protective silicone rubber sleeve
- Compact and robust design
Specifications
| Specification | Details |
|---|---|
| AES50 Ports | 2 x Neutrik etherCON, 48, 96 kHz |
| Power | 2 x Switchcraft locking 2.1 mm DC power connector (center positive), 9 to 18 VDC |
| Power Consumption | 83 mA single channel, 166 mA both channels |
| Dimensions | 4.2 x 5.7 x 2.3″ / 106.0 x 145.0 x 59.0 mm |
| Weight | 1.8 lb / 0.8 kg |
Packaging Info
| Specification | Details |
|---|---|
| Package Weight | 2.465 lb |
| Box Dimensions (LxWxH) | 9.3 x 6.2 x 3.05″ |
