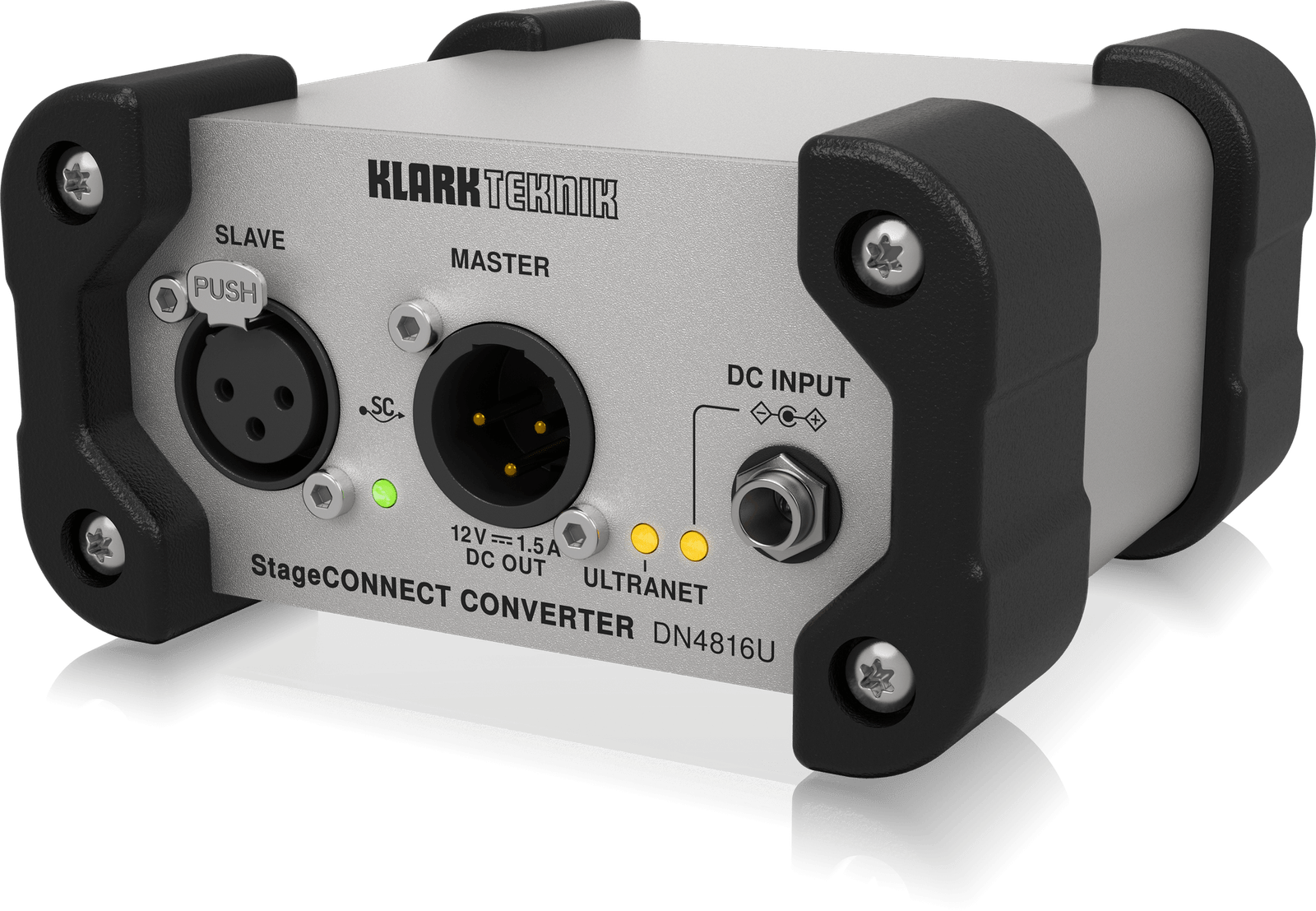

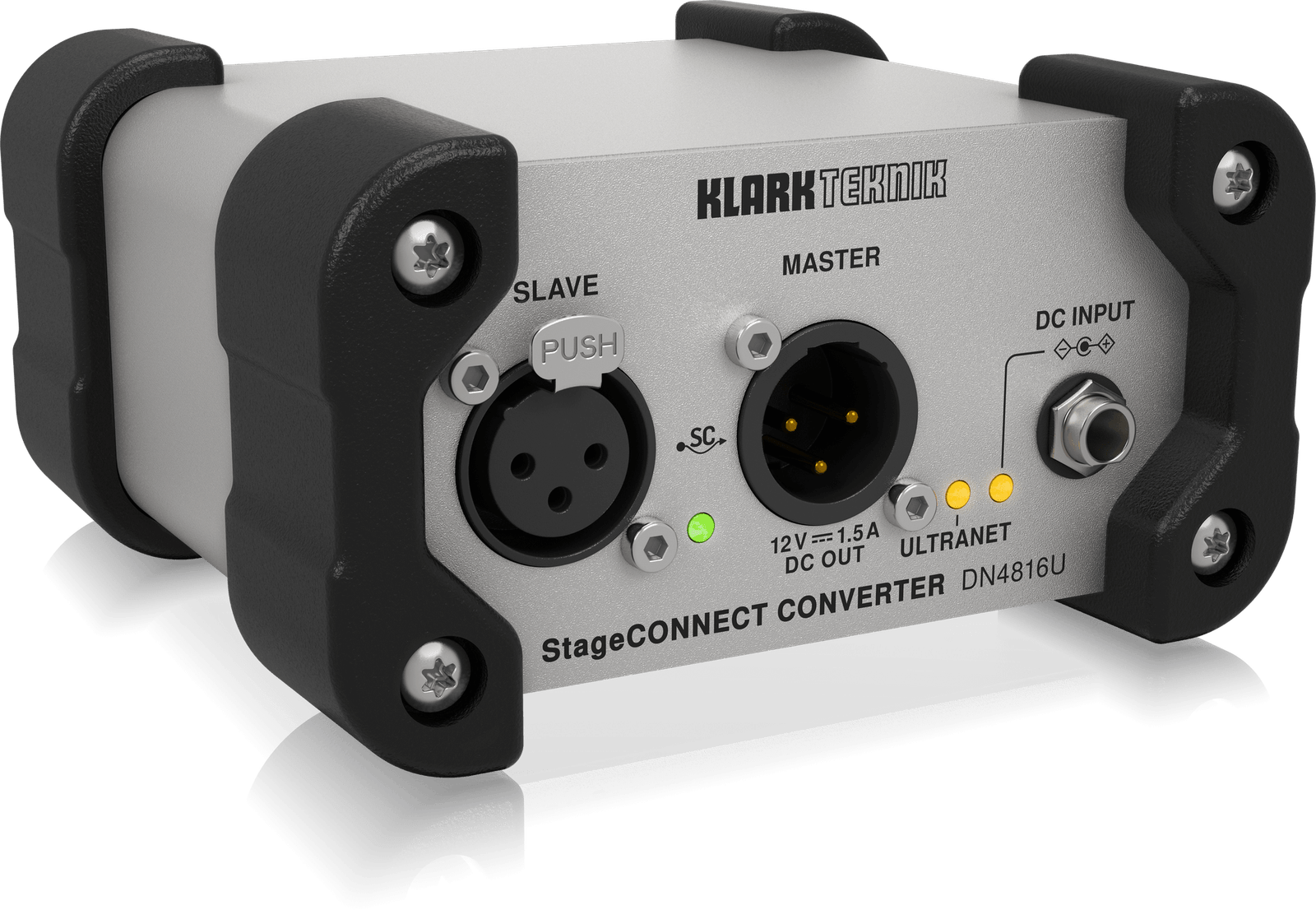

Klark Teknik DN4816U StageConnect Interface Bridge with 32-Channel USB Audio I/O
1,071.00 AED Includes 5% UAE VAT
The Klark Teknik DN4816U interface box enables the sharing of 32 audio channels between StageConnect devices, Behringer Ultranet, and USB audio on a PC. Ideal for applications such as sending USB audio to Behringer P16 mixers, using a Midas MR18 as an input box for Behringer WING, or recording directly in a DAW. It supports single XLR cable interconnection for multi-channel audio and offers scalable connectivity options. DN48XX Series devices can be daisy-chained with automatic channel allocation.
Model number
DN4816U
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Klark Teknik DN4816U Audio Interface
The Klark Teknik DN4816U is a versatile and compact audio interface designed for seamless integration between StageConnect devices, Behringer Ultranet systems, and USB audio on your PC. It allows for a wide range of applications, including sending USB audio to Behringer P16 personal monitor mixers, using a Midas MR18 as a 16-channel input box for Behringer WING, or recording 32 channels from WING directly into your DAW. The DN4816U achieves multi-channel audio transmission with a single XLR cable, making connectivity both straightforward and scalable.
Features
- Compact DI Box sized interface for connecting StageConnect and Behringer Ultranet systems with USB multi-channel audio.
- StageConnect supports 32-channel audio transmission with sub-millisecond latency, 24-bit uncompressed PCM at 44.1/48 kHz.
- 32-channel asynchronous sample rate conversion offers connections to various clock domains at 0.4 ms latency.
- Supports bi-directional audio configurations with control data and 12 VDC/18 W remote power.

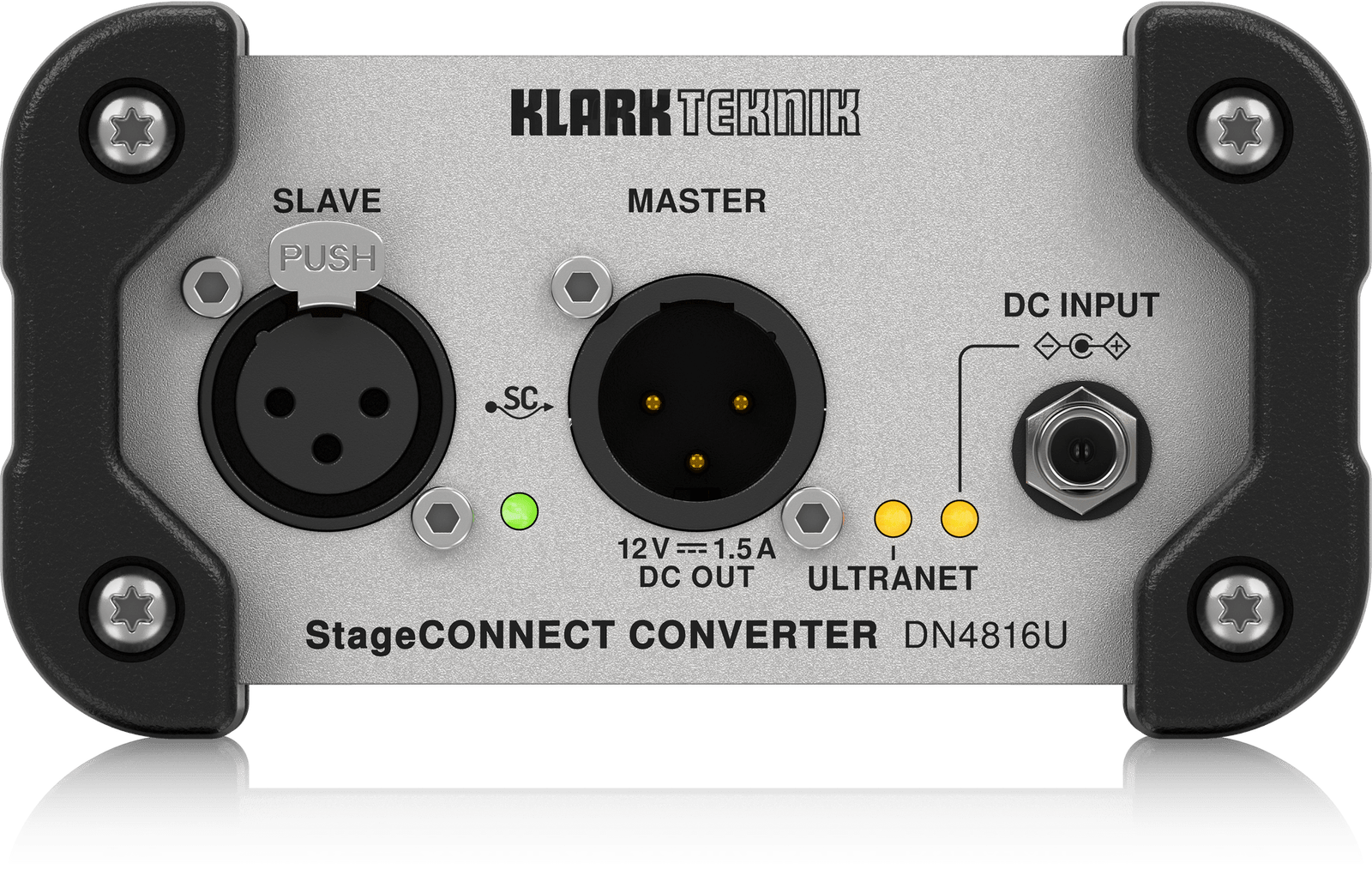

- Includes Master and Slave ports for exchanging multi-channel audio with other StageConnect devices.
- Provides capability for sending StageConnect or USB signals to P16 personal monitoring mixers or Turbosound iQ speakers.
- Converts Behringer Ultranet signals to StageConnect or USB streams.
- Slave mode compatibility with StageConnect enabled mixing consoles, stageboxes, and hubs.
- External power supply supports stand-alone operation with remote power output via the StageConnect Master port.
Specifications
Processing
| Specification | Details |
|---|---|
| StageConnect bus capacity | 32 ch, 24-Bit PCM audio |
| I/O latency | 0.1 ms |

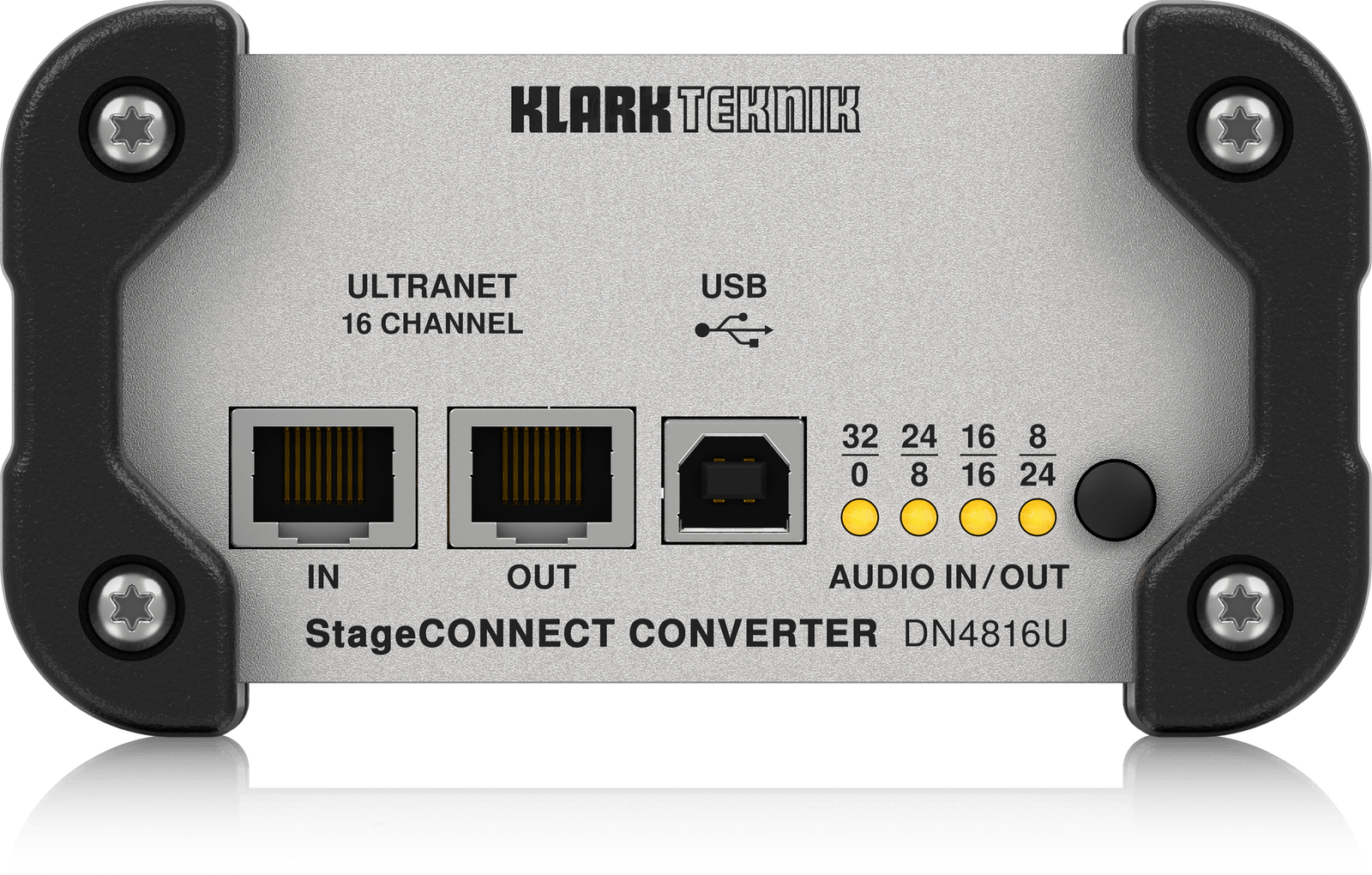

Connectors
| Specification | Details |
|---|---|
| Ultranet | 2 x RJ45 |
| Shielded CAT5e cable max. length | 75 m |
| StageConnect | 1 XLR male, 1 XLR female |
| Shielded bal. 110-Ohm DMX cable | max. 40 m |
| USB | Type B |
| USB audio in / out configurations | 32 / 0, 24 / 8, 16 / 16, 8 / 24 channels |
| USB audio class 2 compatible with OS | Win10 (ASIO/WDM), OSX (CoreAudio), Linux |
Power
| Specification | Details |
|---|---|
| Power supply | 12 V DC / 2.5 A, 30 W adapter included, remote power input via Slave XLR (female), remote power output via Master XLR (male) 12 V DC / 1.5 A, 18 W |
| Power consumption | 9 W |
Physical
| Specification | Details |
|---|---|
| Standard operating temperature range | 5° – 45° C (41° – 113° F) |
| Dimensions | 118 x 63 x 112 mm (4.7 x 2.5 x 4.4″) |
| Weight | 0.71 kg (1.57 lbs) |
