Bose Professional DesignMax DM2C-LP In-Ceiling Loudspeaker – Black (Pair)

Name: Bose Professional DesignMax DM2C-LP In-Ceiling Loudspeaker - Black (Pair)
Brand: Bose Professional
SKU: DM2C-LP-BLK
Price: 1084.86 AED
Availability: InStock

Brand Bose Professional

1,084.86 AED Includes 5% UAE VAT

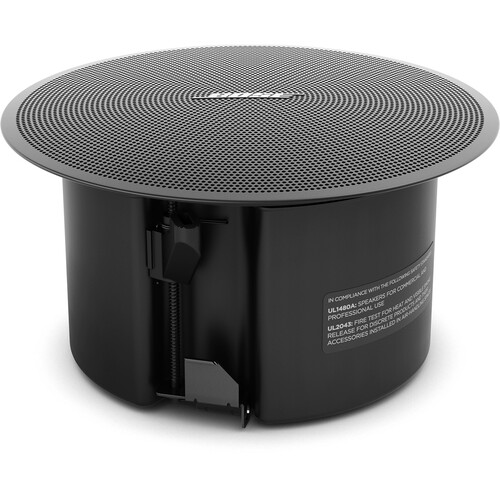

The DesignMax DM2C-LP features a two-way coaxial configuration containing a 2.25-inch woofer and a 0.75-inch tweeter integrated within a low-profile formed steel backcan.

Ask a question

Model number DM2C-LP-BLK

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

The DesignMax DM2C-LP features a two-way coaxial configuration containing a 2.25-inch woofer and a 0.75-inch tweeter integrated within a low-profile formed steel backcan. Measuring just 10 centimeters in mounting depth, it fits easily into cramped spaces where standard ceiling speakers cannot clear structural obstructions. Voiced for total tonal consistency across the premium DesignMax product family, it produces natural, highly detailed sound distribution straight out of the box without requiring external digital signal processing (DSP) or complex equalization filters.

Features

Low-Profile Form Factor: Features a shallow 100 mm depth that easily clears tight overhead architectural barriers, electrical conduits, and HVAC piping systems.
Coaxial Driver Layout: Nests the high-frequency tweeter directly over the low-frequency woofer to maintain phase accuracy and clear speech intelligibility.
QuickHold Mounting Arms: Utilizes a patented spring-loaded long-travel arm mechanism that snaps into place against the ceiling cutout, lowering installation strain and accelerating job site timelines.
Plenum-Rated Safety: Comes equipped with a durable, integrated steel backcan certified under safety standards for deployment in open air-handling spaces.
Clean Surface Integration: Features a minimum-bezel magnetically attached grille with a removable or rotatable brand logo badge to maintain an understated visual presence.
Paintable Exterior: The front plastic assembly and steel grille are fully paintable to cleanly match bespoke hospitality or corporate interior styling.

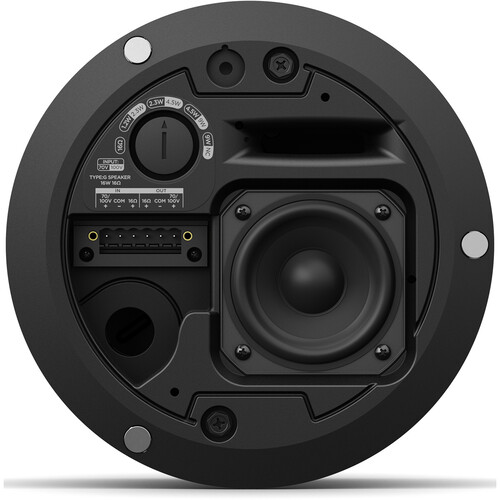

Front-Access Terminals: Leverages industry-standard 6-pin Euroblock loop-through connectors accessible directly from the front baffle, streamlining cable daisy-chaining.

Applications

Restrooms & Corridors: Ideal for secondary zones, walkways, and public facilities within large commercial venues.
Boutique Retail Outlets: Fits compact checkout counters, changing rooms, and niche display floor layouts.
Corporate Offices: Perfect for huddle rooms, break lounges, and office corridors with low drop-ceilings.
Hospitality Infrastructure: Well-suited for hotel guest hallways, elevator lobbies, and intimate cafe seating zones.
Transit Hubs: Delivers intelligible, low-level paging and background announcements across transit walkways.

Technical Specifications

Transducers: 1 x 2.25-inch low-frequency woofer, 1 x 0.75-inch coaxial neodymium dome high-frequency tweeter.
Power Handling: 20 Watts RMS long-term continuous / 80 Watts peak power.
Frequency Range (-10 dB): 80 Hz to 19,000 Hz.
Frequency Response (+/-3 dB): 95 Hz to 16,000 Hz.
Nominal Coverage Pattern: 150° Conical dispersion.
Sensitivity (SPL / 1W @ 1m): 84 dB.
Maximum SPL @ 1m: 97 dB continuous / 103 dB peak.
Nominal Impedance: 16 Ohms (transformer bypassed, allowing multiple units to loop on standard low-impedance channels).
70V/100V Multi-Tap Transformer Settings:
- 70V lines: 1.2W, 2.3W, 4.5W, 9W, 18W
- 100V lines: 2.3W, 4.5W, 9W, 18W
Ceiling Cutout Diameter: 165 mm.
Product Dimensions (Loudspeaker Diameter × Depth): 198 mm × 110 mm.
Net Weight (Single Speaker with Grille): 1.63 kg.
