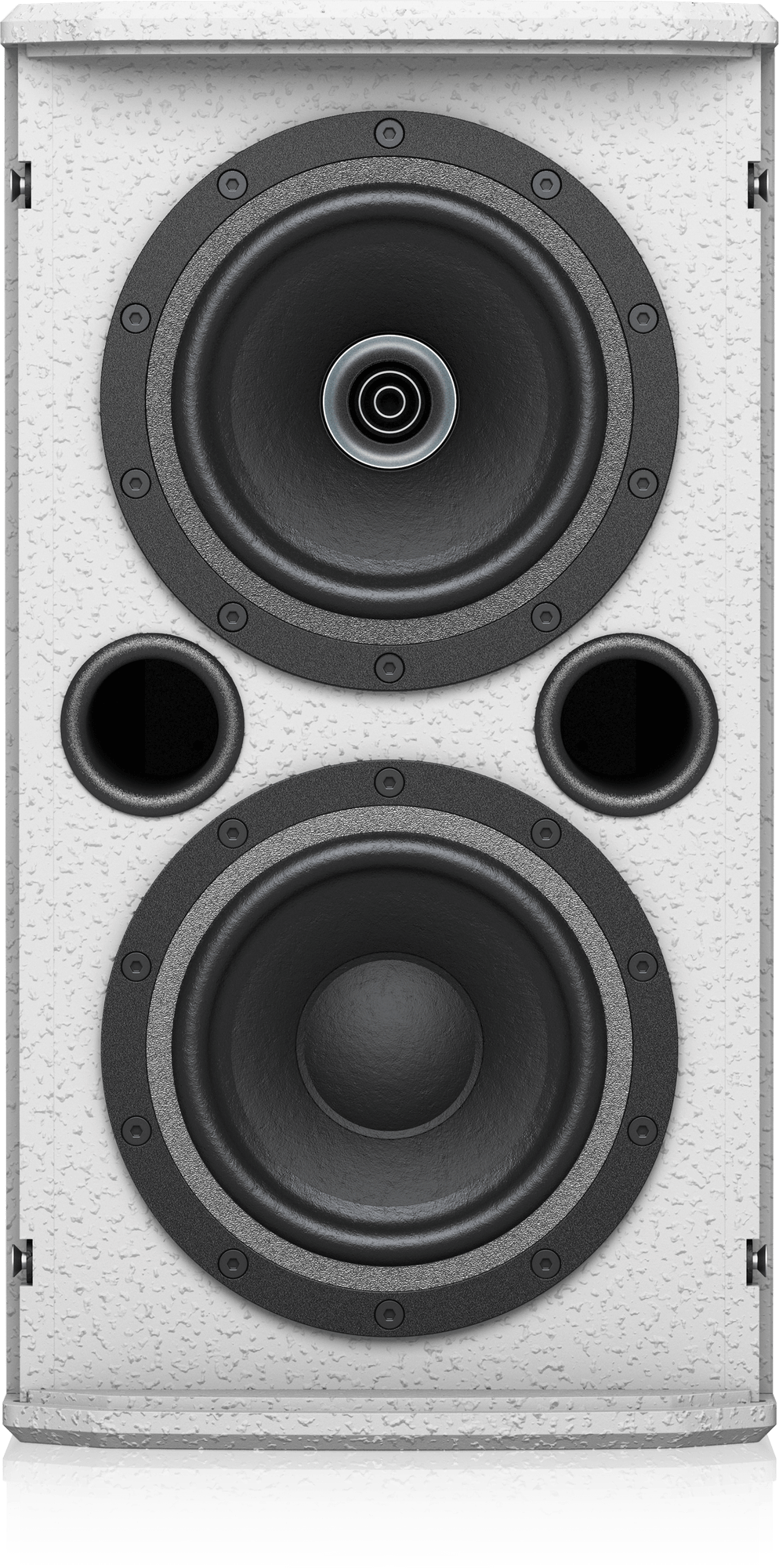

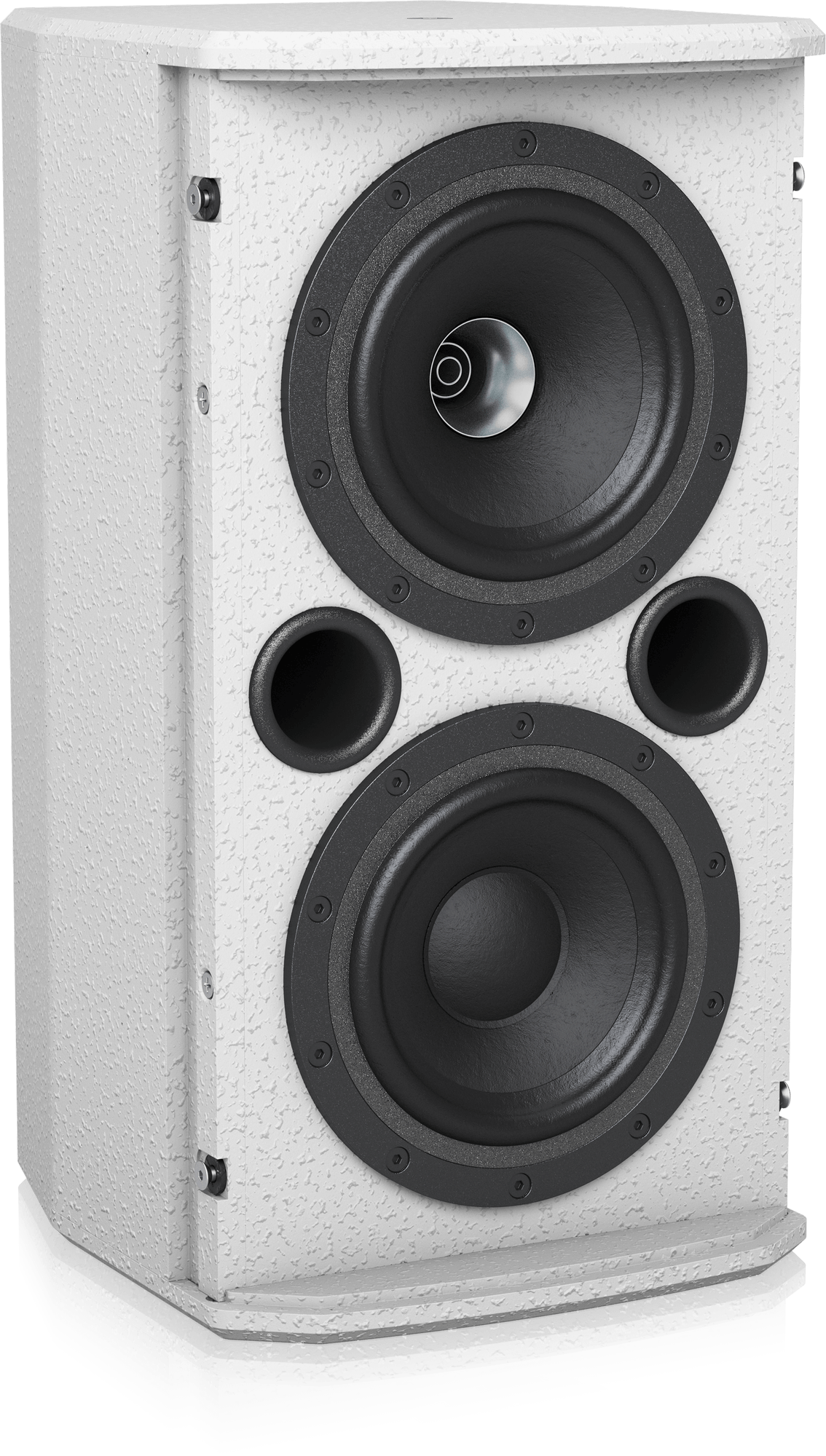

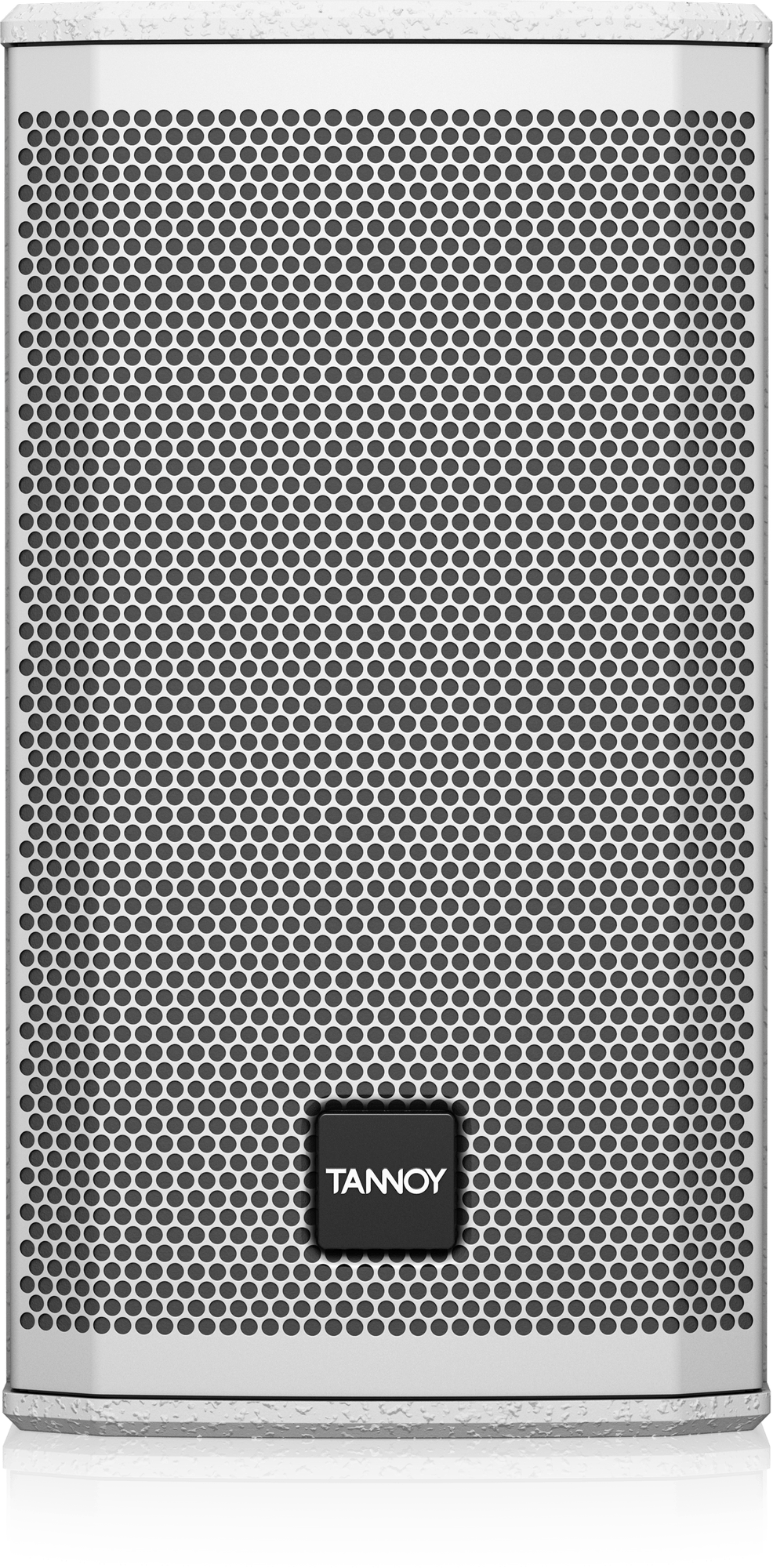

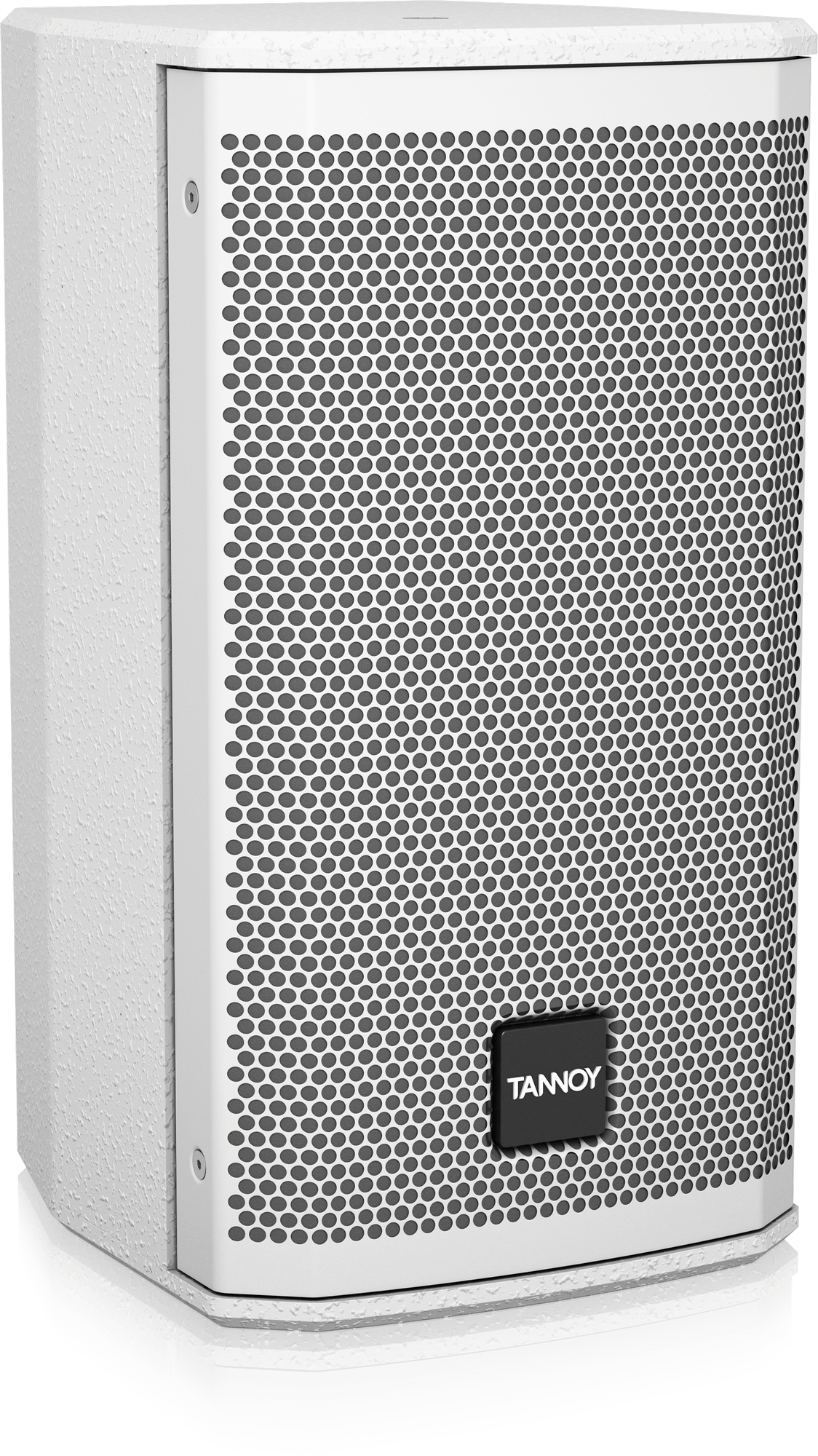

Tannoy VX 5.2 5″ Dual Concentric Loudspeaker 130W – White
1,346.10 AED Includes 5% UAE VAT
The VX 5.2-WH is the smallest in the Dual Concentric loudspeaker series, delivering exceptional performance with a compact design. Ideal for small-scale sound reinforcement, background music, and clear speech applications, its twin drivers and versatile mounting make it suitable for both standalone and larger system integration.
Model number
VX 5.2-WH
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
VX 5.2-WH Dual Concentric Full Range Loudspeaker
The VX 5.2-WH stands out as the smallest, yet remarkably powerful, Dual Concentric full range loudspeaker within the VX series. Despite its compact size, it delivers an outstanding performance-to-size ratio, making it an optimal choice for small-scale sound reinforcement, as well as demanding background music and speech applications where clarity and vocal reproduction are crucial. Its twin driver design and versatile mounting options make the VX 5.2-WH perfect for both standalone use and as a complement to larger systems.
Features
- Full range, multi-purpose loudspeaker ideal for portable and permanent installations
- Handles up to 130 Watts continuously with peak power of 520 Watts
- Equipped with a 5″ Dual Concentric driver for coherent phase and focused sound
- 5″ low-frequency driver that extends bass response
- Wide 120° H x 90° V dispersion ensures optimal coverage
- Suitable for front of house, floor monitor, delay, and stage front fill applications
- Rugged, vented plywood enclosure with a semi-matte white finish
- Durable powder-coated steel mesh grille
- M6 pole mount socket for portable PA setups
- Compatible with optional horizontal mounting yoke

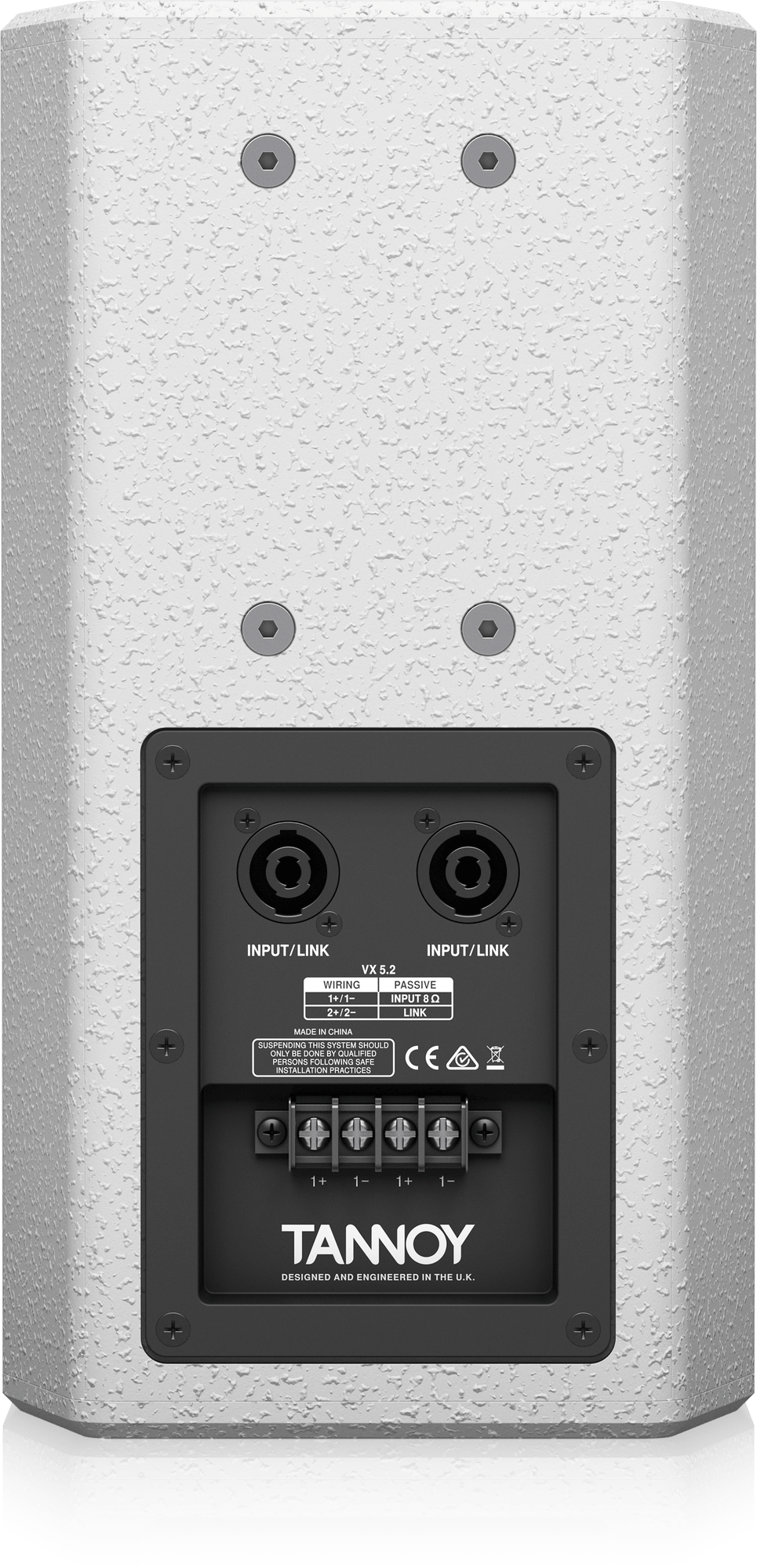

- Neutrik speakON* NL4 and barrier strip connectors facilitate easy input and link output
Specifications
| Specification | Details |
|---|---|
| Frequency response | 87 Hz – 35 kHz ±3 dB, 65 Hz – 45 kHz -10 dB |
| Nominal dispersion | 120° H x 90° V @ -6dB points |
| Directivity factor (Q) | 7.3 |
| Directivity index (DI) | 8.6 |
| Power handling (Passive) | 130 Watts continuous, 520 Watts peak |
| Sensitivity | 90 dB (1 W @ 1 m) |
| Maximum SPL (Passive) | 111 dB continuous, 117 dB peak |
| Impedance | 8 Ω |
| Crossover Type | Passive with dynamic HF protection |
| Components | 1 x 5″ LF driver, 1 x 5″ Dual Concentric driver |
| Connectors | 2x Neutrik speakON* NL4, 1x barrier strip terminals |
| Dimensions (H x W x D) | 334 x 181 x 201 mm (13.1 x 7.1 x 7.9″) |
| Net weight | 4.4 kg (9.7 lbs) |
| Construction | 12 mm (1/2”) plywood, vented and internally braced |
| Finish | Semi-matte black paint (white optional) |
| Grille | Powder-coated perforated steel |
| Flying hardware | M6 x 2 yoke bracket insert, M6 x 4 inserts |
