Tannoy VX 15HP 15″ PowerDual Loudspeaker 400W Full Range

Name: Tannoy VX 15HP 15" PowerDual Loudspeaker 400W Full Range
Brand: Tannoy
SKU: VX 15HP
Price: 4396.35 AED
Availability: InStock

Brand Tannoy

4,396.35 AED Includes 5% UAE VAT

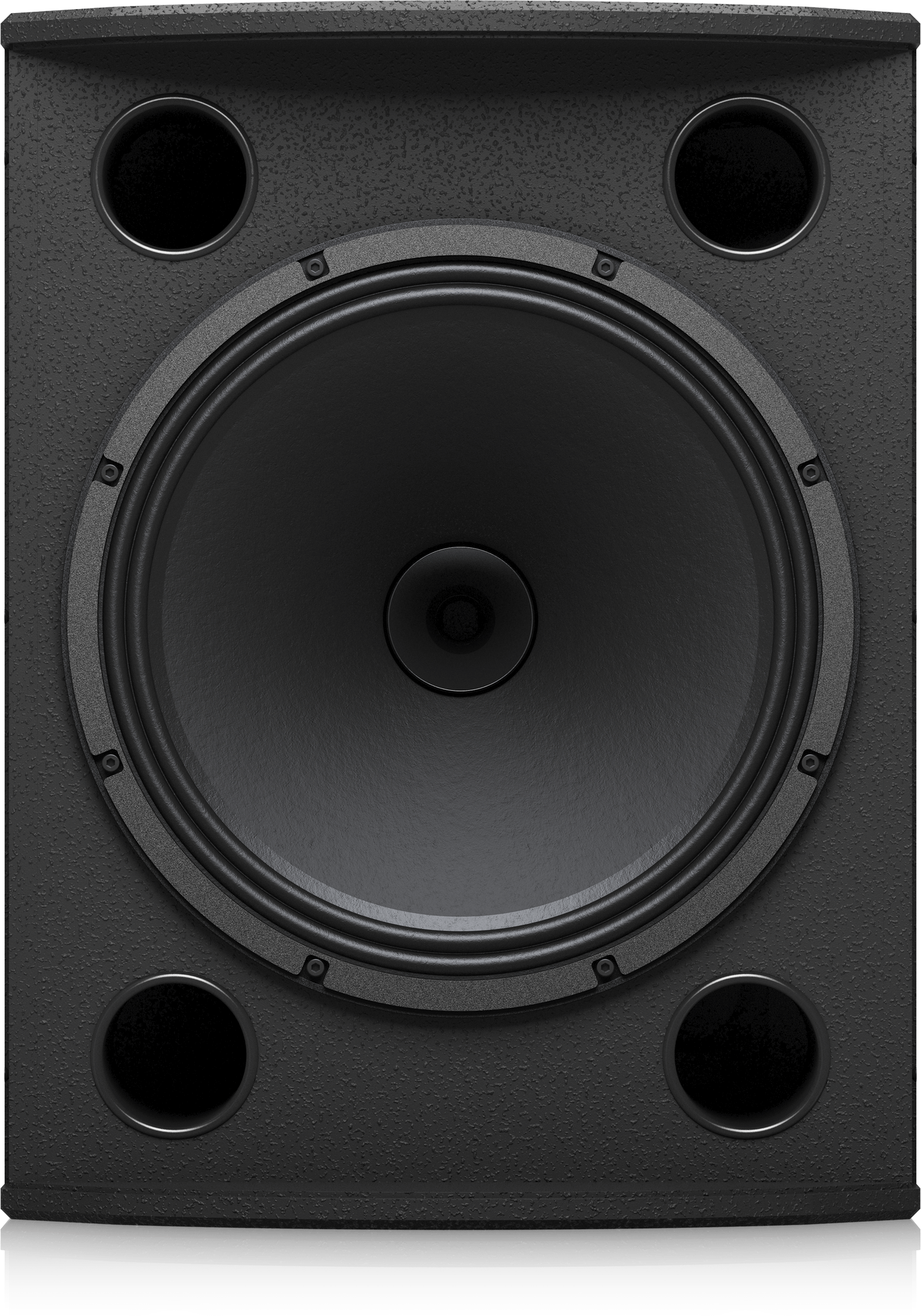

The VX 15HP features a single 380 mm (15") PowerDual driver housed in a compact, durable plywood cabinet, known for its high power output, sensitivity, and efficiency. Utilizing TANNOY’s point source, constant directivity PowerDual technology, it ensures smooth beam-width characteristics for even coverage and predictable system design. Its symmetrical dispersion allows for flexible vertical or horizontal mounting, making it ideal for both installed and portable applications. The VX 15HP also supports bi-amp operation and seamlessly complements larger systems.

Ask a question

Model number VX 15HP

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

TANNOY VX 15HP Multi-purpose Sound Reinforcement Loudspeaker

The TANNOY VX 15HP is expertly crafted with a single 380 mm (15″) PowerDual driver within a robust plywood cabinet, promising versatile and exceptional performance. This high power-handling version incorporates TANNOY’s exclusive point source, constant directivity PowerDual technology, ensuring superior power output, high sensitivity, and remarkable efficiency. The driver configuration delivers smooth beam-width characteristics for uniform coverage, aiding in reliable system design. Whether mounted vertically or horizontally, the symmetrical dispersion ensures premium sound quality, making the VX 15HP suitable for larger systems, installed, or portable applications. It can also be configured for bi-amp operation.

Features

Full range multi-purpose loudspeaker for both portable and installation applications
400 Watts continuous, 1,600 Watts peak power
15″ PowerDual full-range driver for point-source phase coherence
Precision 75° dispersion for optimal coverage and forward projection
Ideal for FOH, floor monitor, and side-fill applications
Configurable for bi-amp operation
Vented and internally braced plywood enclosure
Finished with durable semi-matt black paint

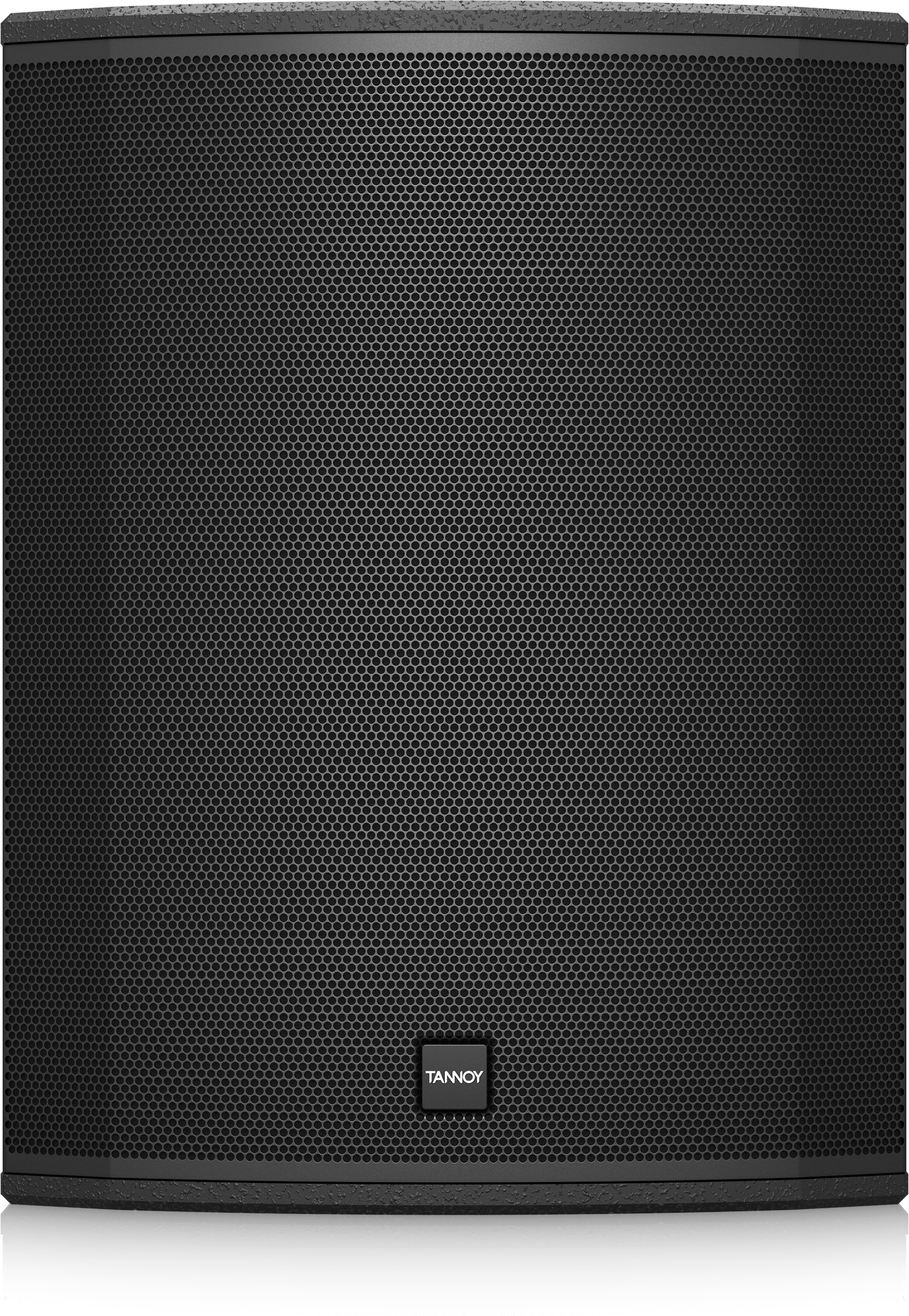

Rugged powder-coated perforated steel mesh grille
Blanking plate available for optional VTH pole mount
Optional horizontal and vertical mounting yokes (sold separately)
Ergonomic Integrip handles on top and bottom of the cabinet

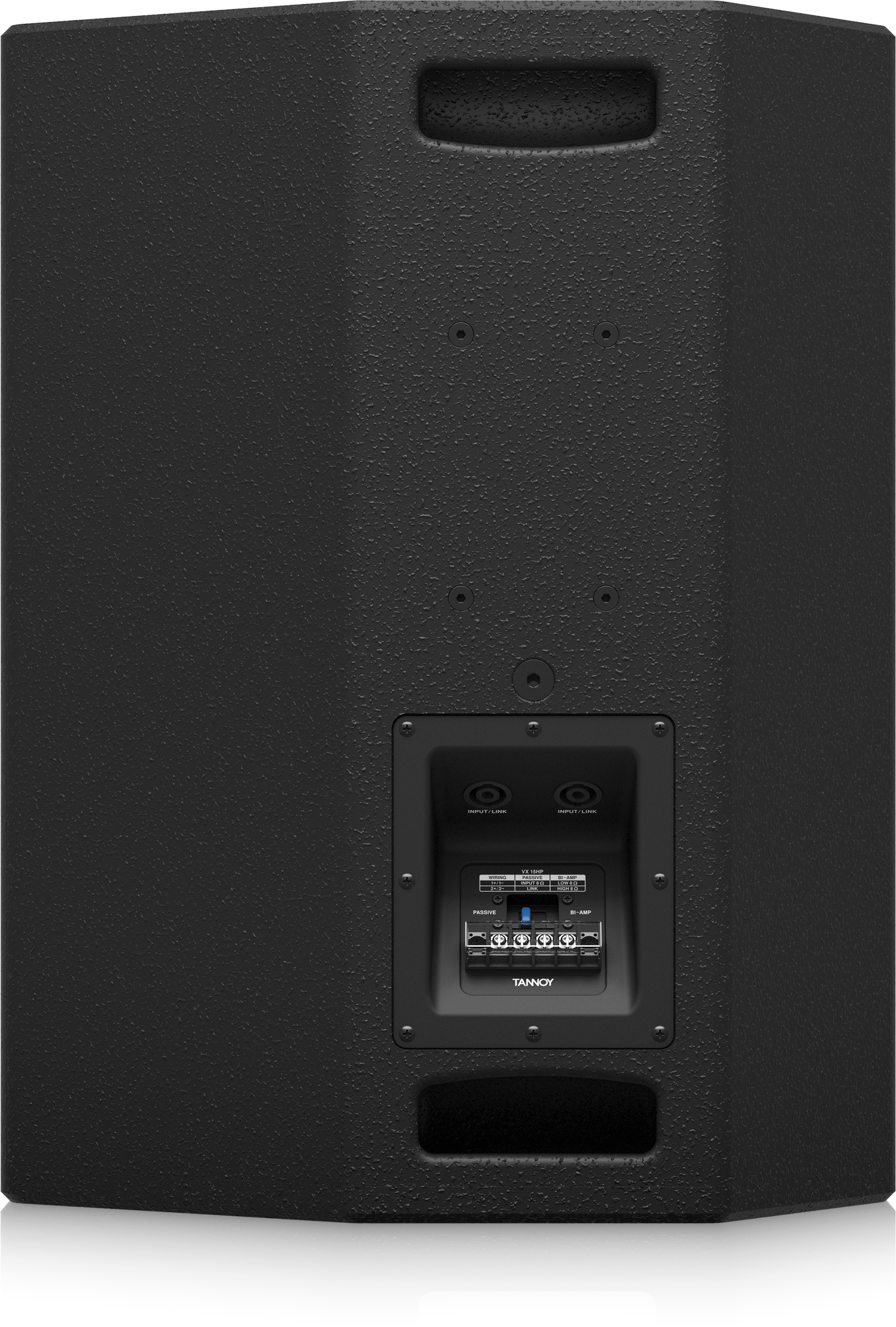

Neutrik speakON NL4 and barrier strip connectors for input and link output

Specifications

Specification	Details
Frequency Response	70 Hz – 25 kHz ±3 dB 58 Hz – 30 kHz -10 dB
Nominal Dispersion	75° conical @ -6 dB points
Directivity Factor (Q)	9.7
Directivity Index (DI)	9.9
Power Handling (Passive)	400 W continuous, 1,600 W peak
Power Handling (Bi-Amp)	LF: 400 W continuous, 1,600 W peak HF: 80 W continuous, 320 W peak
Sensitivity	99 dB (1 W @ 1 m)
Maximum SPL (Passive)	125 dB continuous, 131 dB peak
Maximum SPL (Bi-Amp)	LF: 126 dB continuous, 132 dB peak HF: 125 dB continuous, 131 dB peak
Impedance	Passive: 8 Ω Bi-Amp: 8 Ω (LF), 8 Ω (HF)
Crossover Type	Passive / Bi-amp switchable
Components	1 x 15″ (380 mm) constant directivity PowerDual
Connectors	2 x Neutrik speakON NL4 1 x barrier strip terminals
Wiring (Passive)	Pins 1+ / 1- Input, Pins 2+ / 2- Link
Wiring (Bi-Amp)	Pins 1+ / 1- LF, Pins 2+ / 2- HF
Dimensions (HxWxD)	591 x 451 x 421 mm (23.3 x 17.8 x 16.6″)
Net Weight	25.5 kg (56.2 lbs)
Construction	18 mm (3/4″) enclosure / 18 mm (3/4″) front, plywood, vented and internally braced
Finish	Semi-matt black paint (white optional)
Grille	Powder-coated perforated steel
Flying Hardware	M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Integrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry-standard brackets M6 x 4 inserts
