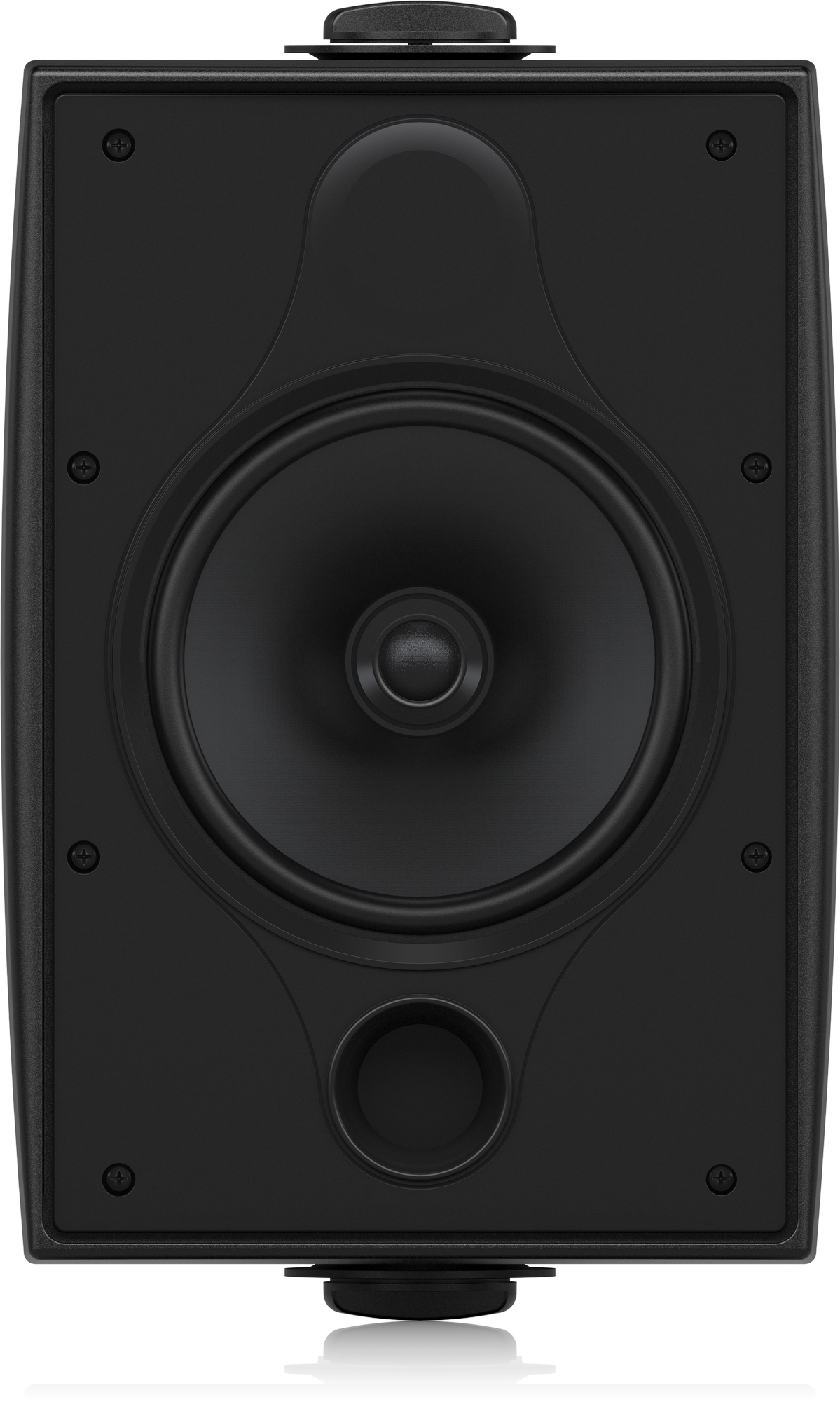

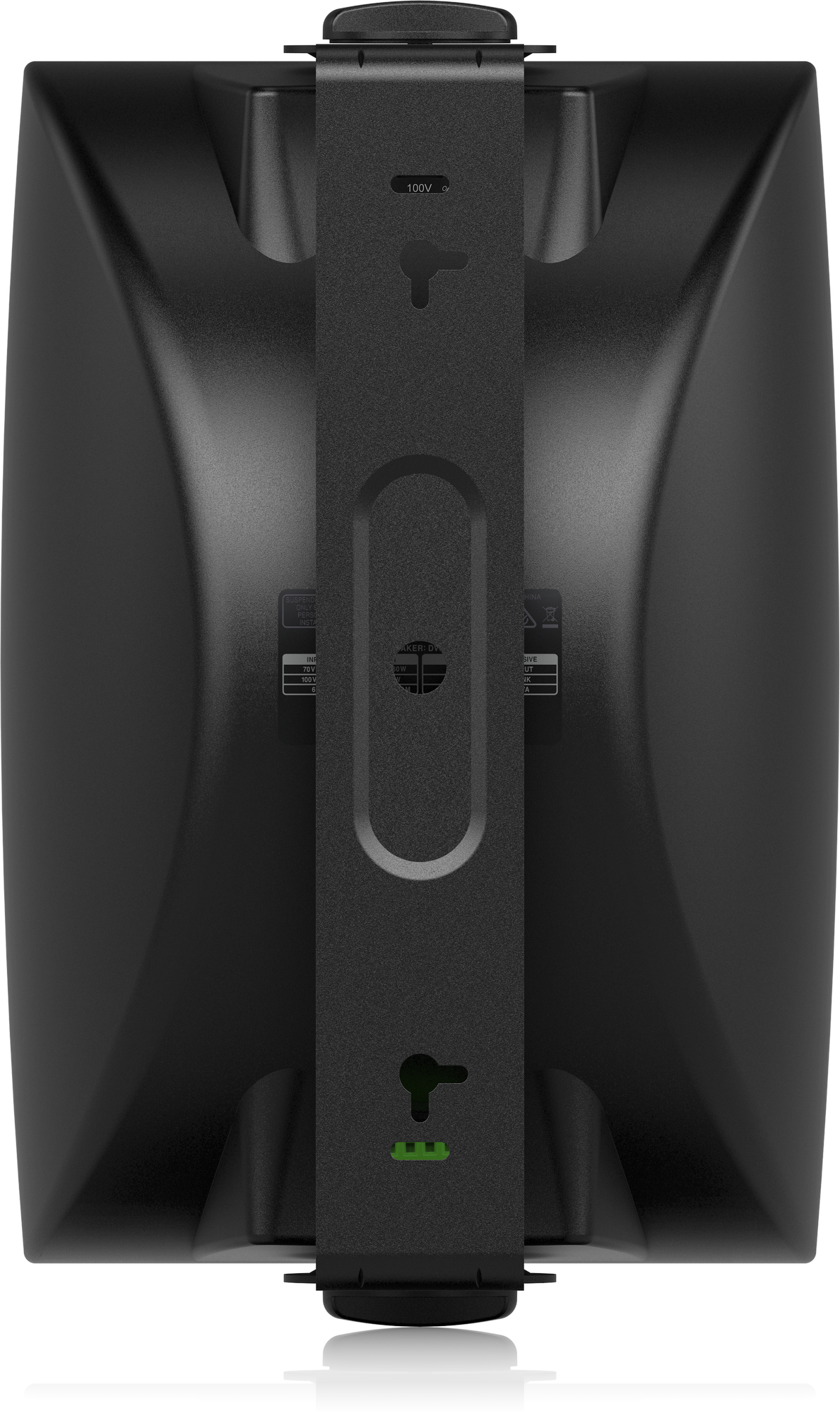

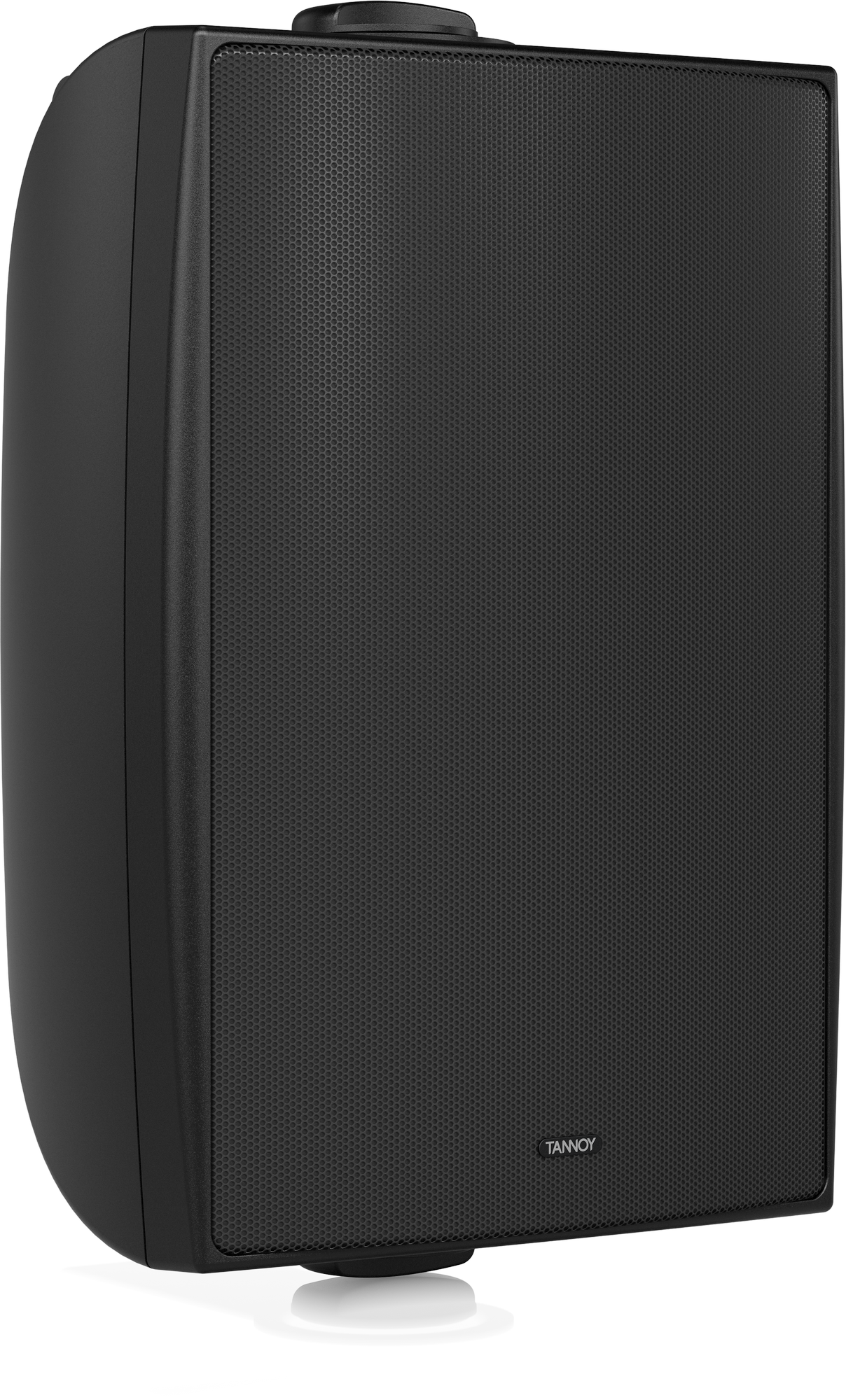

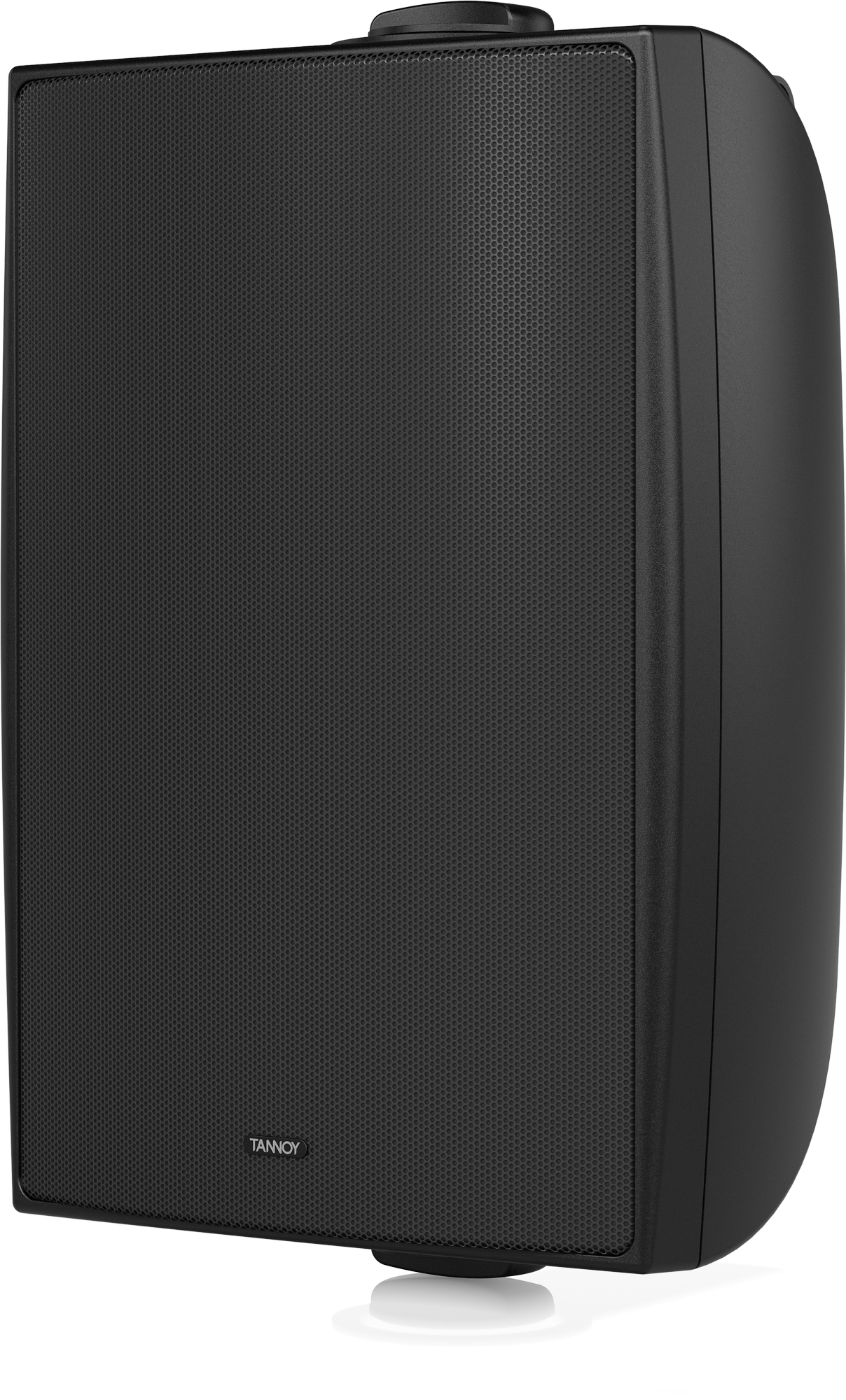

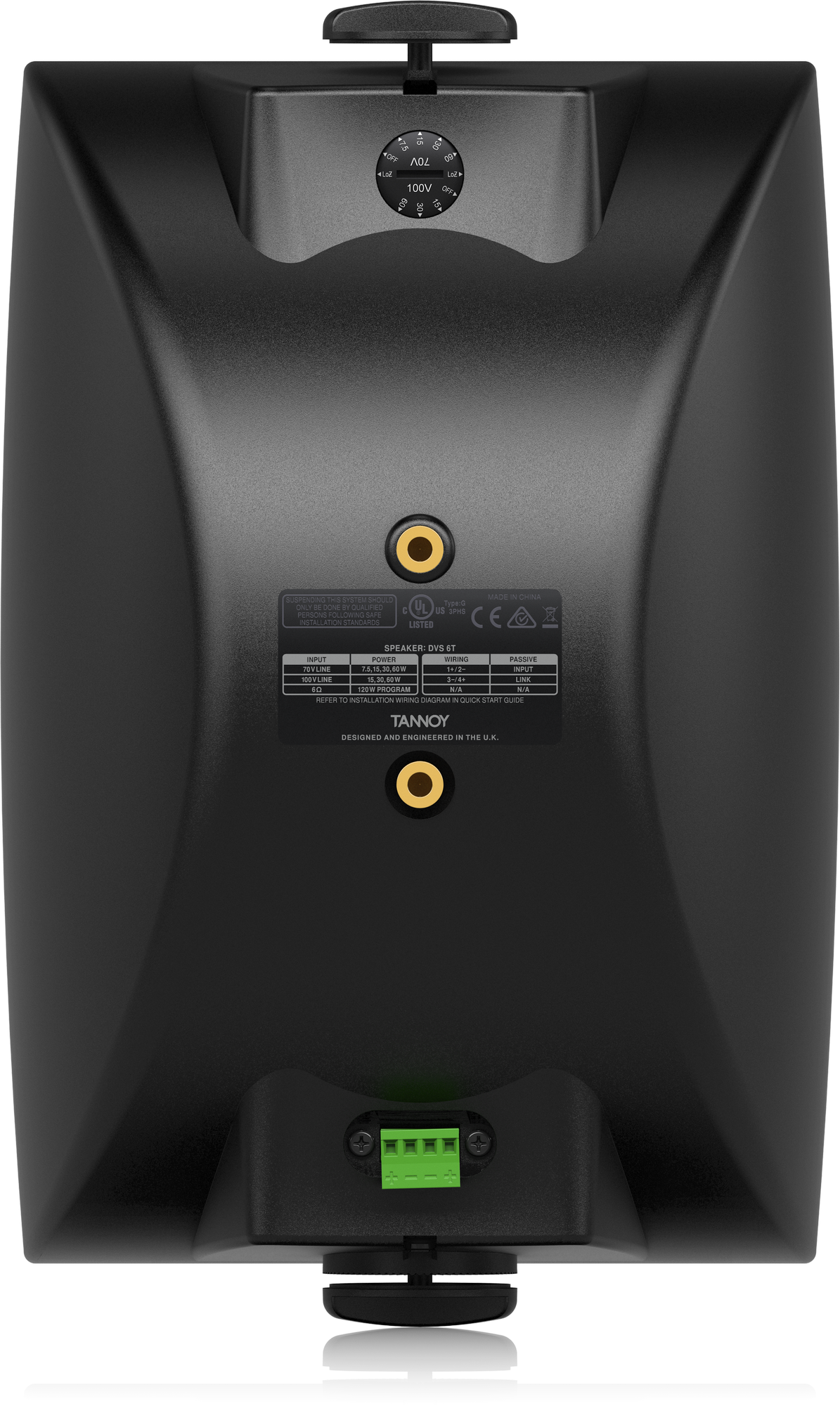

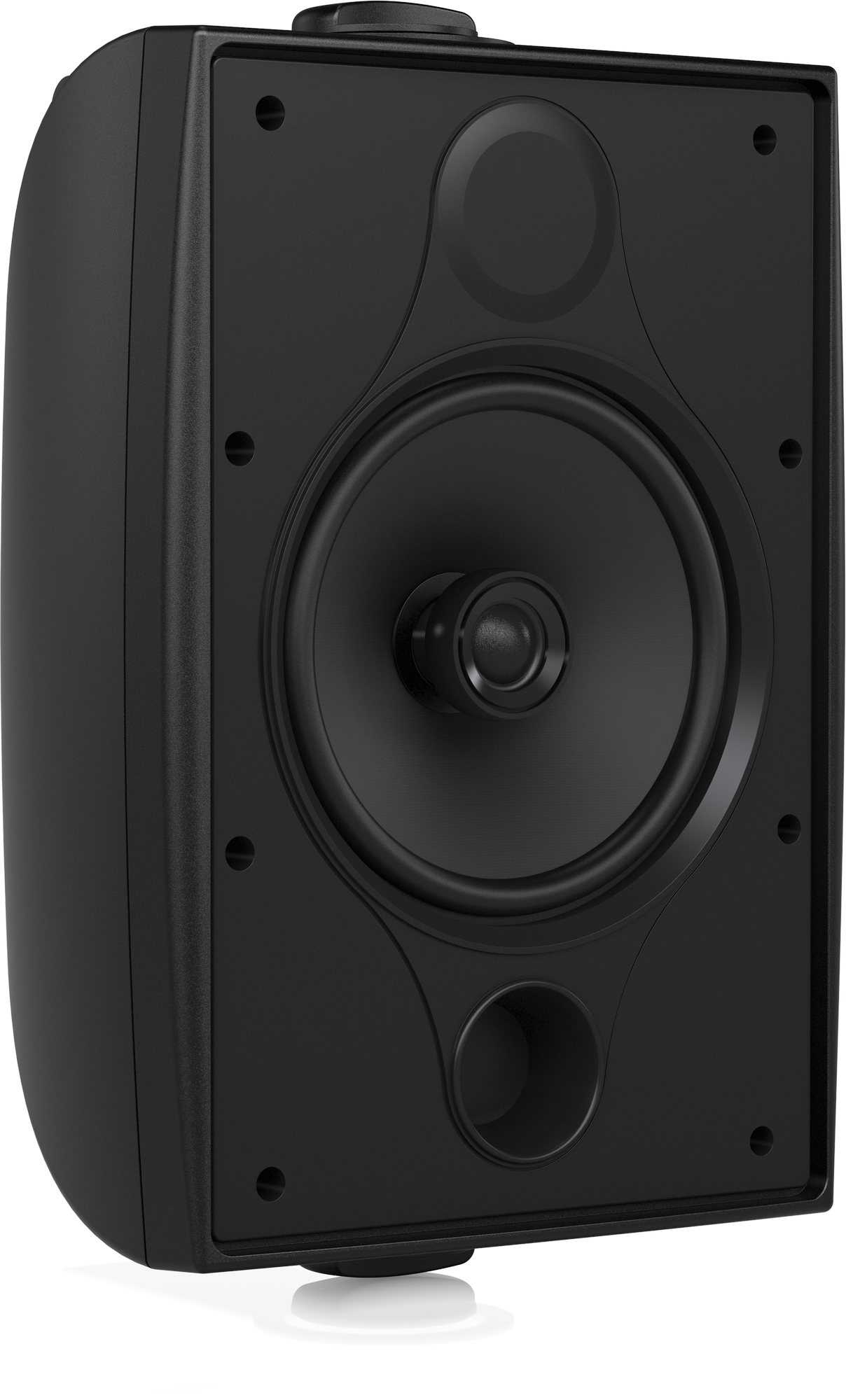

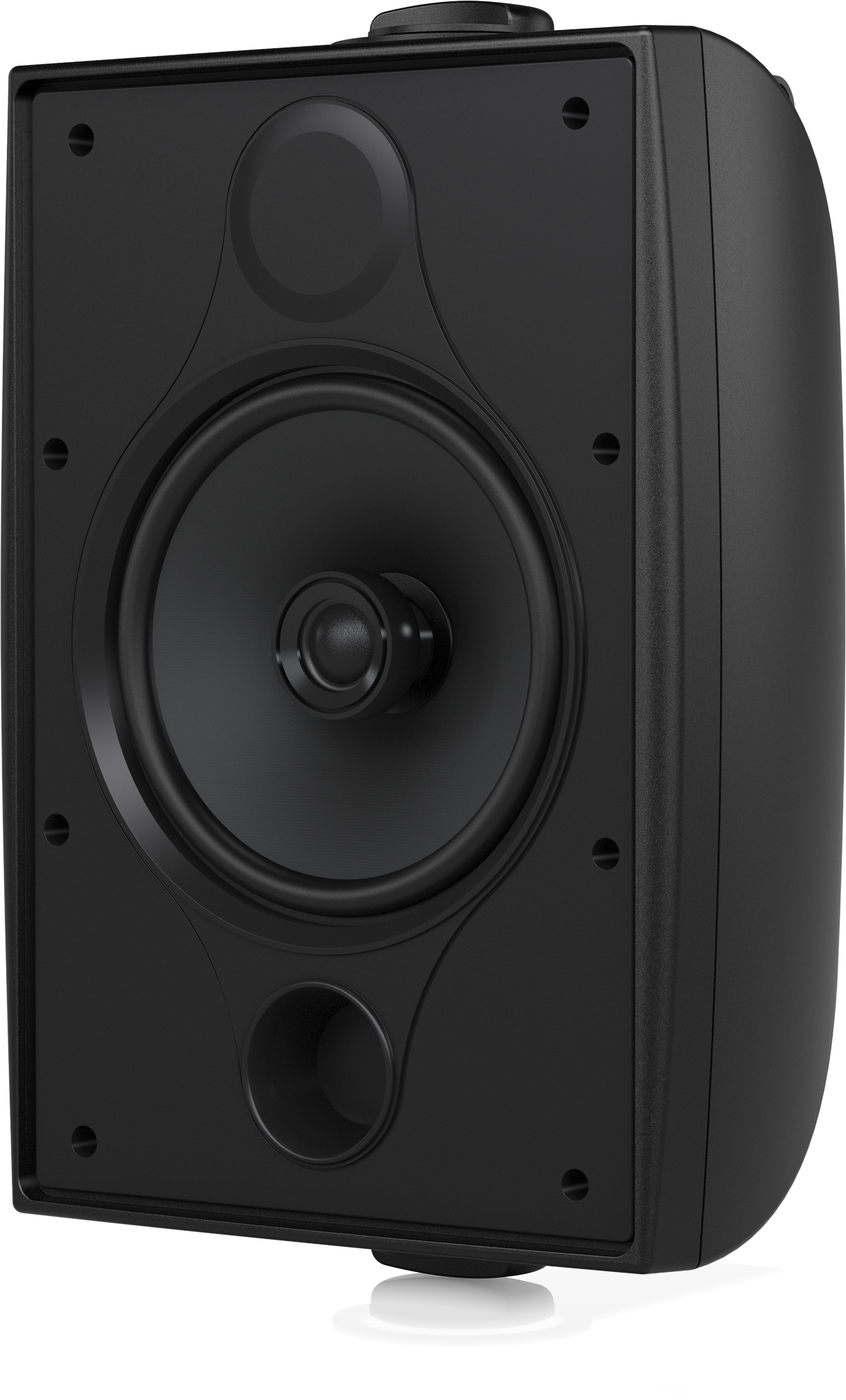

Tannoy DVS 6T 6-Inch Coaxial Surface-Mount Loudspeaker 240W with Transformer
767.55 AED Includes 5% UAE VAT
The DVS 6T is a 240-Watt ultra-compact surface mount loudspeaker designed for diverse sound reinforcement uses, offering excellent value and high-quality acoustic performance. Suitable for both stereo and mono background or foreground music in settings such as theme parks, hotels, restaurants, bars, retail stores, corporate AV environments, residential developments, and houses of worship.
Model number
DVS 6T
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6T is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6T is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship
Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 60 Watts continuous, 240 Watts peak power
- 6″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
- 90° constant directivity dispersion for optimum coverage
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70 V and 100 V line systems
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
- Painted perforated aluminium mesh grille with dust protection
- Yoke bracket included for ease of installation
- Phoenix* connectors input and link output
Specifications
Performance
| Frequency response (-3 dB)1 | 80 Hz – 20 kHz |
| Frequency response (-10 dB)1 | 65 Hz – 30k Hz |
| System sensitivity (1 W @ 1 m)2 | 88 dB |
| Dispersion (-6 dB) | 90 degrees conical |
| Transducers | Coaxial |
| Low frequency | 165mm (6.5″) mineral loaded cone material |
| High frequency | 20 mm (0.79″) |
| Crossover | 4.3 kHz – 2nd order LF, 2nd order HF |
| Directivity (Q) | 10.6 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 9.6 averaged 1 kHz to 10 kHz |
| Rated maximum SPL2 | 105 dB (average) 111 dB (peak) |
Transformer Version
| Transformer taps | – |
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL-1480, CE |
Power Handling
| Average | 60 W |
| Programme | 120 W |
| Peak | 240 W |
| Recommended amplifier power | 120 W @ 6 Ohms |
| Nominal impedance | 6 Ohms |
| Construction | – |
| Enclosure | ABS |
| Grille | Aluminium, painted |
| Connectors | Euroblock type removable locking connector with screw terminals with “loop through” facility |
| Supplied accessories | Yoke bracket |
| Packed quantity | 2 |
| Dimensions (H x W x D) | 340.5 x 212.2 x 216.5 mm (13.41 x 8.36 x 8.52″) |
