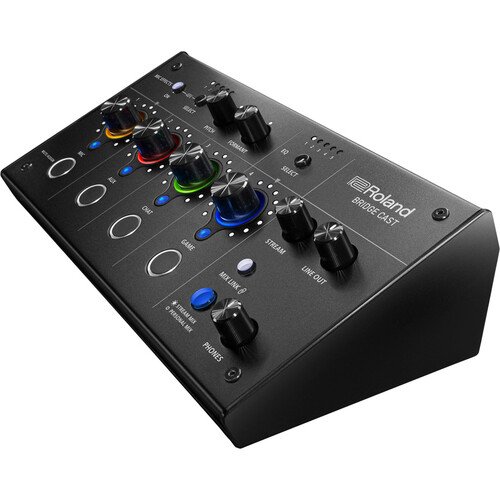

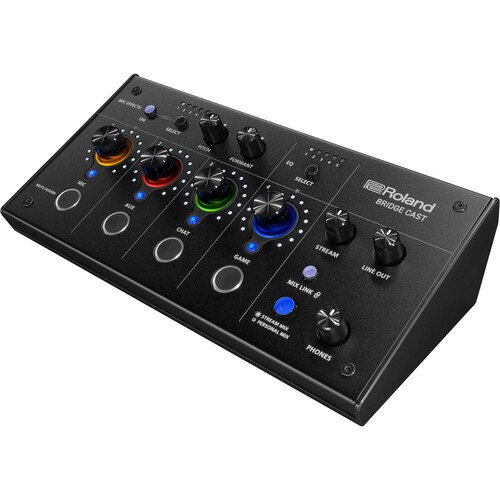

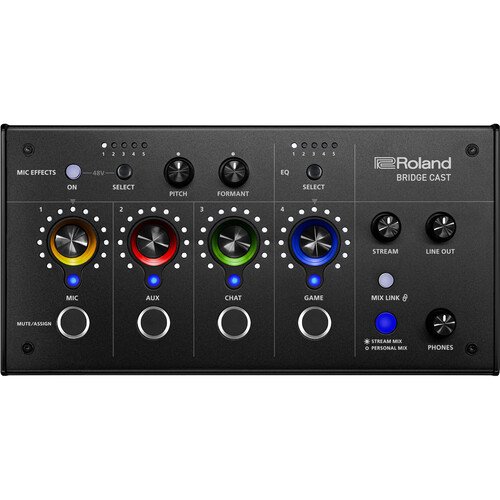

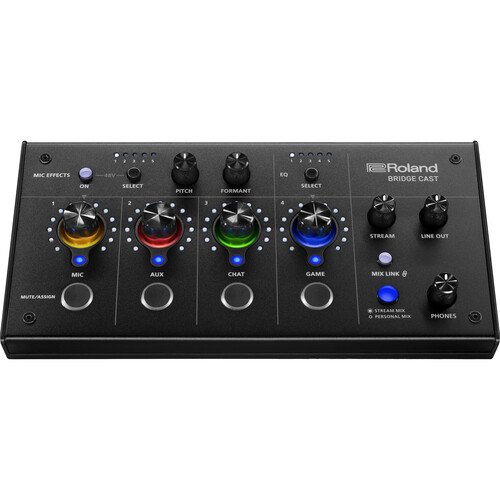

Roland BRIDGE CAST Dual-Bus Gaming Mixer

Name: Roland BRIDGE CAST Dual-Bus Gaming Mixer
Brand: Roland
SKU: BRIDGE CAST
Price: 1573.95 AED
Availability: InStock

Brand Roland

1,573.95 AED Includes 5% UAE VAT

Professional gamers need professional tools and that's why Roland is proud to introduce the BRIDGE CAST, an all-in-one, dual-bus, premium gaming mixer designed to take your livestreams and game audio to the next level. The BRIDGE CAST is USB-C bus powered and packed with unique and useful features including dual sound mixes, vocal transformer effects, music playback, 32-bit floating point DSP FX processing, up to 24-bit / 96 kHz sampling, and support for broadcast-grade mics and headsets.

Ask a question

Model number BRIDGE CAST

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

Professional gamers need professional tools and that’s why Roland is proud to introduce the BRIDGE CAST, an all-in-one, dual-bus, premium gaming mixer designed to take your livestreams and game audio to the next level. The BRIDGE CAST is USB-C bus powered and packed with unique and useful features including dual sound mixes, vocal transformer effects, music playback, 32-bit floating point DSP FX processing, up to 24-bit / 96 kHz sampling, and support for broadcast-grade mics and headsets.

The list of ways in which BRIDGE CAST can enhance your streaming and gaming experience is exhaustive, but some highlights include gaming-specific EQ presets to put a spotlight on critical gaming elements such as footsteps in FPS games, phantom power for high-end condenser mics, a quality preamp with a huge 75 dB of gain, and customizable faceplates and LED colors, just to name a few. Whether used as a control board for your streams, an interface for your recordings, or a full-fledged vocal-modulating instrument for creating engaging and unique content, the BRIDGE CAST elevates any session with sound as epic as your gameplay.

Features

For Gaming, Streaming & Content Creation
Dual Mix Bus: Stream Mix & Personal Mix
High-Gain Mic Preamp: 70 dB of Gain
32-Bit Floating Point DSP FX
Up to 24-Bit / 96 kHz Sampling
Line Out, Aux In, Headset In/Out
Vocal Transformer from Roland VT
Game Specific EQ Presets
Customizable Faceplate
USB-C Bus Powered

Specifications

Key Specs

Max I/O Capacity	6x Input / 5x Output
Number of Analog Input Channels	2 (1 Mono / 1 Stereo)
Number of Mic Preamps	1
Number of Analog Output Channels	2
Faders & Level Adjustment	No
Built-In Effects	2x Stereo Pitch Shift 1x Stereo Reverb 1x Stereo Delay 2x Stereo De-Esser

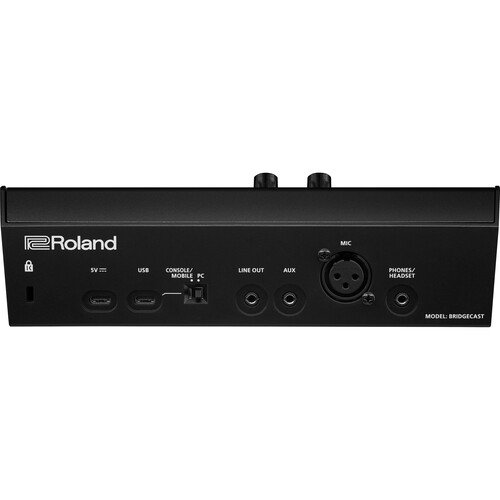

Analog Inputs	1x XLR 3-Pin Balanced Mic Input 1x 1/8″ / 3.5 mm TRS Stereo Aux Input
Analog Outputs	1x 1/8″ / 3.5 mm TRS Stereo Line Output (Post-Fader) 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output (Post-Fader)
Digital I/O	No
USB I/O	1x USB-C 2.0 (Audio Playback, Audio Streaming, Control, Host Connection, I/O, Multitrack Record) 1x USB-C 2.0 (Device Charging)
Rack Mountable	No

Mixer

Max I/O Capacity	6x Input / 5x Output
Number of Analog Input Channels	2 (1 Mono / 1 Stereo)
Number of Mic Preamps	1
Number of Analog Output Channels	2
Mix Routing	2x Stereo Bus
Groups	No
Presets	5x Preset (User)
Faders & Level Adjustment	No
Meters	Channel Meter: 4x Multi-Segment LED

Signal Processing

Input Polarity	Fixed
Dynamic Processing	Compressor, Gate
EQ	No
EQ Parameters	1x Shelf:
Graphic EQ	No
Filters	1x High-Pass
Solo/Mute	Mute per Input Channel, Bus
Channel Output/Source Monitoring	AFL, Post-Preamp, Post-EQ, Post-Compressor, Post-FX
Built-In Effects	2x Stereo Pitch Shift 1x Stereo Reverb 1x Stereo Delay 2x Stereo De-Esser
Real Time Analyzer	No

Digital Audio

Sample Rates	44.1 / 48 / 96 kHz
Bit Depth	AD/DA Conversion: 24-Bit
DSP	32-Bit Floating Point

Performance

Max Input Level	XLR Mic Input: +1.5 dBu 1/8″ / 3.5 mm Talkback Input: -8.5 dBu (Headset Mic) 1/8″ / 3.5 mm Aux Input: +2 dBu
Output Level	1/8″ / 3.5 mm Line Output: +8 dBu (Maximum) 1/8″ / 3.5 mm Headphone Output: +11 dBu (Maximum, Headphones or Headset)
Headphone Output Power	1/8″ / 3.5 mm: 78 mW per Channel into 32 Ohms 1/8″ / 3.5 mm: 35 mW per Channel into 250 Ohms
I/O Impedance	XLR Mic Input: 3.4 Kilohms 1/8″ / 3.5 mm Talkback Input: 1.3 Kilohms (Headset) 1/8″ / 3.5 mm Aux Input: 10 Kilohms 1/8″ / 3.5 mm Line Output: 1 Kilohm 1/8″ / 3.5 mm Headphone Output: 10 Ohms (Headphone or Headset)
Signal Generator	No

Connectivity

Analog Inputs	1x XLR 3-Pin Balanced Mic Input 1x 1/8″ / 3.5 mm TRS Stereo Aux Input
Analog Outputs	1x 1/8″ / 3.5 mm TRS Stereo Line Output (Post-Fader) 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output (Post-Fader)
Phantom Power	+48 V, Selectable On/Off
Digital I/O	No
MIDI I/O	No
USB I/O	1x USB-C 2.0 (Audio Playback, Audio Streaming, Control, Host Connection, I/O, Multitrack Record) 1x USB-C 2.0 (Device Charging)
Expansion Ports	No
Mobile App Compatible	Yes: iOS Only App Name: BRIDGE CAST Functionality: Adjust Settings, Remote Control, Setup
External Display I/O	No

Recording

Max Multitrack Recording	2 Tracks
File Format Support	Playback: PCM, WAV

Compatibility

OS Compatibility	Windows 10 or Later macOS 11 or Later 15 or Later
Mobile Device Compatibility	iPhone
Internet Connection	Required for Software/Driver Download
Required Hardware	USB 2.0 Port, USB Cable
