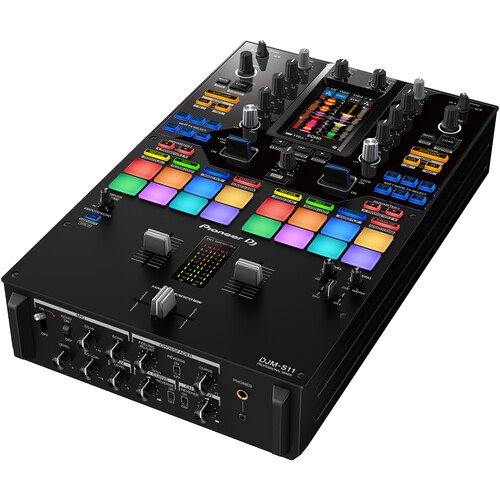

Pioneer DJ DJM-S11 Mixer

The Pioneer DJ DJM-S11 is a professional 2-channel, 4-deck battle mixer engineered for Serato DJ Pro and rekordbox, ideal for high-energy environments such as clubs, concerts, and live events. This mixer builds upon its predecessors with significant enhancements, ensuring peak performance for every DJ.

Key Features

Specification Details
Channels 2 Stereo, 1 Mic, 1 Aux
Faders 2 Channel Level, 1 Crossfader
Meters 2 x 9-Segment LED Channel Meters, 1 x 9-Segment LED Main Meter
Display 4.3″ Color LCD Touchscreen
Sample Pads 8 Assignable per Deck
EQ Hi, Mid, Low
Performance Controls Brake, FX, High-Pass Filter, Low-Pass Filter, Pitch Control, Reverse
Built-In Effects Delay, Echo, Phaser, Reverb
Bit Depth 32-Bit (D/A Conversion)

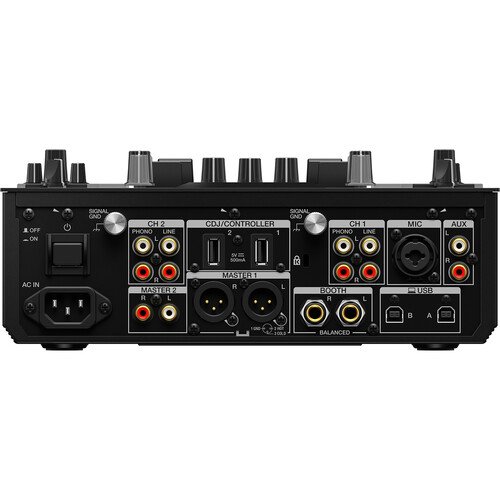

Audio Inputs 2 x Stereo RCA TS, 2 x Stereo RCA TS, 1 x Combo XLR-1/4″ Mic, 1 x Stereo RCA TS Aux
Audio Outputs 2 x XLR 3-Pin Balanced Master, 1 x Stereo RCA TS Unbalanced Master, 2 x 1/4″ TRS Balanced Booth, 1 x 1/4″ TRS, 1 x 1/8″ TRS Headphone
USB 2 x USB Type-B
Wireless Connectivity None
Frequency Response 20 Hz to 20 kHz
Input Level CD/Line: -12 dBu, Phono: -52 dBu, Mic: -57 dBu, Aux: -12 dBu
I/O Impedance CD/Line Input: 47K Ohms, Phono Input: 47K Ohms, Mic Input: 3K Ohms, Aux Input: 47K Ohms, XLR Master Output: ≤390 Ohms, RCA Master Output: ≤390 Ohms, Booth Output: ≤390 Ohms, Headphone Output: ≤10 Ohms
Load Impedance Master Output: 10K Ohms, Booth Output: 10K Ohms, Headphone Output: 32 Ohms
Crosstalk Line: 82 dB
SNR USB: 115 dB, CD/Line: 105 dB, Phono: 90 dB, Mic: 80 dB, Aux: 90 dB
THD USB: 0.003%, CD/Line: 0.005%
Included Software rekordbox
Compatible Software Serato DJ
OS Compatibility Windows, macOS
RAM Requirements 4 GB
Display Resolution 1280 x 720
Power Requirements AC Input
AC Input Power 100 to 120 VAC, 50/60 Hz
AC Power Connector IEC
Power Consumption 34 W
Dimensions (W x D x H) 10.5 x 17.8 x 4.3″ / 26.7 x 45.2 x 10.9 cm
Weight 11.5 lb / 5.2 kg
Package Weight 17.24 lb
Box Dimensions (LxWxH) 21.6 x 15.1 x 10″
