Midas L6 500 Series Portable Chassis for 6 Modules with Rackmount Kit
1,286.25 AED Includes 5% UAE VAT
The LEGEND L6 500 Series Portable Chassis allows for customizable audio processing with space for up to six single-width modules, advanced routing, and a universal switch-mode power supply. It includes a rackmount kit for 19" racks and supports all 500 series-compatible modules and plug-in cards for versatile use.
Model number
L6
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

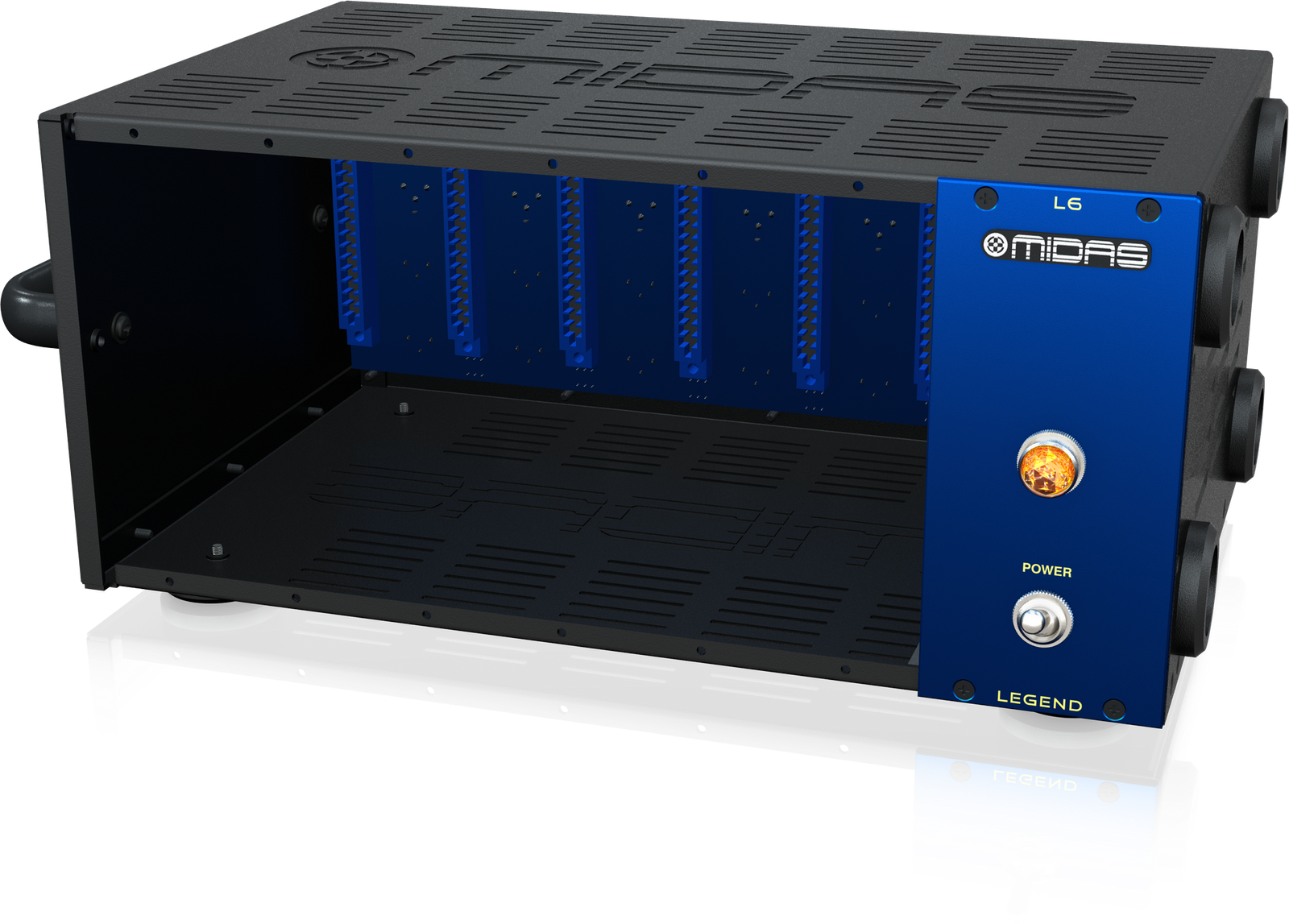

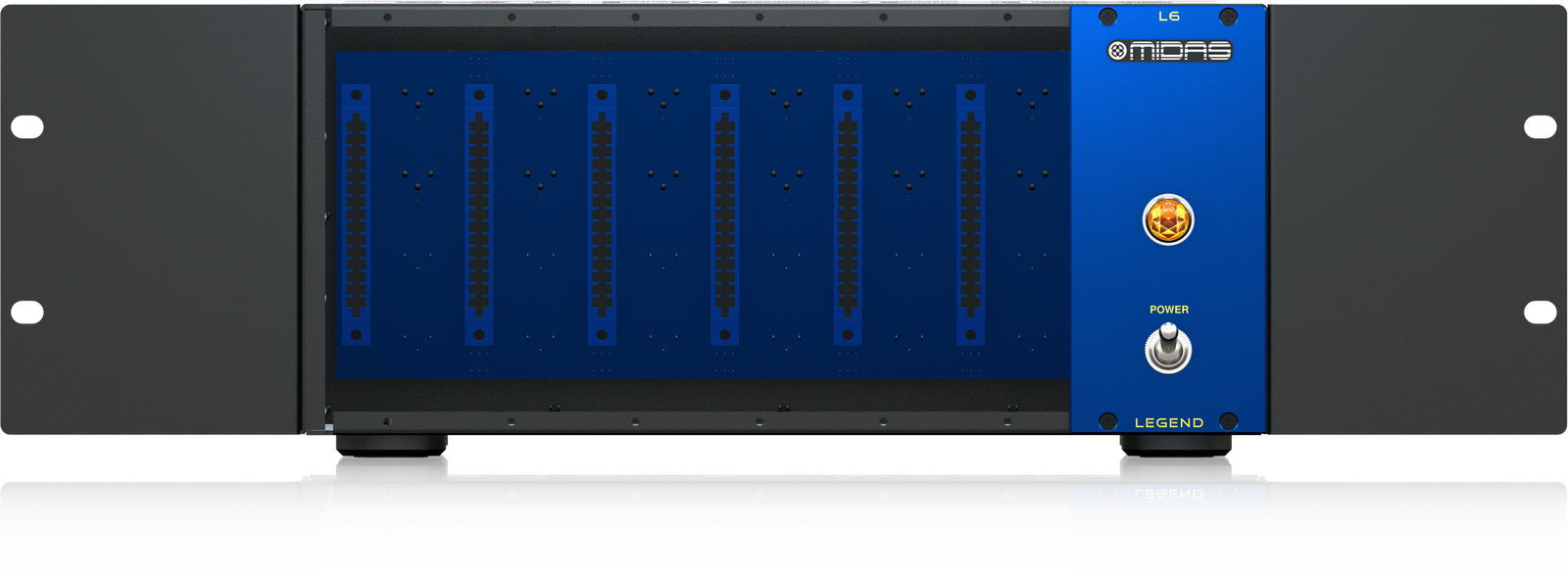

LEGEND L6 500 Series Portable Chassis
The LEGEND L6 500 Series Portable Chassis allows you to create a custom audio processing setup by combining various modules to fit your needs. It can house up to 6 single-width modules and features advanced audio routing to reduce cable clutter. Its universal switch-mode power supply ensures reliable performance worldwide. The chassis can be used as a standalone device or installed in a standard 19″ rack with the included rackmount kit. It’s compatible with all 500 series modules and third-party plug-in cards, making it a versatile addition to any audio processing setup.
Features
- 500 series portable chassis for 6 single-width modules
- Advanced audio routing reduces cabling complexity
- Audio output link switches provide cable-free daisy-chain connections between modules
- Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking

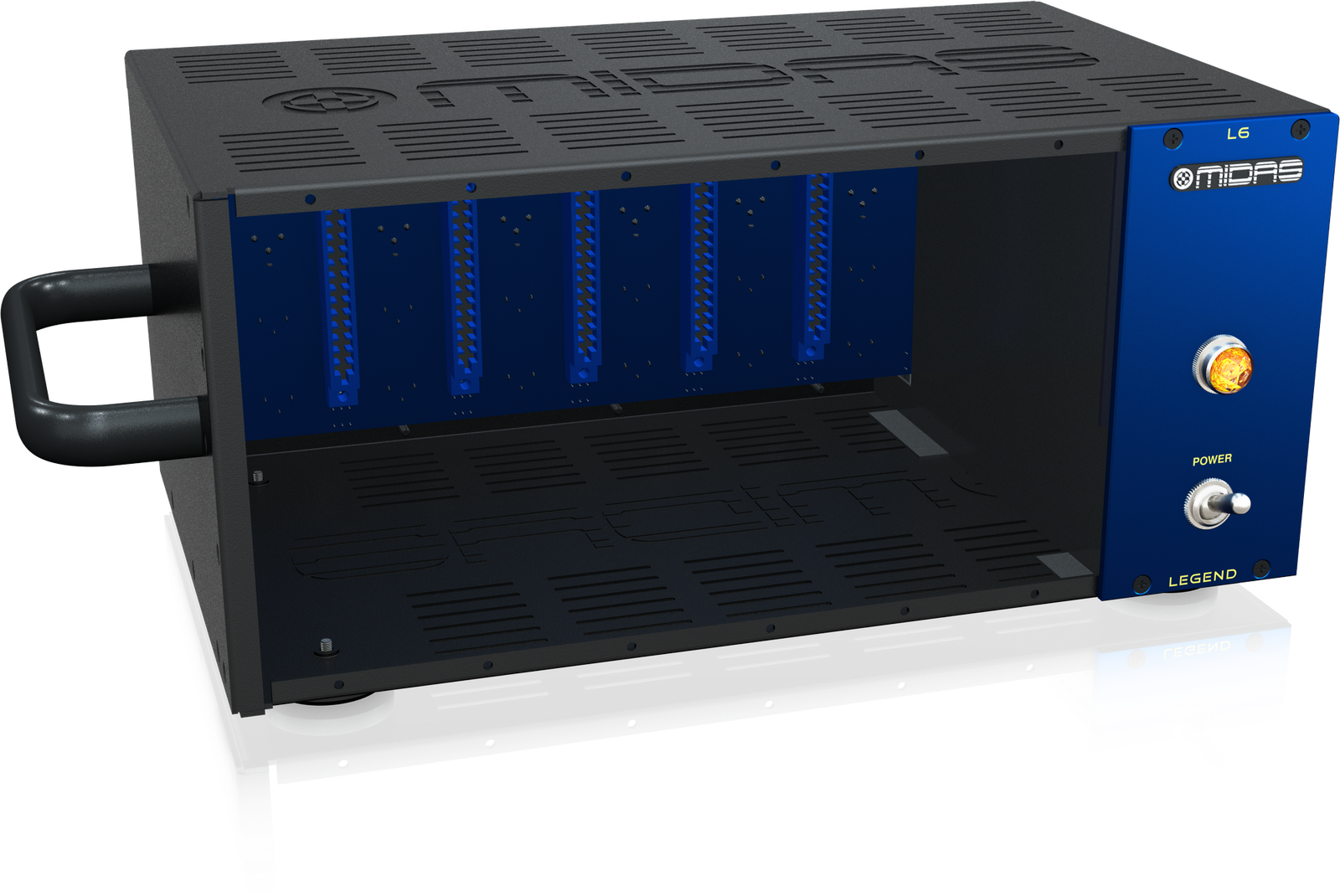

- Rugged free-standing chassis with convenient carrying handle for portable applications

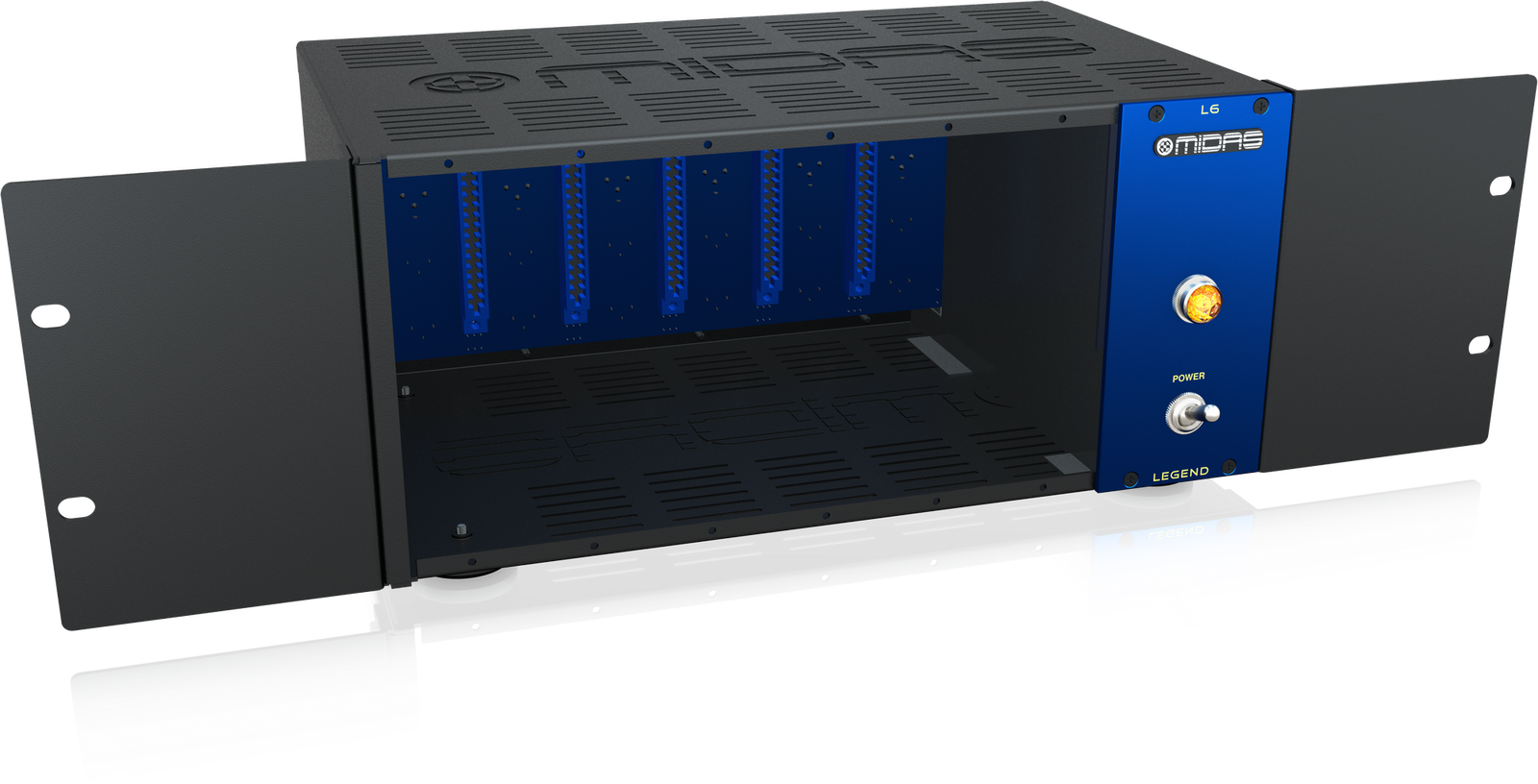

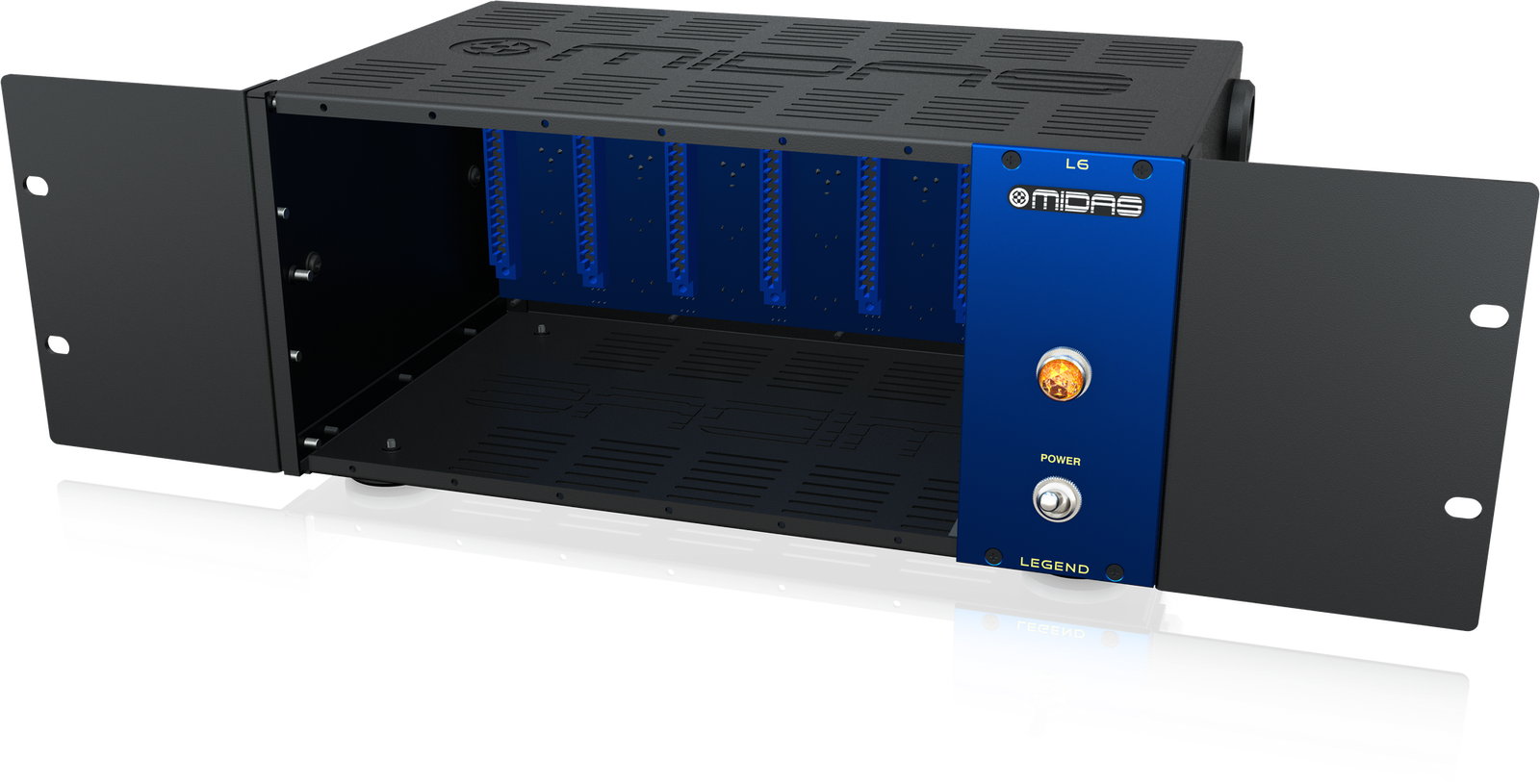

- 3U 19″ rackmount kit allows installation in recording studios and live touring racks (included)
- Earth lift switch eliminates any ground loop problems
- High power auto-ranging universal switch-mode power supply for use worldwide
- Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ +48 V

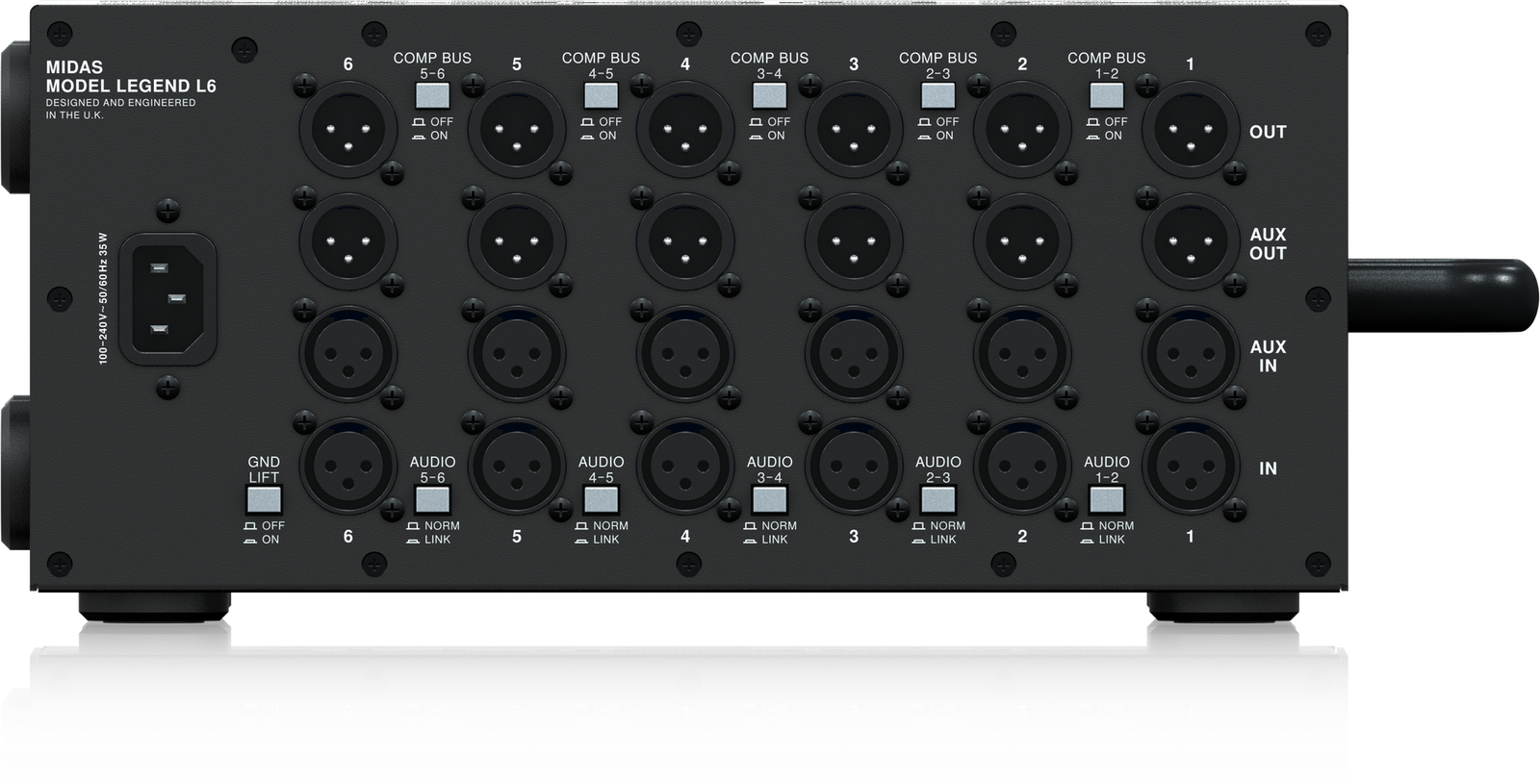

- Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors
- Premium quality components throughout for crystal-clear audiophile signal path
Specifications
| Specification | Details |
|---|---|
| Number of Slots | 6 |
| Inputs | 6 x XLR, 6 x XLR (aux) |
| Outputs | 6 x XLR, 6 x XLR (aux) |
| Module Power | ±16V DC 3.2A, +48V DC 300mA |
| Power Supply | Built-in, standard IEC AC cable |
| Height | 5.25″ |
