Midas Digital Console HD96-24-CC-TP with 144 Channels, 120 Mix Buses, 96 kHz
136,844.40 AED Includes 5% UAE VAT

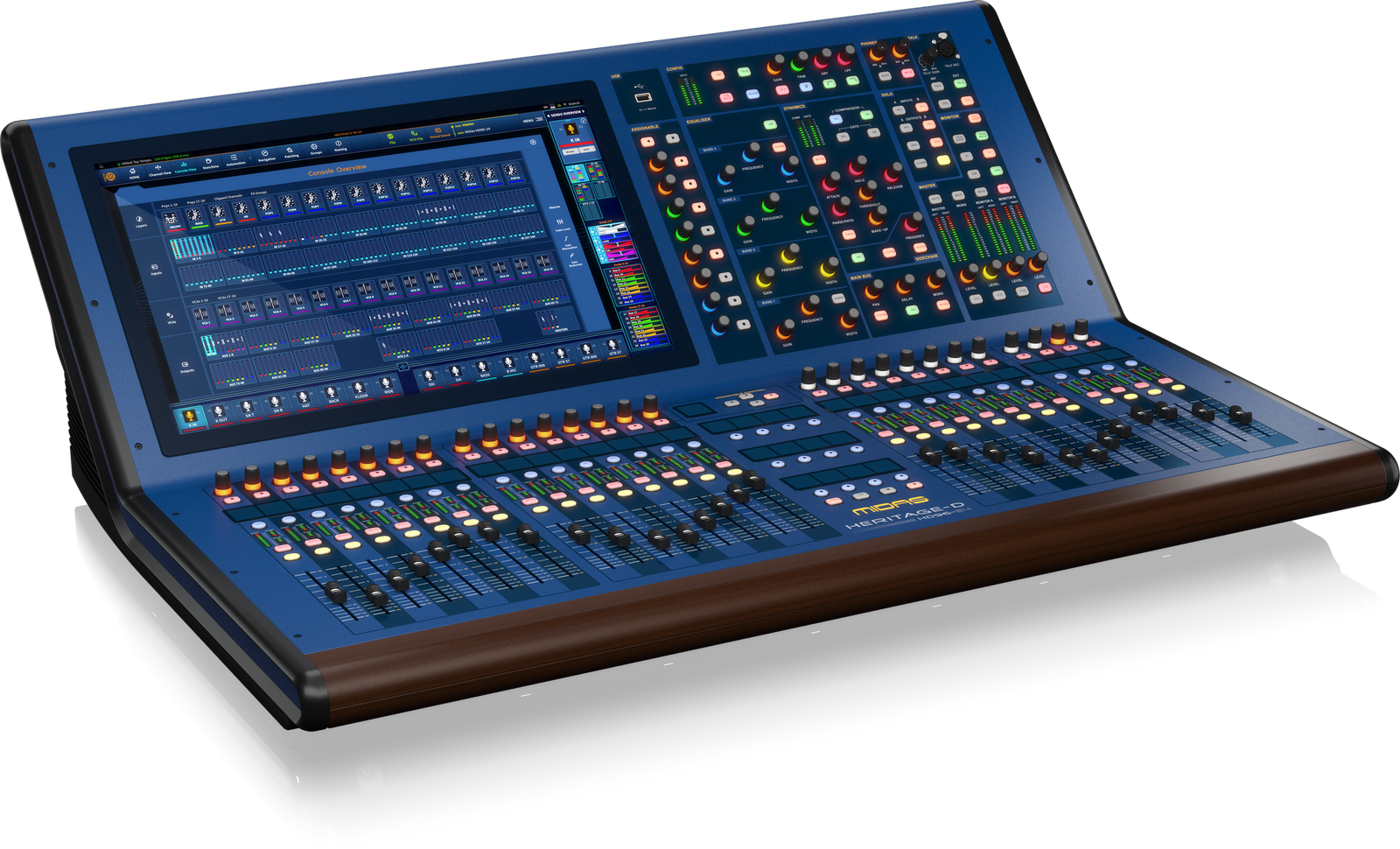

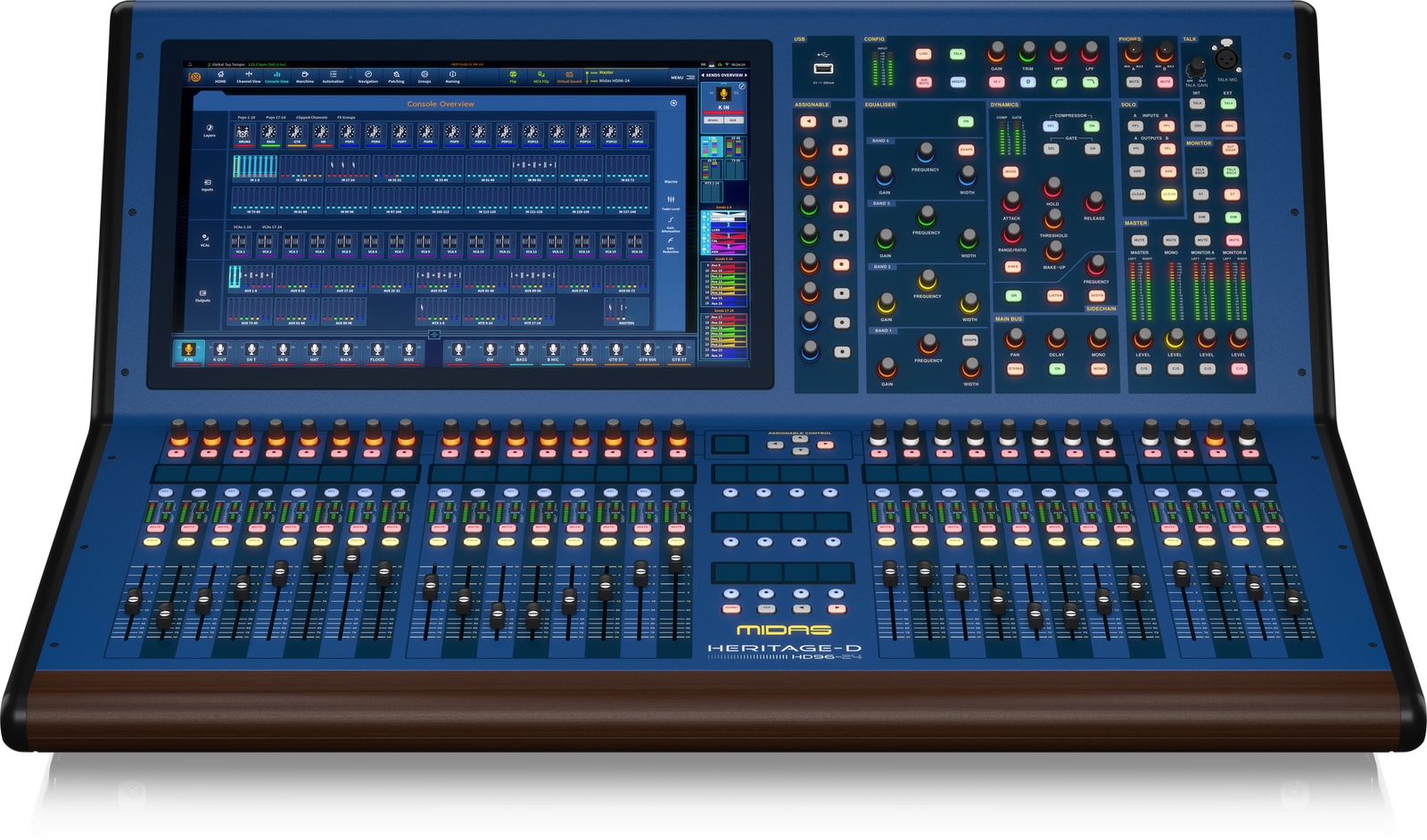

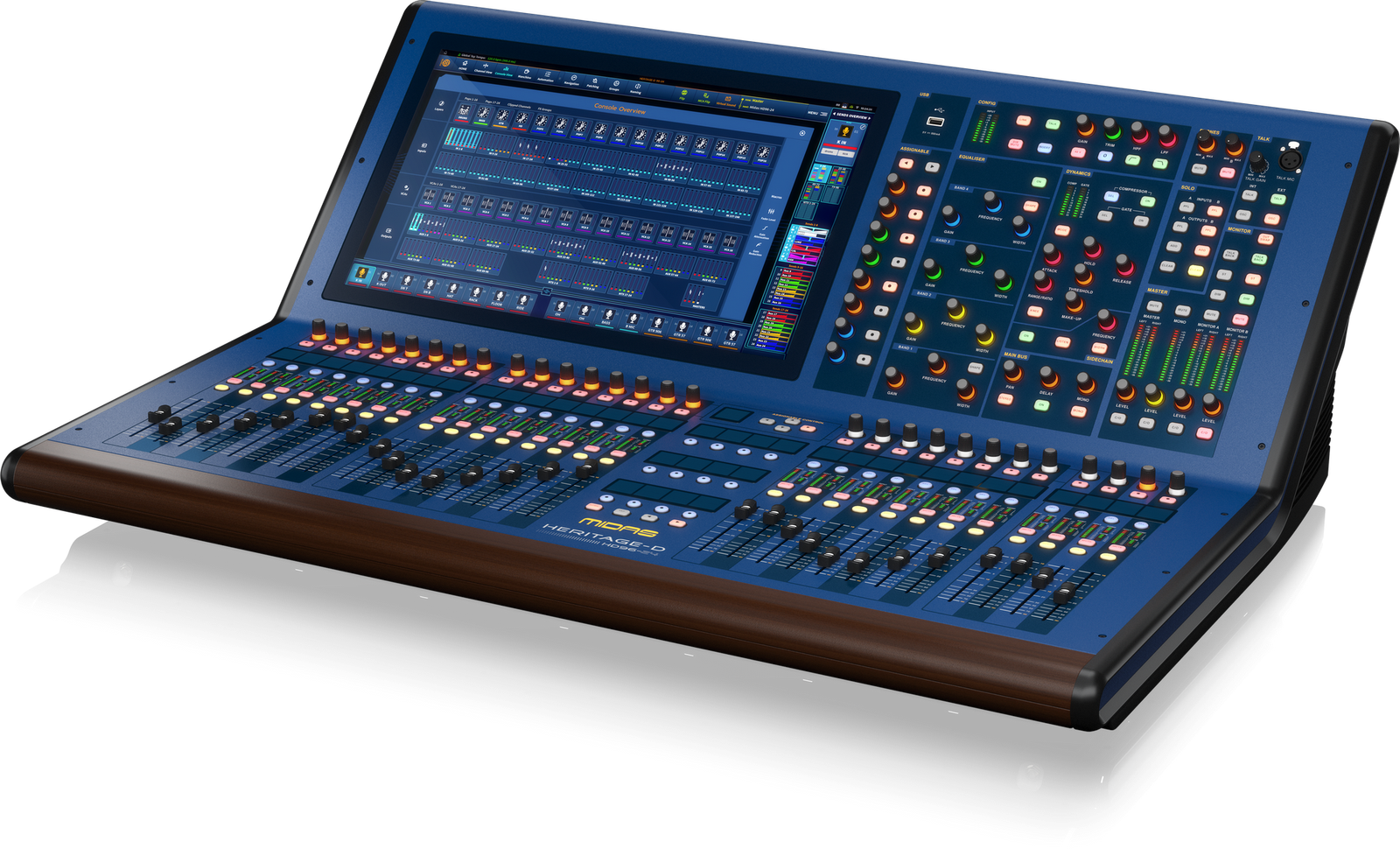

The Midas HD96-24-CC-TP is a high-end, 144-input digital mixing console from the Heritage D series, featuring eight Midas preamps, 120 time-aligned mix buses, and 24 VCA groups. It offers 28 motorized faders, touch-sensitive controls, and a 21-inch multi-gesture touchscreen. Built with advanced HyperMAC and AES50 networking, dual Ultranet ports, wireless transceiver module, and dual redundant power supplies, this mixer comes in a durable road case made from marine-grade plywood and aluminum.
Model number
HD96-24-CC-TP
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Part of the Heritage D series, the Midas HD96-24-CC-TP is a world-class, 144-input digital mixing console. This mixer is jam-packed with features, including eight award-winning Midas preamps, 120 time-aligned, phase-coherent mix buses, 24 VCA groups, and top-tier digital effects. The HD96-24-CC-TP makes taking command of your mix a piece of cake, with 28 motorized 100mm faders, interpolated touch-sensitive controls, and a 21-inch display with an advanced multi-gesture touchscreen interface. This mixer teems with state-of-the-art digital tech, boasting HyperMAC and AES50 networking, dual Ultranet ports, and a dual network bridge format converter. An integrated wireless transceiver module and dual redundant power supplies round out the HD96-24-CC-TP’s impressive feature set. The Heritage D HD96-24-CC-TP also comes with a tour-grade road case that boasts marine-grade plywood and aluminum construction.
Features
- Live performance digital control centre with up to 144 simultaneous input channels @ 96 kHz sample rate
- 120 time-aligned and phase-coherent mix buses
- 21″ full color TFT display screen with capacitive touch sensing
- Advanced and multi-gesture touchscreen user interface
- Award-winning Midas microphone preamplifiers
- Over 600 inputs and outputs into the surface
- Dual network bridge format converter with up to 128 bidirectional channels and asynchronous sample rate conversion

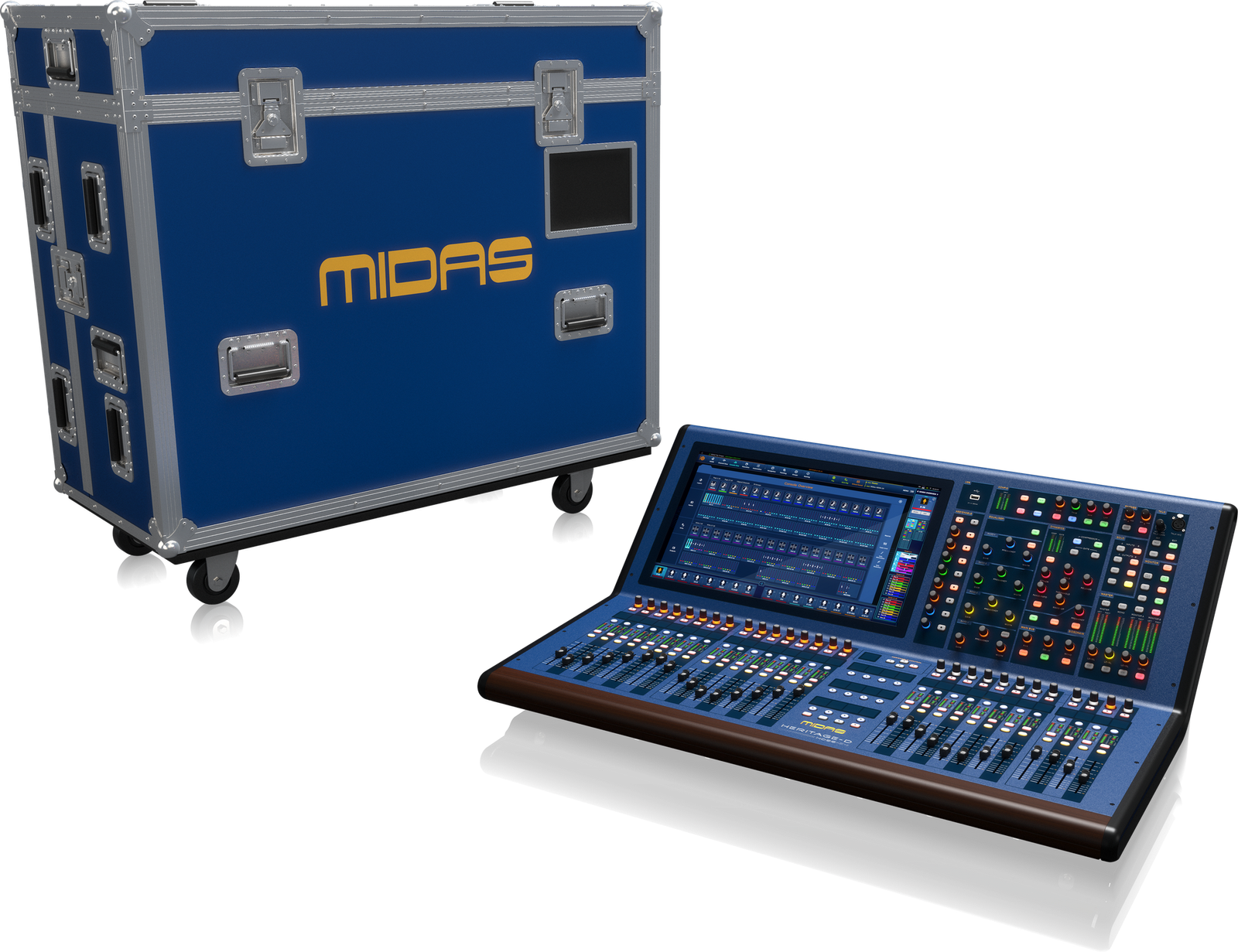

- Touring grade road case featuring marine-grade plywood, aluminum extrusions and composite density protective foam
- 24 VCA (variable control association) and 24 POPulation groups
- Up to 24 multi-channel digital signal processing effects engines with up to 96 effects
- Integrated Wireless transceiver module
- Dual ULTRANET Ports providing 32 additional digital outputs
- 28 Midas PRO motorized 100 mm faders
- Fully interpolated touch sensitive controls
- Dual redundant auto-ranging universal switch-mode power supplies
Specifications
Processing
| Input processing channels | 144 flexi channels |
| Output processing channels | 96 flexi aux outputs, 24 matrices, stereo bus, mono bus |
| Point-to-point routing matrix | 622 x 652 |
| Signal processing | 64-bit floating point |
| D/A converter | 24-bit, 96 kHz and 128 times oversampling |
| A/D converter | 24-bit, 96 kHz and 128 times oversampling |
| Sampling frequency | 96 kHz |
| I/O latency (surface input to output) | 1.34 ms |
| Input audio processing |
Dual-slope high and low-pass filters True phase filter control 4-band parametric EQ with 3 shelf modes 4-mode creative input compressors Input gates or ducker Insert point on/off with processing order change Direct output with adjustable level and processing pick of point Delay-compensated aux return mode on inputs 5 x tap-off points per send |
| Output audio processing |
Output 4-band parametric EQ with shelving/HP/LP options 4-mode creative output dynamics Insert point on/off with processing order change Direct input with adjustable level and processing tap-off point |
| Mixing control assistance |
12 x talk groups 12 x mute groups 24 x surface POPulation groups 24 x VCA associated population groups Scene snapshot automation |

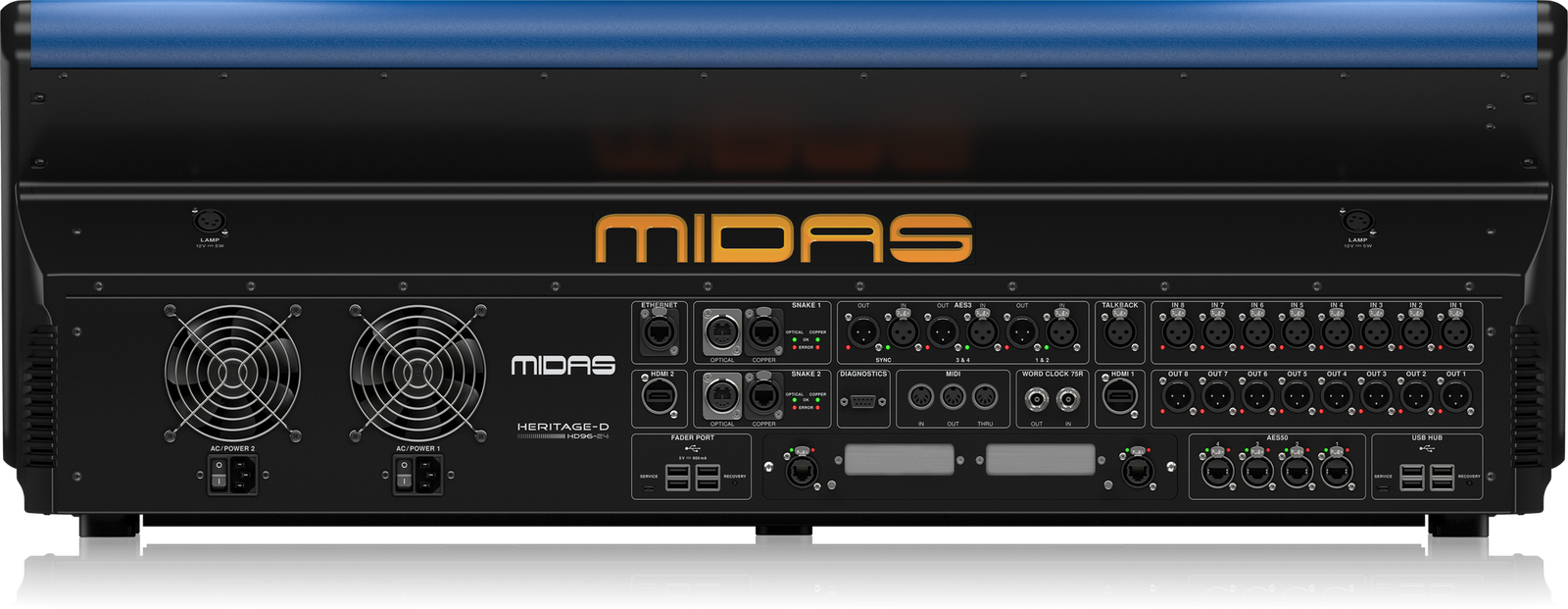

Connectors
| Midas microphone preamplifier | 8 x XLR balanced |
| Balanced outputs | 8 x XLR balanced |
| Talkback connector | 1 x XLR balanced |
| Talk connector | 1 x XLR balanced |
| Headphone connector | 2 x 1⁄4″ TRS (stereo) |
| Digital AES3 input / output (XLR) | 2 / 2 |
| AES50 ports (Klark Teknik SuperMAC, 100 Mbit/s) | 4 |
| Snake (copper) | 2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR |
| Snake (fiber) | 2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR |
| CM1 expansion slots | 2 x slots (CM1 module for AES50, DANTE, MADI and USB) |
| Ultranet | 2 x Ultranet ports (up to 16 digital outputs per port) |
| Word clock IN | BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms |
| Word clock OUT | BNC, provides a TTL level, 96 kHz square wave |
| AES3 sync IN | 1 x 3-pin XLR |
| AES3 sync OUT | 1 x 3-pin XLR |
| External (Ethernet) connector | Ethercon XLR |
| Monitor output | 2 x HDMI (1920 x 1080p 59.94Hz/60Hz 16:9 & 720 x 480p 59.94Hz/60Hz 16:9 supported) |
| USB 3.0 type A hub | 4 x 5 V – 900 mA |
| USB 3.0 type A (fader port expansion) | 4 x 5 V – 900 mA |
| USB 2.0 type A (front surface data) | 1 x 5 V – 500 mA |
| Diagnostics Port | Serial port |
| MIDI | In, Out and Thru 5-pin MIDI DIN sockets |
| Lamp | 2 x 12 V DC 5 W 4-pin |
| IEC mains socket with power switch | 2 |
Input / Output Characteristics
| Surface input impedance | 10 kΩ |
| Non-clip maximum input level | +24 dBu |
| Input gain | -22.5 dB to +65 dB |
| Phantom power (switchable per input) | +48 V |
| Talk mic impedance | 5 kΩ |
| Talk mic gain | +15 dB to +60 dB |
| Talk mic max level | +6 dB |
| Talkback impedance | 20 kΩ |
| Talkback gain | ∞ to + 10 dB |
| Talkback max level | +21 dBu |
| Surface output impedance | 50 Ω |
| Surface output gain | 0 dB |
| Surface output max level | +21 dBu |
| Dynamic range | 106 dB, 22 Hz to 22 kHz, unweighted |
| Maximum voltage gain | 100 dB inputs to subgroups and masters, 106 dB inputs to aux and matrix |
| Crosstalk at 1 kHz | -100 dB physically adjacent input channels |
| Crosstalk at 10 kHz | -90 dB physically adjacent input channels |
| Fader / pan cut off at 1 kHz | -100 dB |
| Fader / pan cut off at 10 kHz | -100 dB |
| Headphones output impedance | 10 Ω |
| Headphones maximum output level | +21 dBu |
Displays
| Display screen | 21″ LCD high brightness 1920 x 1080 px, capacitive touchscreen, up to 10 simultaneous touches |
| LCD info displays | 41 x full color LCD info displays, 24 mm x 24 mm (size), 240 x 240 px |
| Input meters (quantity 30) | 12 segment -35 dBu to +20 dBu |
| Output meters (quantity 7) | 20 segment -36 dBu to +21 dBu |
| Channel comp meters (quantity 28) | 5 segment -24 dBu to -1 dBu |
| Channel gate meters (quantity 28) | 5 segment -34 dBu to -5 dBu |
| Comp meter (quantity 1) | 12 segment -23 dBu to -1 dBu |
| Gate meter (quantity 1) | 12 segment -34 dBu to -1 dBu |
Controls
| 100 mm motorized faders | 8 + 8 + 8 + 4 | |
| Touch-sensitive rotary controls | 66 | |
| Custom controls | Fully assignable rotary controls | 28 + 8 |
| Fully assignable backlit buttons | 28 + 8 + 12 | |
| Headphone controls | A and B, min to max | |
| Talk | Talk gain min to max |
