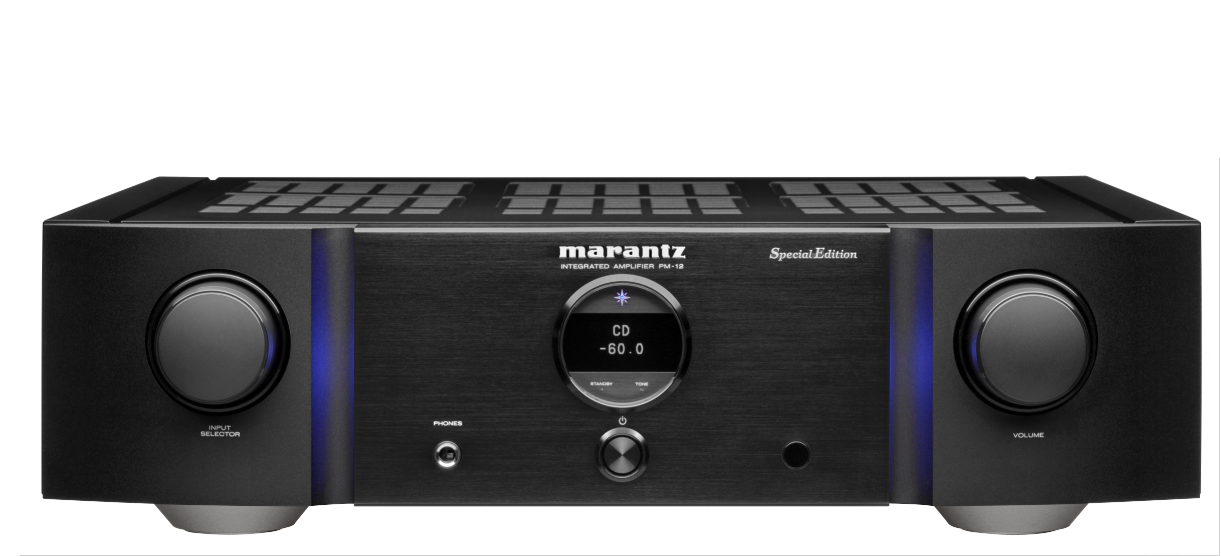

Marantz PM12 SE Special Edition Integrated Stereo Amplifier (Black)
18,058.95 AED Includes 5% UAE VAT

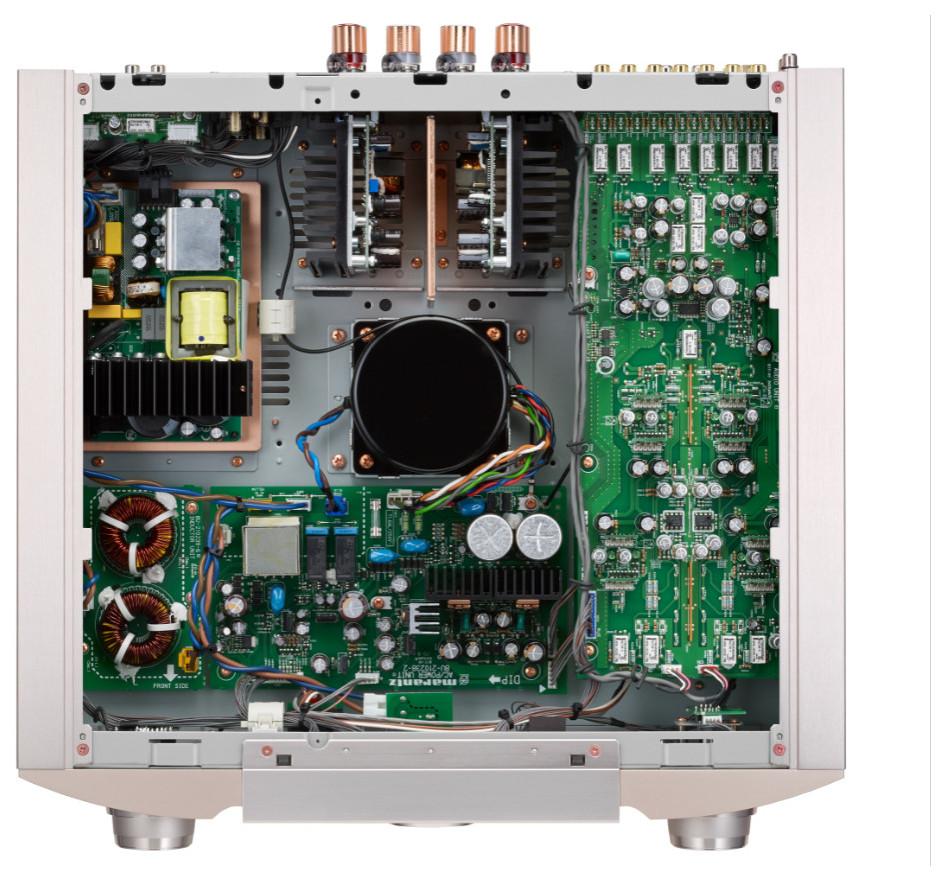

The Marantz PM12 SE is a masterfully tuned, analog-only integrated core designed for zero digital signal contamination. Built with a heavy double-layer steel chassis and a thick, solid aluminum front fascia, it splits processing duties into an independent two-stage configuration. A dedicated linear power section anchors the preamplifier, while an independent switching stage drives the power amplifier modules to minimize cross-circuit electrical pollution.
Model number
PM12SE/N1B
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Marantz PM12 SE is a masterfully tuned, analog-only integrated core designed for zero digital signal contamination. Built with a heavy double-layer steel chassis and a thick, solid aluminum front fascia, it splits processing duties into an independent two-stage configuration. A dedicated linear power section anchors the preamplifier, while an independent switching stage drives the power amplifier modules to minimize cross-circuit electrical pollution.
Key Features
- Derived Switching Power Topology: Employs an advanced “switching power amplifier design derived from flagship PM-10 amplifier” leveraging custom Hypex NCore output modules for high-current linearity.
- Pre-Amp Toroidal Regulation: Deploys an oversized toroidal transformer dedicated strictly to the preamplifier stage to keep low-voltage music pipelines quiet, deep, and dynamic.
- HDAM-SA3 Discrete Modules: Replaces standard operational chips with Marantz’s elite discrete Hyper Dynamic Amplifier Modules (HDAM-SA3) to speed up signal handling.
- Premium Phono EQ System: Features an onboard “MM/MC Phono input with new discrete Marantz Musical Premium Phono EQ circuit” engineered to handle moving magnet and low-output moving coil cartridges natively.
- Upgraded Custom Connectivity: Replaces cheap terminals with massive, thick nickel-plated independent copper blocks for CD/Phono inputs, matching proprietary pure copper speaker binding posts.
- Purest Mode Operation: Deactivates tone control circuitry, display illumination, and unnecessary recording lines to achieve the lowest possible noise floor.
Applications
- Reference Analog Music Setups: Serves as the high-current power hub for traditional physical separates, pairing best with reference turntables and premium disc players.
- Difficult-to-Drive Tower Speakers: The high 500 damping factor and linear current-scaling (doubling from 8Ω to 4Ω) effortlessly control large, low-efficiency floor-standing speakers.
- Power Amplifier Slave Integration: Features a specialized Power Amp Direct In terminal configuration, letting users pass front left/right channels from a home theater processor directly to the PM-12SE power stage.
Technical Specifications
The engineering and electrical parameters officially verified by Marantz include:
| Parameter | Specification Details |
|---|---|
| Amplifier Design | Fully Discrete, Two-Stage Integrated Stereo Amp |
| Power Output (8 Ohms) | 100 Watts per channel RMS (1 kHz, T.H.D. 0.05%) |
| Power Output (4 Ohms) | 200 Watts per channel RMS (1 kHz, T.H.D. 0.1%) |
| Frequency Response | 5 Hz – 50,000 Hz (±3 dB) |
| Total Harmonic Distortion | 0.005% (1 kHz, at 100W into 8 Ohms) |
| Damping Factor | 500 (8 Ohms load, 20 Hz – 20 kHz) |
| Signal-to-Noise Ratio (S/N) | Line Level: 107 dB | Phono MM: 88 dB | Phono MC: 75 dB |
| Input Sensitivity | Line: 220 mV / 13 kΩ | MM: 2.3 mV / 39 kΩ | MC: 250 µV / 100 Ω |

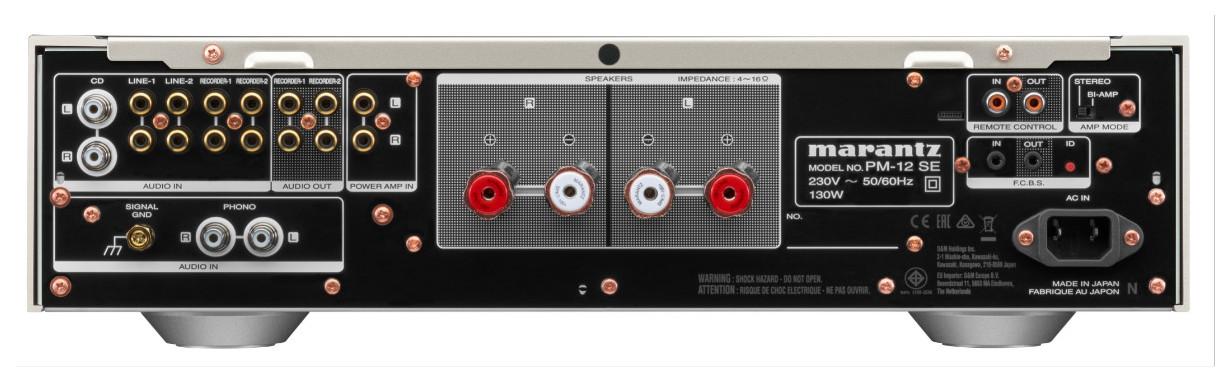

| Analog Audio Inputs | 5 × Stereo RCA Pairs, 1 × Dedicated MM/MC Phono Pair, 1 × Power Amp Direct |
| Analog Audio Outputs | 2 × Stereo RCA Recording Loop Outs, 1 × 1/4″ Front Headphone Jack |
| Dimensions (W × D × H) | 440 × 453 × 123 mm |
| Net Unit Weight | 15.3 kg (33.7 lbs) |
