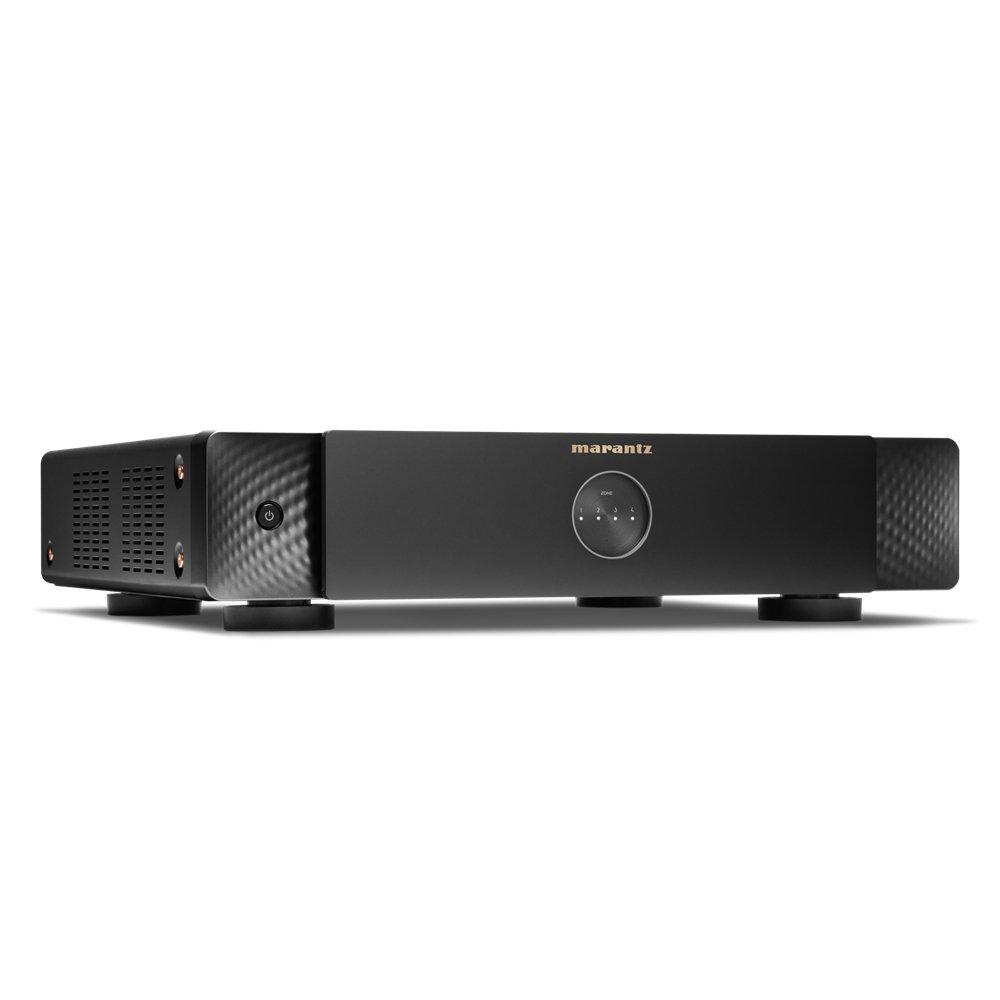

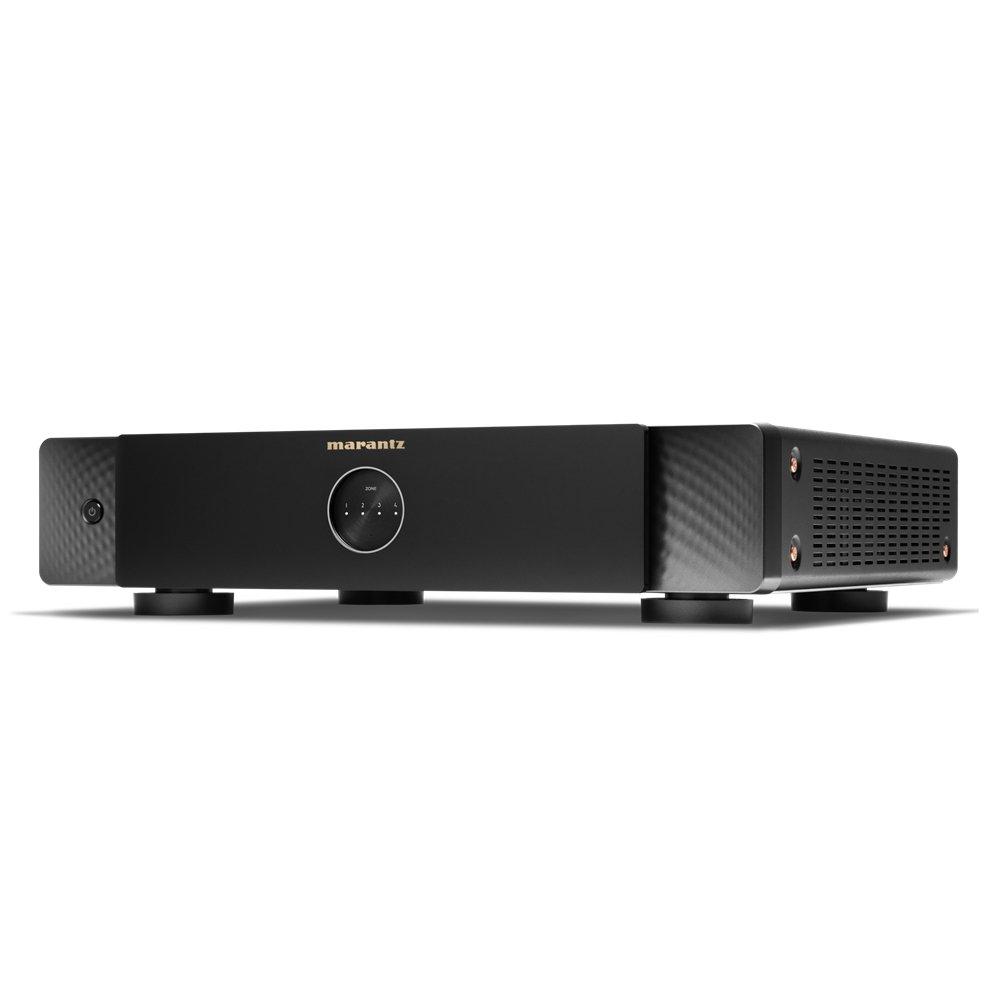

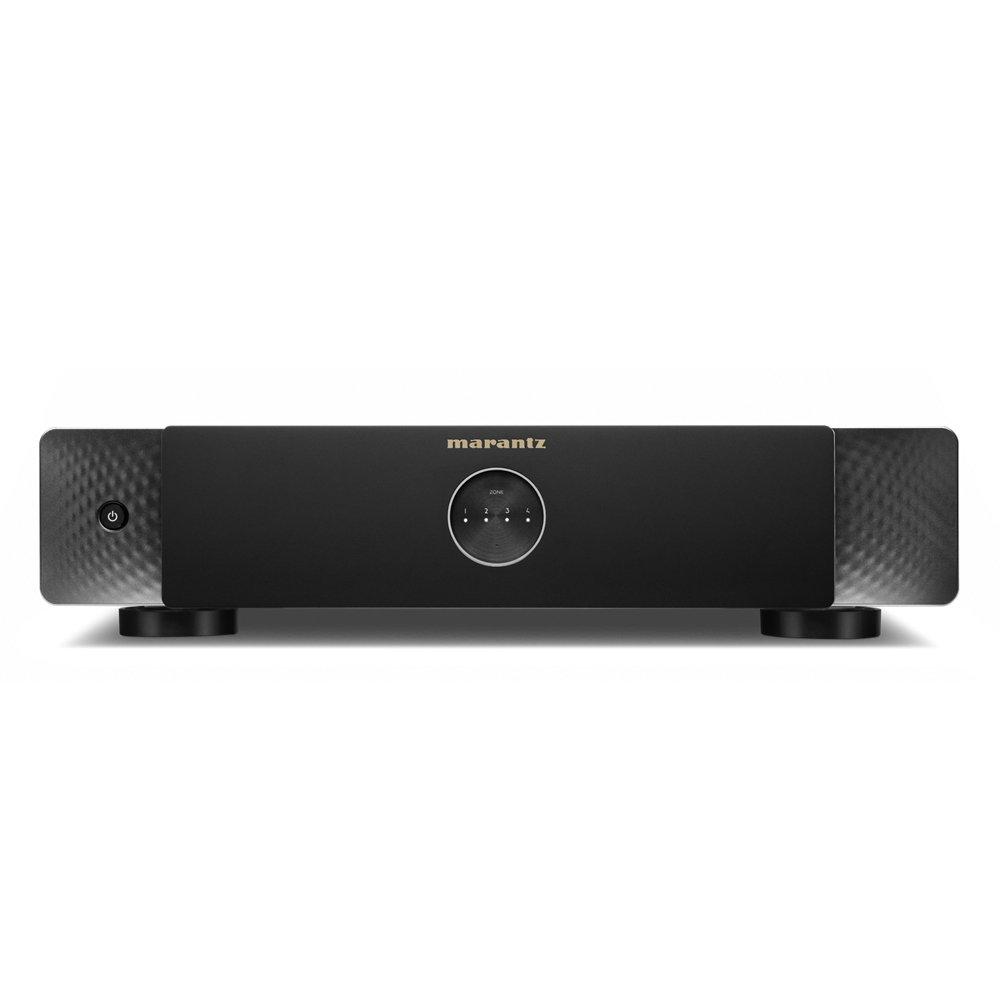

Marantz Model M4 Four-Zone 8-Channels Distribution Amplifier ( Black)
17,848.95 AED Includes 5% UAE VAT
The Marantz MODEL M4 represents an intelligent, single-box reinvention of whole-home multi-room distribution architectures. While typical distribution hardware serves as raw passive amplification, the M4 houses four independent HEOS streaming modules inside a singular 2U-high chassis. This allows home integrators or audiophiles to simultaneously play completely different audio sources across four separate living zones, or link them together effortlessly using a unified application controller.
Model number
MODELM4/EX1B
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Marantz MODEL M4 represents an intelligent, single-box reinvention of whole-home multi-room distribution architectures. While typical distribution hardware serves as raw passive amplification, the M4 houses four independent HEOS streaming modules inside a singular 2U-high chassis. This allows home integrators or audiophiles to simultaneously play completely different audio sources across four separate living zones, or link them together effortlessly using a unified application controller.
Key Features
- Four Independent HEOS Modules: Acts as four standalone streaming endpoints on your home network, streaming from services like Spotify Connect, TIDAL HiRes, and Apple AirPlay 2 across separate zones.
- High-Power Bridge Mode Topology: Delivers a stable 100 Watts per channel into 8 Ohms across 8 channels. For larger spaces, channels can be grouped into a Bridge Mode configuration pushing 4 × 200W.
- Marantz Musical Digital Filtering (MMDF): Features an in-house DSP technology that “reveals the natural detail and tonality in sound” by using custom-designed filter curves derived from reference-series components.
- Dolby Digital Decoding: Features twin optical digital inputs coupled to an internal Dolby Digital down-mixing engine, turning multi-channel TV audio lines into pristine, high-intelligibility stereo multi-room sound.
- Flexible Zone Preouts & Sub Controls: Each discrete zone is fitted with an independent analog RCA pre-out pair that can seamlessly transition via software to act as a dedicated mono subwoofer channel with customizable digital filters.
- Integrated Thermally-Regulated Cooling: Outfitted with active, low-noise internal cooling fans to ensure long-term stability when multiple units are stacked closely together.
Applications
- Whole-Home Multi-Room Distributed Audio: Serves as the central multi-zone command deck powering passive in-ceiling, architectural wall speakers, or outdoor patio speakers across different rooms.
- Commercial Hospitality & Luxury AV Layouts: Perfect for multi-tier retail showrooms, upscale restaurants, and executive office spaces needing zone volume control and distinct audio maps.
- Smart Home Custom Rack Equipment Integration: Designed with standard 19-inch dimensions and packaged with included structural rack-ears, making it easy to seamlessly mount inside professional central automated smart closets.
Technical Specifications
The foundational engineering parameters officially documented by Marantz include:
| Parameter | Specification Details |
|---|---|
| Amplifier Channels | 8 Channels / 4 Independent Zones |
| Power Output (8 Ohms) | 100 Watts per channel RMS (20 Hz – 20 kHz, 0.05% THD) |
| Power Output (4 Ohms) | 125 Watts per channel RMS (1 kHz, 0.05% THD) |
| Bridge Mode Power Output | 200 Watts per channel into 4 Ohms (4 channels driven) |
| Frequency Response | 20 Hz – 40 kHz (±3 dB) |
| Signal-to-Noise Ratio (S/N) | 106 dB (Analog Line In) | 103 dB (Optical In) |

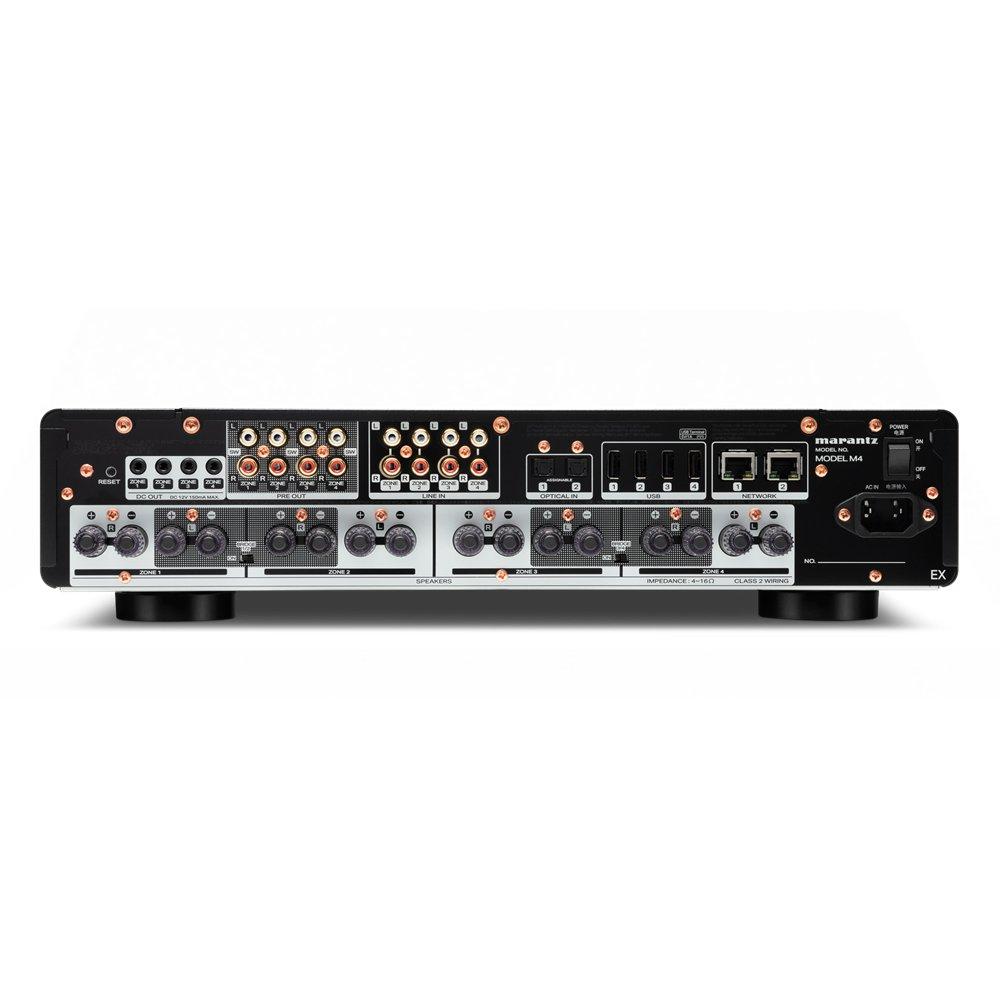

| Wired Audio Inputs | 4 × Stereo RCA Pairs, 2 × TOSLINK Optical Inputs |
| Wired Audio Outputs | 4 × Stereo RCA Pre-outs (or 4 × Mono Subwoofer lines via app) |
| Local File Media Ports | 4 × Dedicated USB-A Ports (One per streaming zone) |
| Local Network Infrastructure | Dual Ethernet RJ-45 Routing Loop Ports (Note: No Wi-Fi/Antenna hardware) |
| High-Resolution Support | ALAC, FLAC, WAV up to 24-bit / 192 kHz | DSD up to 5.6 MHz |
| Chassis Dimensions (WHD) | 17.4 × 4.1 × 16.3 inches (~442 × 106 × 415 mm) |
| Net Unit Weight | 17.6 lbs (8.0 kg) |
