Marantz Model 10 Reference Stereo Integrated Amplifier (Black)
68,248.95 AED Includes 5% UAE VAT

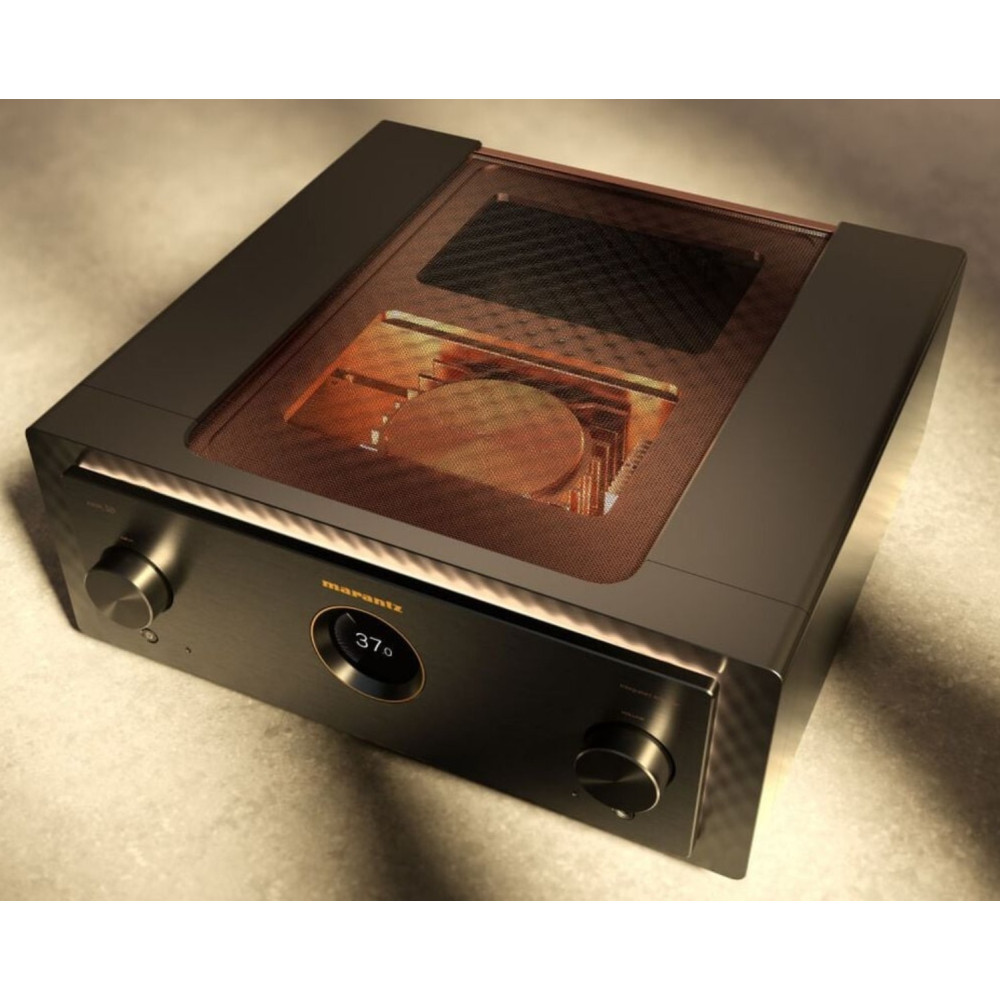

The Marantz Model 10 is the brand's absolute flagship reference integrated stereo amplifier, representing the most powerful single-box amplification system in Marantz history. It utilizes a newly engineered, fully balanced dual-mono symmetrical topology co-developed with Purifi Audio. Built by hand at the legendary Shirakawa Audio Works in Japan, it features a 1.5cm thick, copper-plated triple-layer chassis designed to systematically isolate low-power sensitive circuits from high-power stages.
Model number
MODEL10/N1B
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Marantz Model 10 is the brand’s absolute flagship reference integrated stereo amplifier, representing the most powerful single-box amplification system in Marantz history. It utilizes a newly engineered, fully balanced dual-mono symmetrical topology co-developed with Purifi Audio. Built by hand at the legendary Shirakawa Audio Works in Japan, it features a 1.5cm thick, copper-plated triple-layer chassis designed to systematically isolate low-power sensitive circuits from high-power stages.Â
Key Features
-
- Marantz & Purifi Audio Platform: Leverages advanced, custom Eigentakt Class-D switching technology built in-house for ultra-low distortion and an exceptionally wide dynamic range.Â
- Three Independent Power Supplies: Features twin custom Marantz SMPS switch-mode power supplies (one dedicated to each audio channel) alongside a separate, third linear supply tasked strictly with powering the control circuitry.Â
- Next-Gen HDAM-SA3 Circuitry: Employs the latest iteration of Marantz’s discrete Hyper Dynamic Amplifier Modules paired with Current Feedback topology for highly musical, detailed transient response.
- Ultra-Premium Volume Control: Uses a high-performance MUSES 72323 integrated circuit to maintain absolute signal transparency across all gain adjustments.
- Premium MM/MC Phono Stage: Features completely separate left and right equalizer boards housed inside a copper-anodized aluminum shield case with customizable cartridge impedance matching.
- Porthole TFT Display: Features Marantz’s classic circular window fitted with a high-definition color screen that can instantly toggle between status indicators or dynamic, digital VU level meters.
Applications
-
- Flagship Stereo Listening Rooms: Acts as the high-fidelity power anchor for premium, uncompromising, ultra-high-end audiophile sound systems.
- Difficult-to-Drive Loudspeakers: Easily tames complex, low-efficiency speaker loads and electrostatic panels down to 2 ohms due to its high damping factor and massive raw current output.
- Preamplifier Bypass Integration: Includes a dedicated “Power Amp” input mode, allowing it to seamlessly function as a standalone stereo power amplifier within a larger premium home theater setup.
- High-End Reference Headphone Listening: Incorporates a dedicated, fully discrete headphone amplifier stage pushing 130 mW into 32 Ω with a standard 1/4″ front jack. [1, 2, 3, 4, 5]
Technical Specifications
The foundational performance parameters verified by the manufacturer include:
| Parameter | Specification Details |
|---|---|
| Power Output (8 Ohms) | 250 Watts per channel RMS (20Hz–20kHz, 0.05% THD) |
| Power Output (4 Ohms) | 500 Watts per channel RMS (20Hz–20kHz, 0.05% THD) |
| Frequency Response | 5 Hz – 60,000 Hz (+0dB / −3dB) |
| Total Harmonic Distortion | 0.005% (at 125W into 8 Ohms, 20Hz-20kHz) |
| Damping Factor | 500 (8 Ohms, 20Hz–20kHz) |
| Signal-to-Noise Ratio (S/N) | Line/Balanced: 122 dB | Phono MM: 88 dB | Phono MC: 76 dB |
| Phono Load Settings | Moving Magnet (MM) | Moving Coil (MC): Low (33Ω), Mid (100Ω), High (390Ω) |

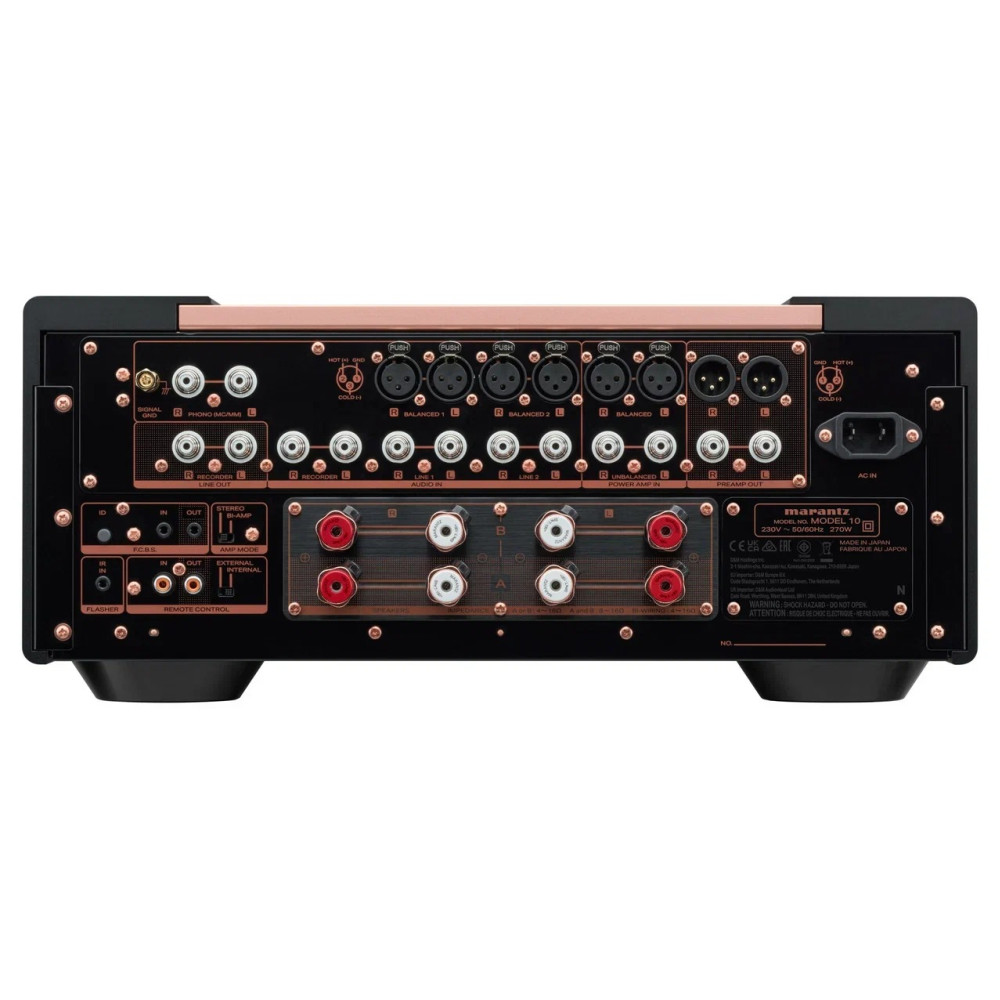

| Analog Audio Inputs | 2 × Balanced XLR, 2 × Line-In (RCA), 1 × CD (RCA), 1 × Phono (RCA) |
| Audio Outputs | 1 × Balanced XLR Pre-Out, 1 × RCA Pre-Out, 1 × Recorder Out |
| Dimensions (W × H × D) | 17.3 × 7.6 × 18.6 inches (~440 × 192 × 473 mm) |
| Net Unit Weight | 74.3 lbs (33.7 kg) |
