Marantz LINK10N 2.1Ch Streaming Pre-Amplifier (Black)
56,173.95 AED Includes 5% UAE VAT
The Marantz LINK10N is an uncompromising, luxury streaming preamplifier handcrafted at the prestigious Shirakawa Audio Works in Japan. Weighing an astonishing 33 kg (73 lbs)—an unprecedented weight for a component containing no power amplifiers—it is built within a massive, copper-plated triple-layer aluminum chassis. The internal architecture uses isolated sub-enclosures to physically wall off the sensitive analog preamplifier boards from high-frequency digital streaming noise. It operates on a fully differential, complementary balanced circuit topology from input to output to maintain absolute signal purity.
Model number
LINK10N/N1B
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Marantz LINK10N is an uncompromising, luxury streaming preamplifier handcrafted at the prestigious Shirakawa Audio Works in Japan. Weighing an astonishing 33 kg (73 lbs)—an unprecedented weight for a component containing no power amplifiers—it is built within a massive, copper-plated triple-layer aluminum chassis. The internal architecture uses isolated sub-enclosures to physically wall off the sensitive analog preamplifier boards from high-frequency digital streaming noise. It operates on a fully differential, complementary balanced circuit topology from input to output to maintain absolute signal purity.
Key Features
- Marantz Musical Mastering (MMM-Conversion): Bypasses commercial DAC chips. The system’s custom dual-SHARC DSP engine “upsamples everything to DSD 256 before running it through a low-pass filter” to output a pure analog waveform.
- Dual Toroidal Power Supplies: Employs two massive, independent toroidal power transformers—one purely handling the digital boards and streaming clocks, and the other feeding the delicate analog line stages.
- Next-Gen HDAM Analog Stage: Replaces integrated circuit op-amps entirely. It leverages the absolute latest, fully differential iteration of Marantz’s discrete Hyper Dynamic Amplifier Modules (HDAM).
- HEOS® Built-In & Roon Ready: Runs natively on the high-resolution HEOS streaming ecosystem, supporting direct integration with TIDAL Connect, Spotify Connect, and Apple AirPlay 2.
- Marantz Premium Phono EQ: Features a studio-grade, fully isolated internal phono preamplifier stage “supporting both MM and MC cartridges” with customizable Moving Coil impedance settings.

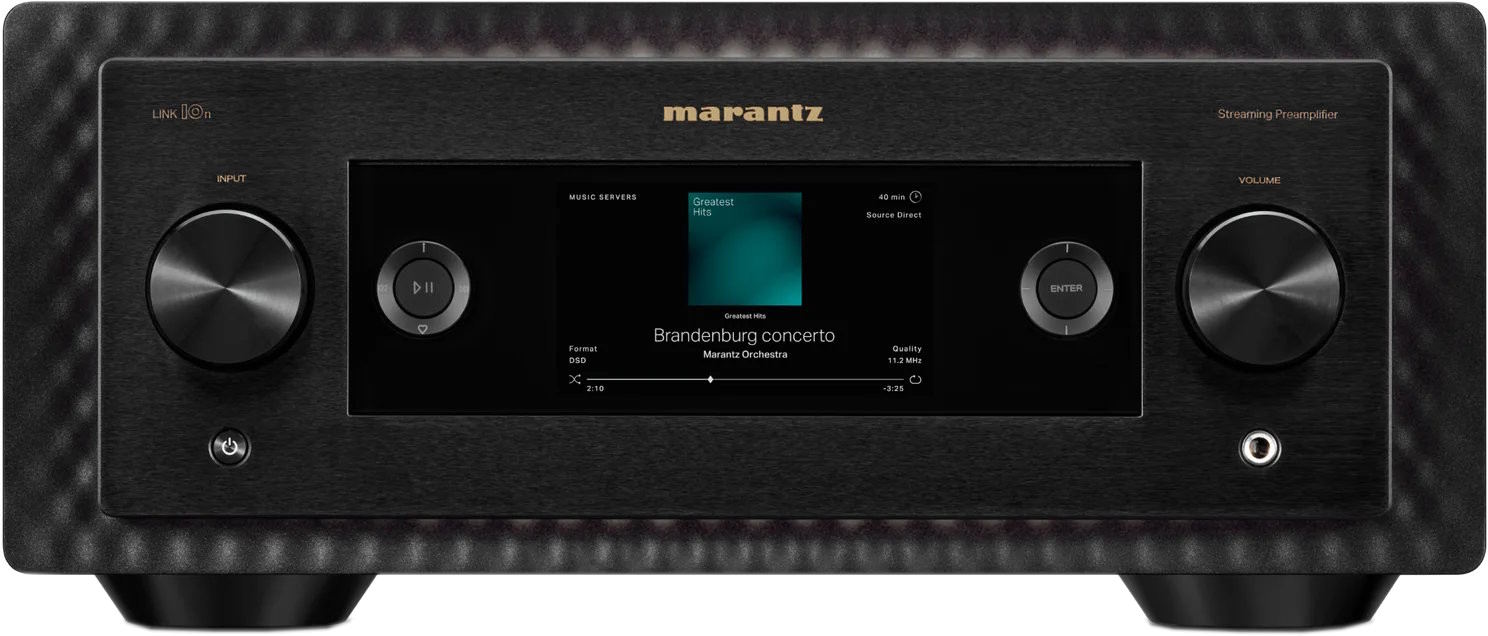

- High-Resolution Color TFT Display: Relies on a wide, full-color front panel screen to elegantly render high-definition album art, track details, and hardware menu settings.
Applications
- Flagship 10 Series System Hub: Functions as the master high-resolution digital streamer, DAC, and analog volume front-end fed directly into the MODEL 10 amplifier.
- Purist 2.1-Channel Soundstage: Incorporates a dedicated, variable analog subwoofer pre-out to integrate stereo floor speakers with an active sub.
- Audiophile TV Entertainment: Features an isolated, jitter-controlled HDMI eARC input to integrate high-end physical speaker setups with modern television sound stages.
Technical Specifications
The foundational structural and performance specifications for the Marantz LINK 10n include:
| Parameter | Specification Details |
|---|---|
| Preamplifier Type | 2.1-Channel Fully Featured Reference Streaming Preamplifier |
| Analog Frequency Response | 5 Hz – 100,000 Hz (+0 dB / −3 dB) |
| PCM Streaming Frequency Response | 2 Hz – 50,000 Hz (−3 dB) |
| Total Harmonic Distortion (THD) | 0.0004% (PCM decoding) | 0.001% (Analog pre-out) |
| Signal-to-Noise Ratio (S/N) | 122 dB (Balanced line inputs) | 88 dB (MM) | 76 dB (MC) |
| Digital Decoding Headroom | PCM up to 32-bit / 384 kHz | DSD up to 11.2 MHz (DSD256) |

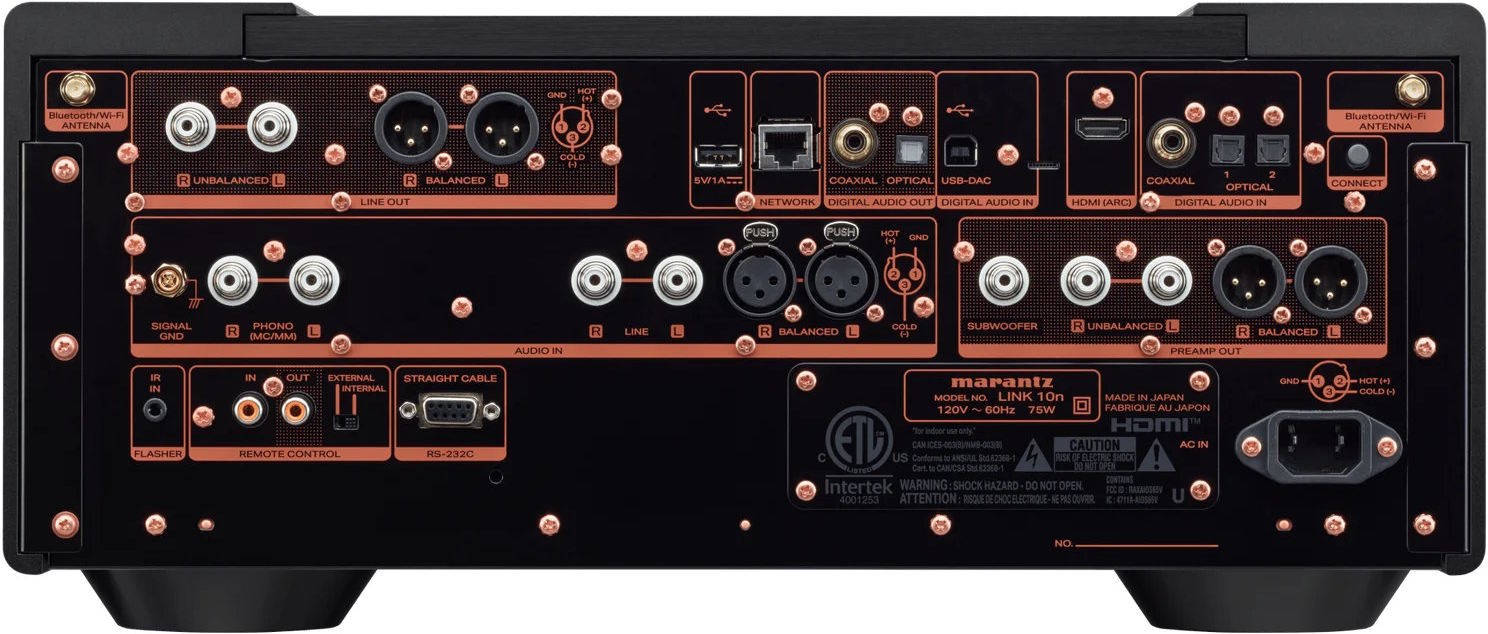

| Analog Inputs | 1 × Balanced XLR Pair, 1 × Unbalanced RCA Pair, 1 × MM/MC Phono Pair |
| Digital Inputs | 1 × HDMI eARC, 1 × Asynchronous USB-B (PC-DAC), 1 × Coaxial, 2 × Optical |
| Preamplifier Outputs | 1 × Balanced XLR Pair, 1 × Unbalanced RCA Pair, 1 × Subwoofer RCA |
| Fixed Line Outputs | 1 × Fixed Balanced XLR Pair, 1 × Fixed Unbalanced RCA Pair |
| Subwoofer Crossover Options | Low-pass filter adjustable from 40 Hz to 120 Hz (in 20 Hz steps) |
| Headphone Amp Output | Fully discrete HDAM-SA2 layout pushing 130 mW into 32 Ω |
| Net Unit Weight | 72.8 lbs (33.0 kg) |
