Marantz AMP 20 12-Channel 200W Power Amplifier
28,663.95 AED Includes 5% UAE VAT
The Marantz AMP 20Â is a reference-grade 12-channel power amplifier designed to deliver high-performance audio for large-scale immersive home theater systems. Released as a companion to the AV 20 processor, it is expertly crafted in Marantz's Shirakawa facility in Japan and features a high-current design capable of driving complex speaker loads with absolute fidelity.
Model number
AMP20
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Marantz AMP 20Â is a reference-grade 12-channel power amplifier designed to deliver high-performance audio for large-scale immersive home theater systems. Released as a companion to the AV 20 processor, it is expertly crafted in Marantz’s Shirakawa facility in Japan and features a high-current design capable of driving complex speaker loads with absolute fidelity.
Key Features
- 12-Channel Power: Provides 12 independent channels of amplification, ideal for a complete 7.1.4 or 5.1.6 Dolby Atmos setup from a single chassis.
- Massive Output: Rated at 200 watts per channel (8 ohms, 1kHz, 0.07% THD) or 400 watts per channel (4 ohms) with two channels driven.Â
- Marantz HDAM-SA2: Employs proprietary discrete topology rather than off-the-shelf ICs, resulting in lower distortion and a more linear, detailed sound.Â
- Custom Class D Amplification: Uses highly efficient custom-developed Class D modules (ICE edge) that allow for massive power without the excessive heat or footprint of traditional Class AB designs.Â
- Flexible System Modes:
- Bi-Amp Mode: Allows you to use two channels to power a single compatible speaker for improved detail.
- Bridge (BTL) Mode: Combines channel pairs to deliver up to 400 watts at 8 ohms for high-demand front towers.

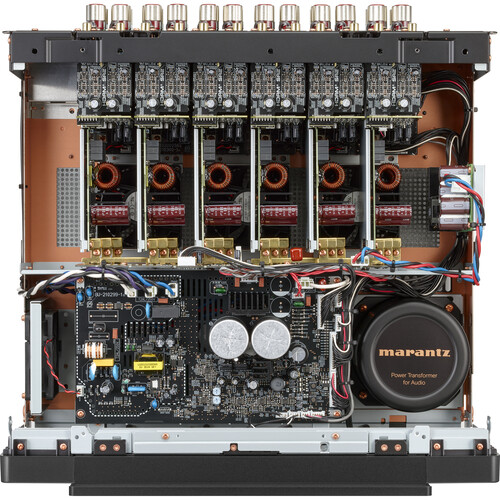

- Premium Power Supply: Features a Marantz proprietary 1,500-watt SMPS power supply shared with the flagship AMP 10, ensuring consistent power delivery under high demand.
Technical Specifications
| Category | Specification Details |
|---|---|
| Amplifier Type | Reference 12-Channel Power Amplifier |
| Power Output | 200W/ch (8Ω) or 400W/ch (4Ω) |
| Frequency Response | 5 Hz – 70,000 Hz |
| Signal-to-Noise Ratio | 110 dB |

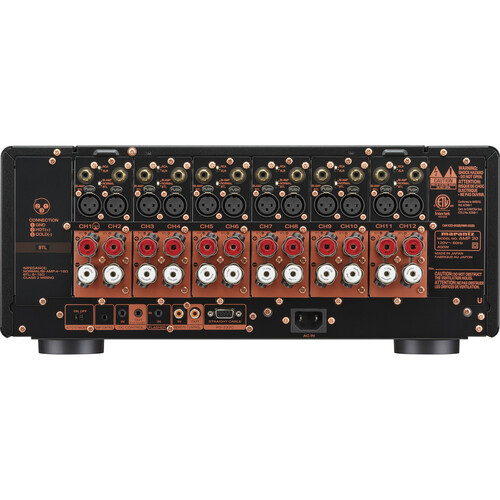

| Connectivity | 12 Balanced XLR and 12 Unbalanced RCA inputs |
| Dimensions (WxDxH) | 44.2 cm x 43.7 cm x 18.9 cm |
| Weight | 18.0 kg |
