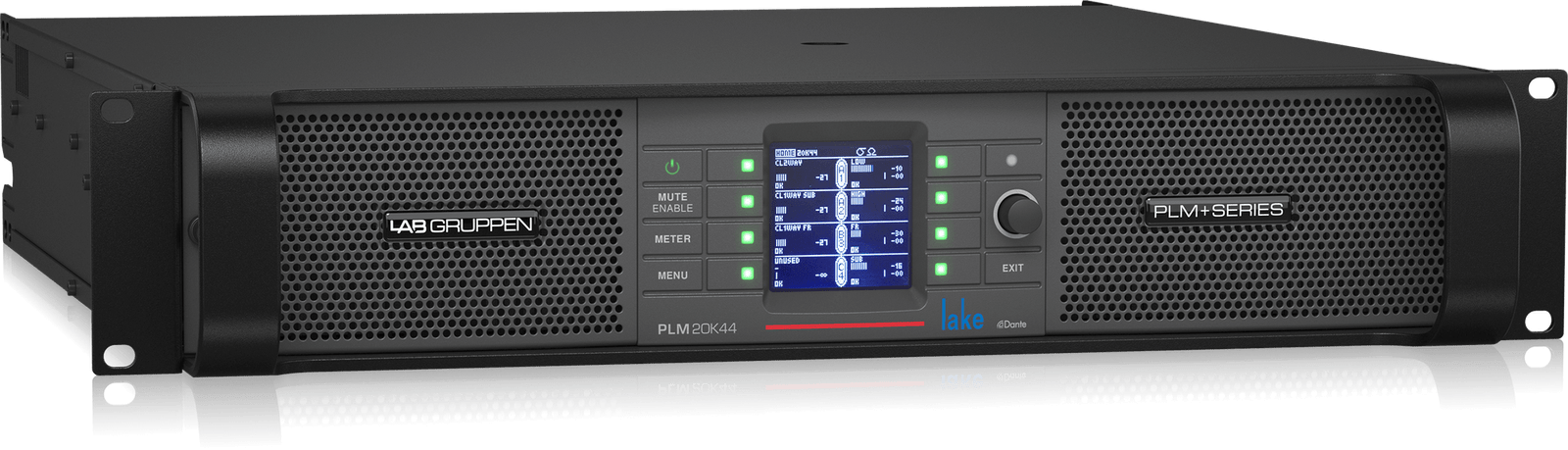

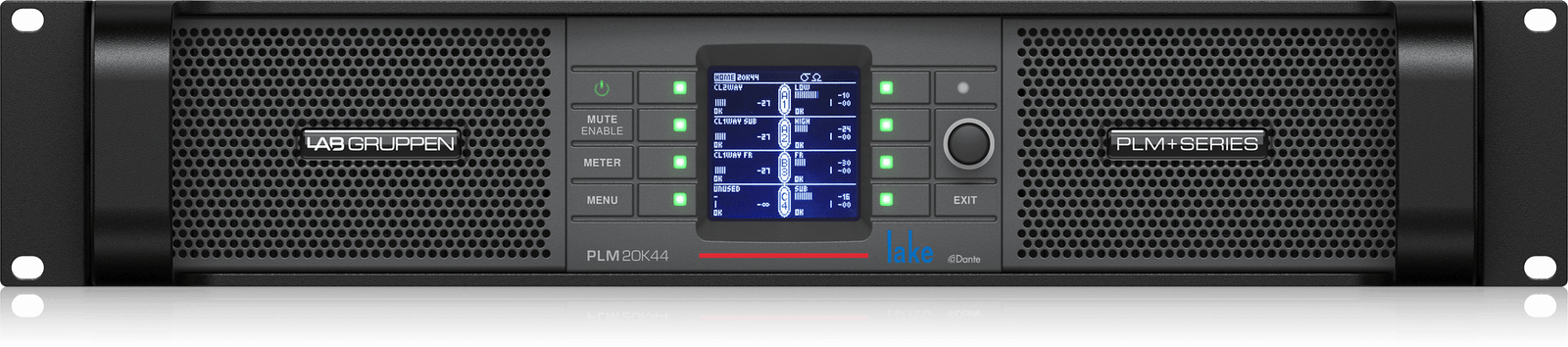

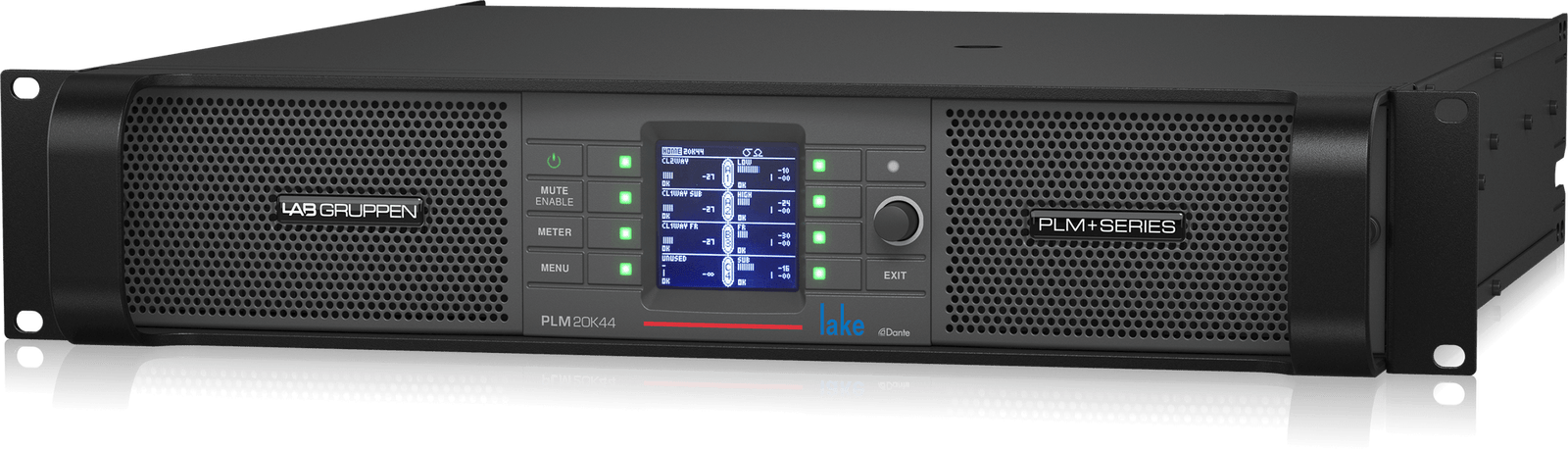

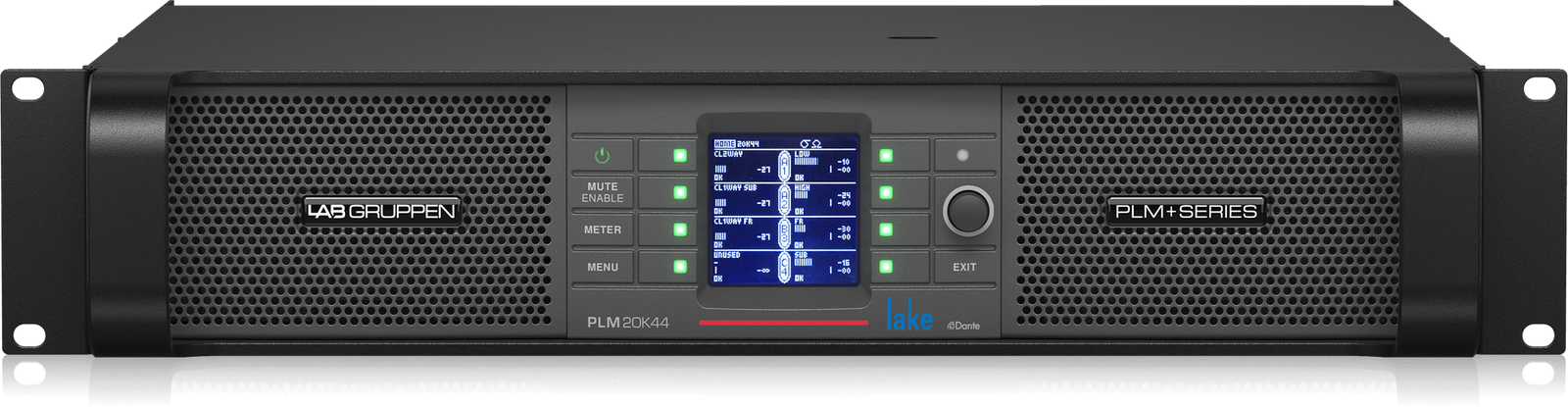

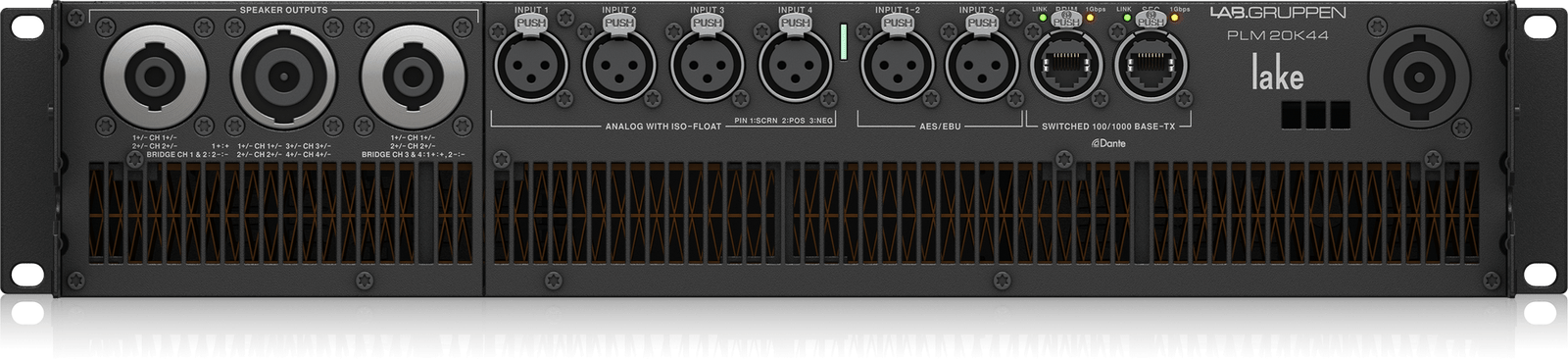

Lab Gruppen PLM 20K44 SP 20,000W Amplifier with 4 Channels, Dante Networking
49,893.90 AED Includes 5% UAE VAT
The PLM 20K44 Loudspeaker Management System features a 4-in, 4-out configuration combined with advanced Dante networking, delivering high-performance audio processing. As the successor to the PLM 20000Q, it offers double the processing power with the Lake Controller version 6.3, making it a leading choice for professional touring and event audio systems.
Model number
PLM 20K44 SP
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The PLM 20K44 combines a 4-In, 4-Out configuration with industry-standard Dante networking, setting the benchmark for powered loudspeaker management system. The PLM 20K44 is the natural successor of the proven, road-tested, and trusted Lab Gruppen touring foundation exemplified by the iconic PLM 20000Q. Now offering an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 20K44 sets the benchmark for Powered Loudspeaker Management Systems.
Features
- 20,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel output for touring applications
- Lake digital signal processing for unparalleled loudspeaker management and system control
- Integrated 8×8 channels of dual redundant Dante digital audio networking with AES67 support
- Proven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling system
- Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
- Backlit, white-on-black front panel display and menu navigation buttons
- 3 front-to-rear airflow fans with temperature control for optimal speed and reduced noise
- Rugged 2U rackmount chassis for durability in touring applications
Specifications
| Meter button | Toggles through meter views |
| Menu button | Provides a menu driven interface for full function front panel control |
| Rotary Encoder | Yes |
| Exit Button | Provides a “back” function |
Mains Power
| Nominal voltage | 100 – 240 Volt AC 45 – 66 Hz |
| Operating voltage | 70 – 265 V AC |
| Mains wall plug | NEMA L5-30 “Twist lock” 125 V / 30 A, and CEE 7/7 “Schuko” 230 V / 16 A |
Power Supply Features
| Soft start / Inrush power | Yes/ Max 8 Ampere |
| Power Factor Correction (PFC) | 0.98 |
| Regulated switch mode power supply (R.SMPS) | Yes |
| Breaker Emulation Limiter (BEL) | Configurable current threshold and breaker profile |
| BEL max current threshold | 32 A |
| Power Average Limiter (PAL) | Yes |
| Under Voltage Limiter (UVL) | Yes |
| Mains undervoltage and overvoltage protection and mains glitch tolerance | Yes |
Dimensions
| Rack rail to rear panel | W: 483 mm (19″), H: 88 mm (2 U), D: 424 mm (16″) |
| Overall depth front-rear support | D: 498 mm (19.6″) |
Weight
| Weight | 17 kg (37 lbs) |
Finish
| Finish | Steel painted steel chassis with black painted steel / aluminum front |
Approvals
| Approvals | CE, ANSI / UL 60065 (ETL), CSA C22.2 NO. 60065, FCC, PSE, RCM, BIS India |
