Description

Description

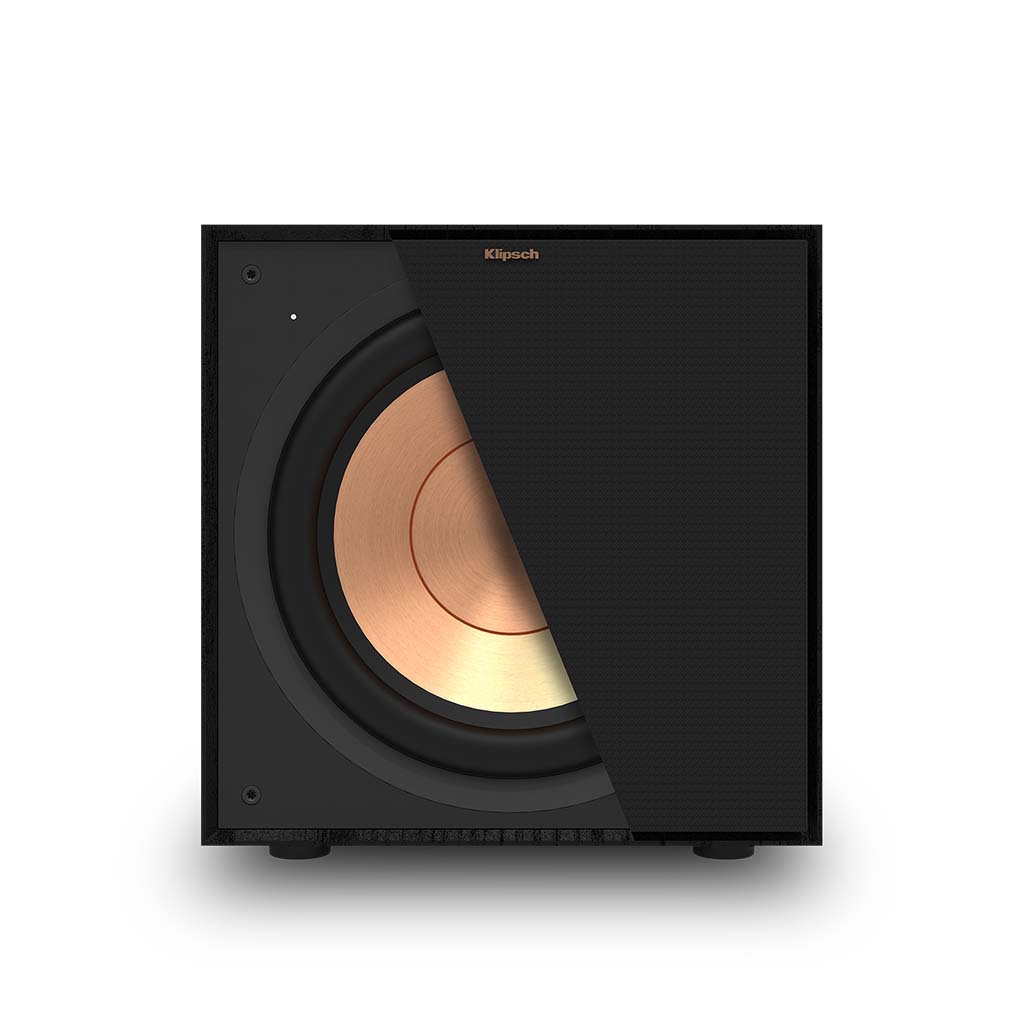

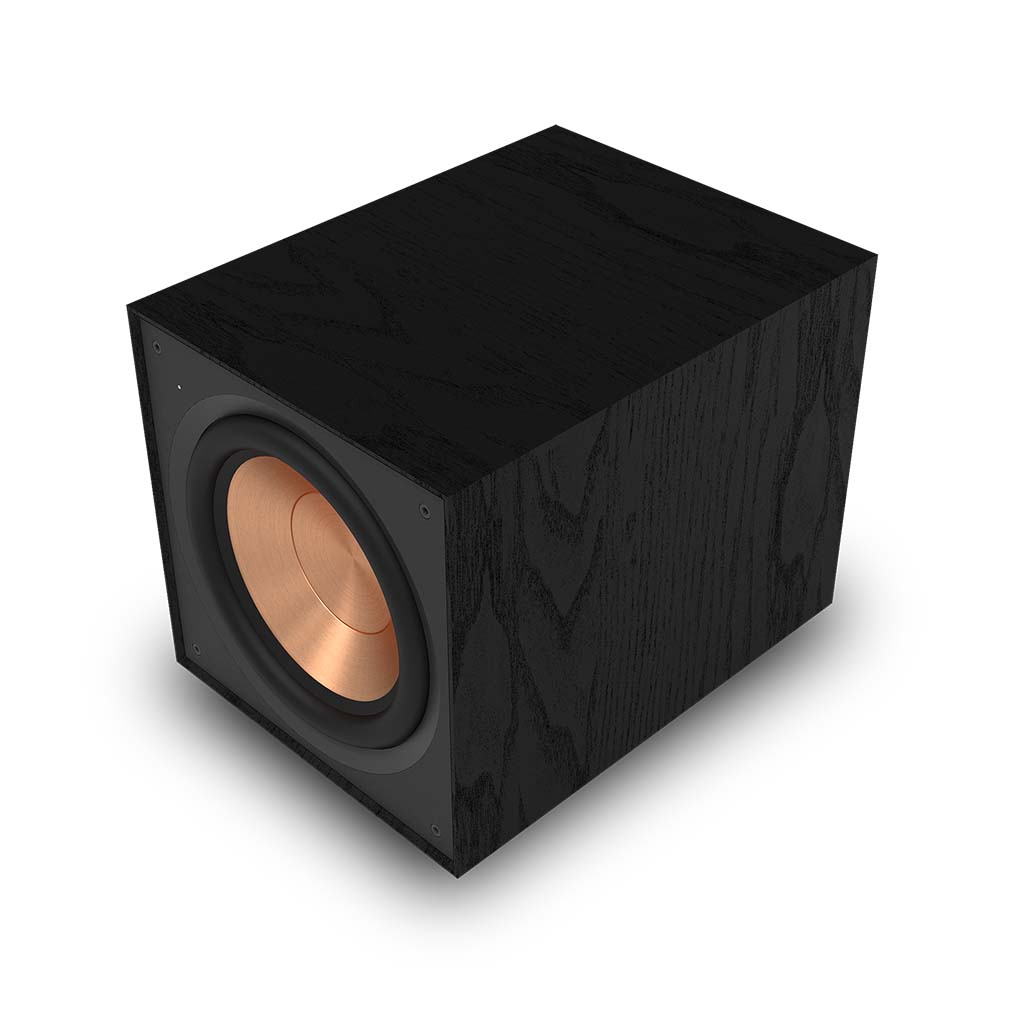

The Klipsch R-101SW delivers impactful, precise low-frequency performance from a compact, ported cabinet.
A 10″ high-excursion spun-copper TCP woofer combined with an all-digital amplifier produces powerful bass
with minimal distortion and excellent transient response — making it a great match for both music and movie systems.

Key features

  • 10″ high-excursion spun-copper thermoformed crystalline polymer (TCP) woofer for cleaner bass and reduced cone breakup.
  • All-digital amplifier with high efficiency and true-to-source accuracy.
  • Rear-firing bass-reflex (ported) enclosure for extended low-end output.

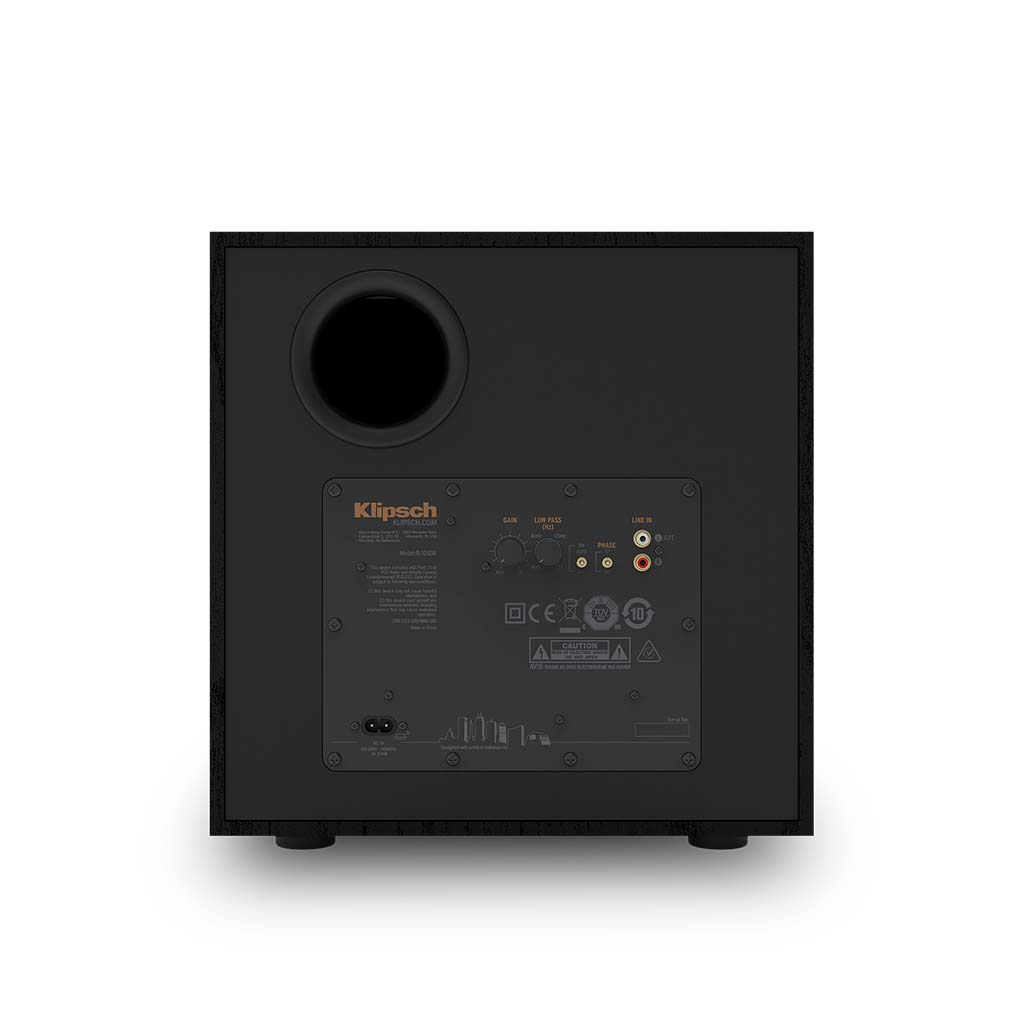

  • Controls: Volume, low-pass, 0/180° phase, and auto power-on for easy integration.
  • Line level / LFE RCA inputs for use with AV receivers and preamps.

Specification Value
Frequency range 29.5 Hz – 120 Hz
Maximum acoustic output 115 dB
Amplifier All-digital
Amplifier power (Cont / Peak) 150 W / 300 W
Amplifier features Volume, Low-pass, 0/180° phase, Auto Power On
Driver components 10″ high excursion spun-copper TCP woofer
Enclosure material MDF
Enclosure type Bass-Reflex (rear-firing port)
Inputs Line level / LFE RCA jacks
Height 14.6″ (370 mm)
Width 14.0″ (356 mm)
Depth 19.7″ (500 mm)
Product weight 31 lbs (13.9 kg)
