JBL Professional Mixer Amplifier CSMA2120 8 Input 2x120W for Commercial Use
5,239.99 AED Includes 5% UAE VAT
The JBL CSMA 2120 Commercial Series Mixer/Amplifier is designed for commercial and industrial use, featuring eight mixer-channel inputs, two output channels, and a peak power of 120W. It includes illuminated volume controls, bass and treble controls, and supports both 70V/100V distributed audio systems. It has euroblock connections, unbalanced RCA inputs, dip switches, and RJ45 connectors for in-wall volume controls (sold separately), making it versatile and easy to operate even in low-light conditions.
Model number
CSMA2120
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

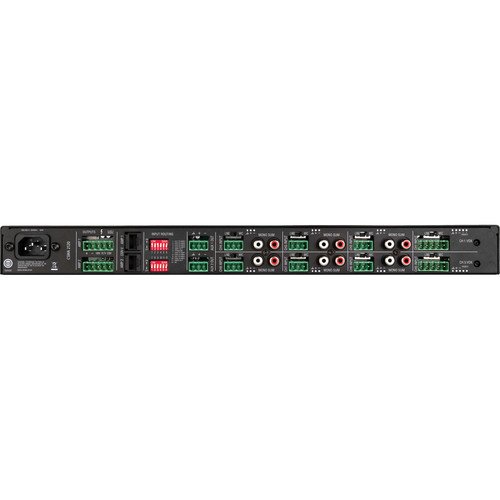

JBL CSMA 2120 Commercial Series Mixer/Amplifier
The JBL CSMA 2120 Commercial Series Mixer/Amplifier is an ideal solution for commercial and industrial audio applications. With eight input channels and two output channels capable of delivering up to 120W of peak power, this unit is designed to provide clear and powerful sound.
Key Features
- Eight mixer-channel inputs and two output channels
- 120W peak power with 15W per channel
- Illuminated volume controls for operation in dark environments
- Compatible with 70V and 100V distributed audio systems
- Voice-activated ducking for paging over background music
Additional Features
- Priority muting for channels one and five
- Automatic sleep mode after 30 minutes of inactivity
- Two auxiliary outputs for additional amplifier connectivity
Key Specifications
| Specification | Details |
|---|---|
| Form Factor/Type | Rackmount |
| Number of Channels | 8 Input / 2 Output |
| Power Rating | 120W per Channel (1 kHz, 0.5% THD) |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70V (40 Ohms Minimum) 100V (80 Ohms Minimum) |
| Frequency Response | 20 Hz to 20 kHz ±2 dB (Low-Z) |
| Input Sensitivity | Mic: 3 mVrms Line: 775 mVrms RCA: 300 mVrms |
| I/O Impedance | Mic Input: 400 Ohms Line Input: 20 Kilohms (Balanced) |
| Output Level | Line Output: 5 Vrms (10-Kilohm Load) |
| THD | 0.5% (20 Hz to 20 kHz, Main Output) 0.05% (Line Output) |
| Dimensions | 17.2 x 1.7 x 11.9 inches (436.9 x 43.2 x 302.3 mm) |
| Weight | 12.1 lb (5.5 kg) |
| Certification | Energy Star certified, Lead-free RoHS standards |
