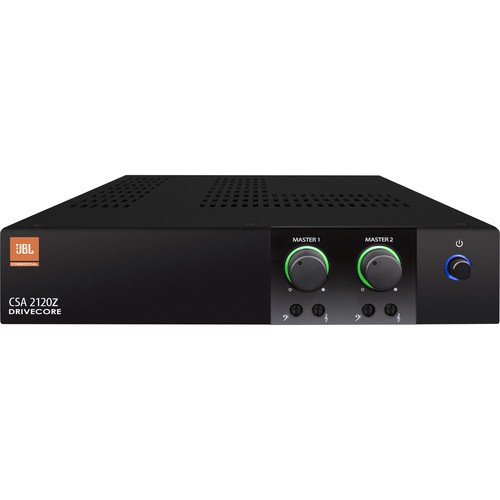

JBL Professional Commercial Audio Amplifier CSA2120Z 2x120W 70V/100V
3,810.00 AED Includes 5% UAE VAT
The JBL CSA 2120Z Audio Amplifier (2x 120W) delivers reliable sound amplification for installed applications with its universal switch-mode power supply and Crown's DriveCore technology. Supporting both 70V and 100V installations, it features 2 x RJ45 connectors for CSR-V in-wall volume controls, mono sum RCA input, and Euroblock outputs. Illuminated knobs provide visual feedback, while the amplifier accepts AC voltages from 100 to 240 VAC, 50/60 Hz, aligning with HARMAN's GreenEdge initiative.
Model number
CSA2120Z
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
JBL CSA 2120Z Audio Amplifier (2x 120W) – Key Features
The JBL CSA 2120Z Audio Amplifier is a compact and powerful solution for installed sound applications. Utilizing a universal switch-mode power supply and Crown’s DriveCore technology, this amplifier delivers reliable and efficient sound amplification. It is built to support both 70V and 100V installations directly out of the box. The amplifier’s user-friendly design includes illuminated knobs for easy visual feedback and is in line with HARMAN’s GreenEdge environmental initiative.
| Specification | Details |
|---|---|
| Number of Channels | 2 |
| Power Rating | 120 W (1 kHz, 0.5% THD) @ 4 Ohms / 8 Ohms |
| Load Impedance / Voltage | 4 Ohms (Minimum), 70 V, 100 V |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (8 Ohms) |
| Input Sensitivity | 1.4 Vrms |
| Input Impedance | 20 Kilohms (Balanced) Euroblock, 50 Kilohms RCA |
| SNR | > 100 dB |
| THD | < 0.5% |
| Crosstalk | > 70 dB |
| EQ | 2-Band |

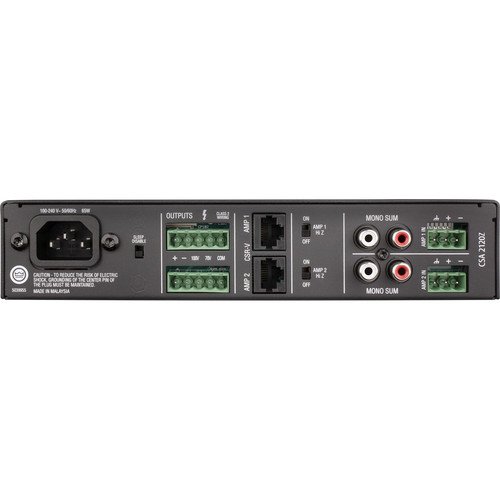

| I/O | 1 x 2RCA Summed-Mono Input, 2 x Euroblock Input, 2 x Euroblock 70/100 V Output |
| Digital I/O | 2 x RJ45 (Control) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Dimensions | 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm |
| Weight | 8.8 lb / 4 kg |
| Package Weight | 12.015 lb |
| Box Dimensions (LxWxH) | 16.45 x 12.15 x 4.9″ |
