JBL Professional Control 26-DT Coaxial Ceiling Speaker with 60W Transformer (1 Piece)
712.00 AED Includes 5% UAE VAT
The Control 26-DT is a compact ceiling speaker designed to fit standard 200 mm (8-inch) ceiling backcans, providing seamless integration and excellent audio performance.
Model number
CONTROL 26-DT
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

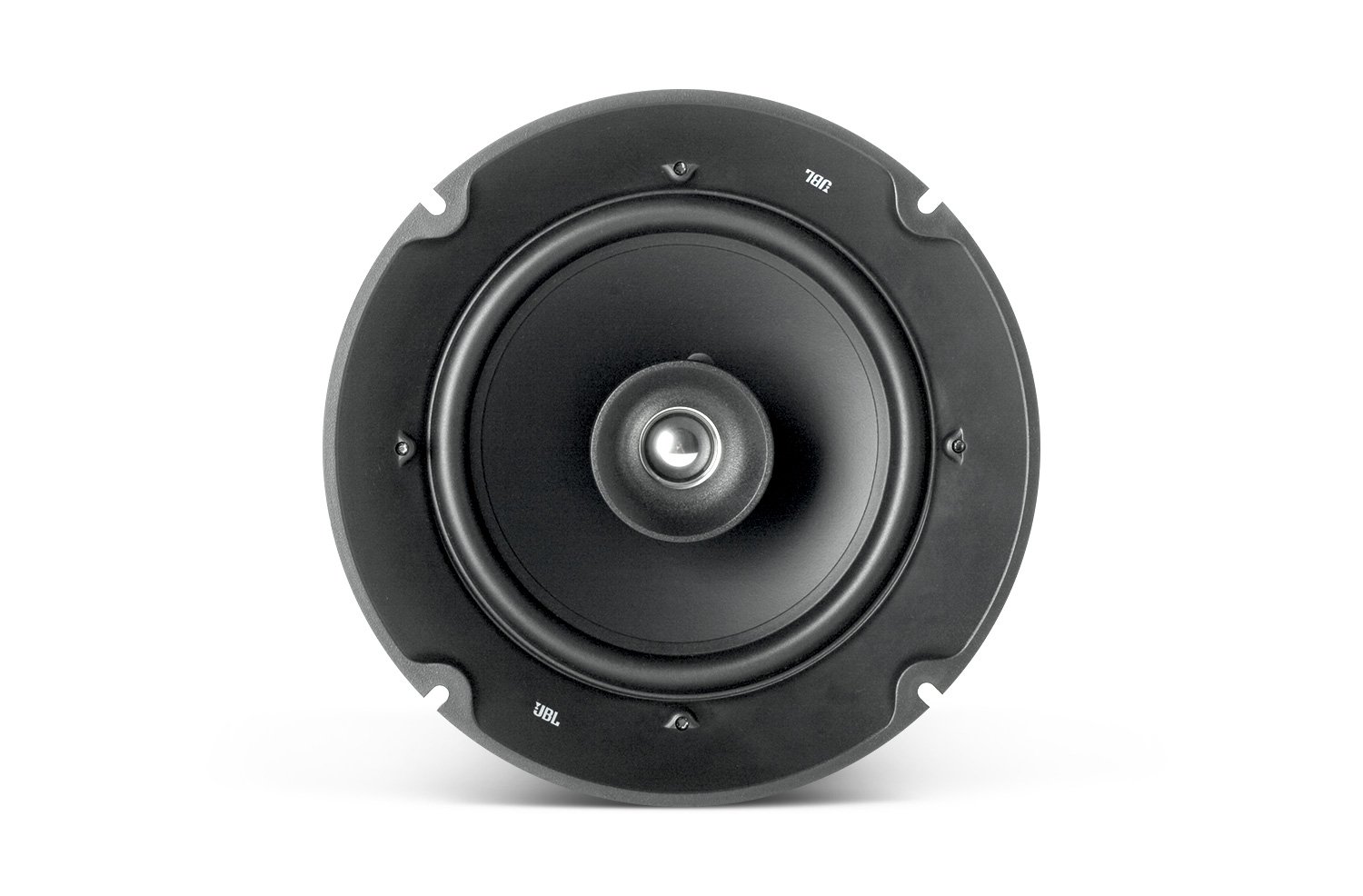

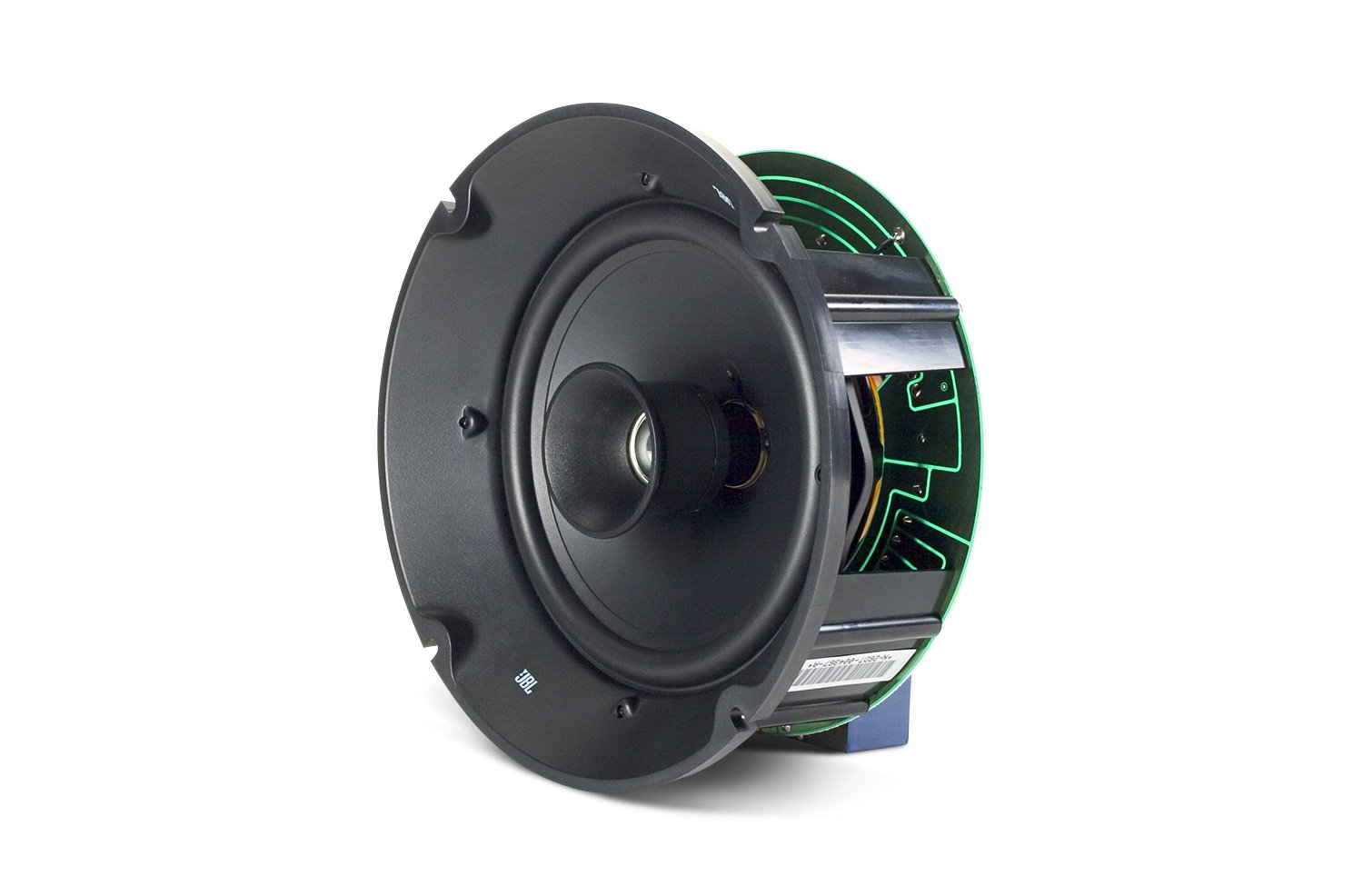

Control 26-DT Compact Ceiling Speaker Assembly
The Control 26-DT is a versatile ceiling speaker designed for superior audio performance in commercial installations. Its compact structure allows it to fit effortlessly into standard ceiling backcans configured for 200 mm (8″) drivers, providing a seamless integration with existing systems.
Features
- Fits in standard backcans for 8″ speakers, making it a versatile replacement option.
- Supplied complete with transducer, network, and transformer for easy installation.
- Advanced crossover network ensures natural sound and consistent coverage.
- Equipped with a 60 W transformer suitable for 70 V or 100 V distributed speaker lines.
- Uses a coaxial woofer with long-life butyl rubber surround and titanium coated tweeter for durability and quality sound.
Specifications
| Frequency Range | 80 Hz – 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 60W, 30W, 15W (7.5W @ 70V) |
| Coverage Angle | 90° conical |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 106 dB (top 70V/100V tap) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Outside Dimensions (H x Dia) | 210 x 252 mm (8.3 x 9.9 in) 190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) | 4.2 kg (10 lb) |
| Shipping Weight (pair) | 9.7 kg (21 lb) |
| Sensitivity | 89 dB (100 Hz – 10 kHz) |
| Safety Agency | In accordance with IEC60849 / EN60849. |
| Plenum Usage | Requires third-party plenum rated backcan |
