500 in stock
DBX Professional Digital Zone Processor 1260m 12×6 Inputs AutoWarmth
6,284.73 AED Includes 5% UAE VAT
The ZonePRO 1260m is a professional audio device featuring 12 inputs and 6 outputs, designed with fixed I/O, pre-configured architecture, and configurable insert processing. It supports balanced mic/line and unbalanced RCA inputs, along with S/PDIF inputs for digital channels. The hardware-controlled microphone gain can be adjusted per channel, and the device includes AutoWarmth® for consistent frequency bandwidth at varying signal levels. The link bus allows optional audio channel duplication to another ZonePRO device.
Model number
DBX1260MV-EU
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
dbx 1260m 12×6 Digital Zone Processor

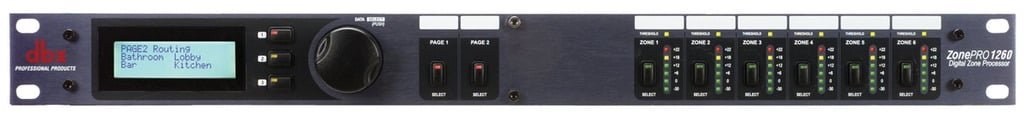

The ZonePRO 1260m is designed to provide advanced digital processing for audio zoning applications. With its fixed I/O, pre-configured architecture, and versatile configuration options, the 1260m ensures superior audio management.

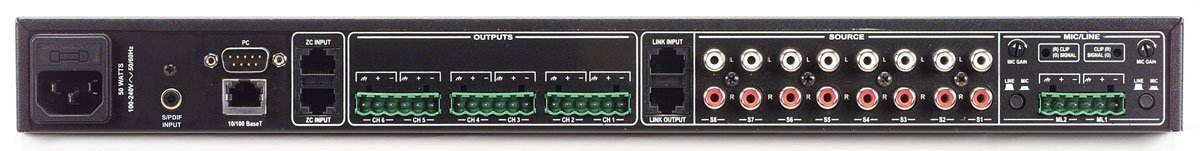

It boasts 12 inputs (including balanced mic/line inputs and unbalanced RCA inputs) and six outputs, offering flexibility in connections and comprehensive signal metering. The device also features configurable processing inserts, an AutoWarmth® function for enhanced audio fidelity, and a link bus for channel duplication in extended applications.
Key Specifications:
| Specification | Details |
|---|---|
| Product Name | dbx 1260m 12×6 Digital Zone Processor |
| Weight | 2.81 kg |
| Frequency Response | 20Hz – 20kHz, +/- 0.5dB |
| Power Capacity | 27 W |
| Impedance | 120Ω Balanced, 60Ω Unbalanced |
| Dimensions | 1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm) |
| Manufacturer | dbx |
| Color | Black |
Additional Features:
- Six balanced mic/line inputs
- Four mono-summed pairs of unbalanced RCA inputs
- One S/PDIF input for dual digital channels
- Microphone gain control for each channel
- Input and output insert positions for flexible processing
- AutoWarmth® available on every output zone
- Optional zone controllers for simplified interface
- Control via RS-232 or Ethernet
- Wizard-driven configuration with ZonePRO Designer software
Additional information
Additional information
| Brand | |
|---|---|
| EAN |
Reviews (0)
