Bose Professional ShowMatch SMS118 18″ Passive Subwoofer
16,986.90 AED Includes 5% UAE VAT
Ideal for theatres, performance venues, auditoriums, and houses of worship, the Bose Professional ShowMatch SMS118 is a subwoofer module for arrays designed to integrate with DeltaQ array loudspeakers. Offering low-frequency extension down to 29 Hz, this powerful sub sports an 18" neodymium driver with a max power handling of 750W RMS.
Model number
SMS118
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

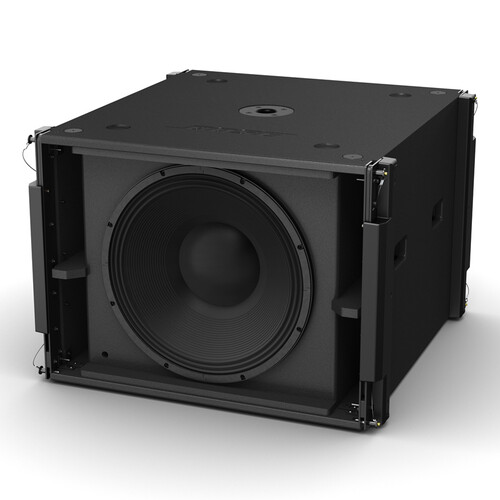

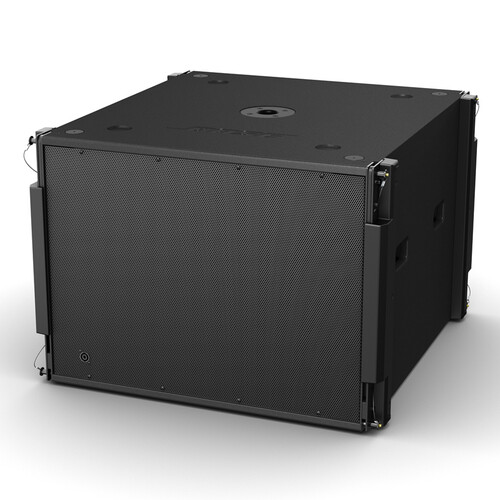

The is ShowMatch SMS118 a professional, high-performance 18-inch passive subwoofer module. It is engineered primarily to complement and mechanically integrate with ShowMatch DeltaQ line array clusters. Its enclosure width matches the full-range modules, enabling it to be cleanly flown at the top of a speaker hang, mixed within the array, or deployed as a heavy-duty ground stack.
🌟 Key Features
- Bose LF18 Neodymium Driver: Outfitted with a premium 18-inch, high-excursion transducer featuring a 4.5-inch voice coil for exceptional power handling and thermal efficiency.

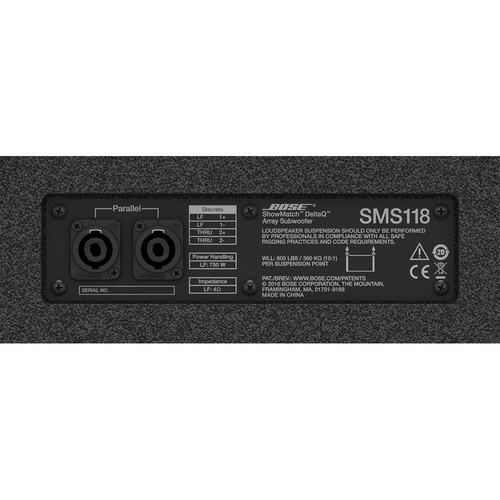

- Cardioid Array Support: Equipped with integrated front-grill NL4 input connectors alongside the standard rear panel inputs. This configuration allows production crews to easily flip cabinets backward to create directionally controlled cardioid bass setups.
- Integrated 4-Point Rigging: Employs a quick-pin hardware assembly allowing overhead arrays of up to 18 subwoofers per hang while maintaining a secure 10:1 safety factor.
- Pole-Mount Versatility: Includes a pre-installed, integrated M20 threaded pole-mount adapter flange on the top surface to support satellite mid/high loudspeakers for small portable gigs.Â
- Tour-Ready Cabinet: Constructed from high-density, portable-rated Baltic birch plywood treated with a rugged, wear-resistant black polyurethane finish.
📌 Applications
- Flown Line Array Systems: Anchoring overhead low-frequency extensions for theaters, auditoriums, and worship centers.
- Large Ground-Stack Layouts: Used underneath stage lips or front fills in stadium arenas and open-air live music festivals.
- Touring & Rental AV Production: Easily packs into standard trucks and flies quickly using the modular ShowMatch rigging grid plates.
📊 Technical Specifications
The foundational performance parameters verified by the manufacturer include:
| Parameter | Specification Details |
|---|---|
| Frequency Response (±3 dB) | 32 Hz – 250 Hz |
| Frequency Range (−10 dB) | 29 Hz – 300 Hz |
| Power Handling (Continuous) | 750 Watts RMS |
| Power Handling (Peak) | 3000 Watts Peak |
| Nominal Impedance | 4 Ω (Note: Some legacy documentation lists 8 Ω variant compatibility) |
| Sensitivity (1W @ 1m) | 92 dB SPL (Free-field) | 94 dB SPL (Half-space) |
| Calculated Maximum SPL | 127 dB Peak (Free-field / Flown) | 133 dB Peak (Ground-stacked) |
| Crossover Recommendations | 60 Hz – 100 Hz active external DSP filter settings |
| Dimensions (H × W × D) | 21.3 × 30.1 × 30.5 inches (~540 × 765 × 775 mm) |
| Net Unit Weight | 136.5 lbs (62.0 kg) |
