Bose Professional DesignMax DM8C-SUB In-Ceiling Subwoofer – Black (Single)

Name: Bose Professional DesignMax DM8C-SUB In-Ceiling Subwoofer - Black (Single)
Brand: Bose Professional
SKU: DM8C-SUB-BLK
Price: 2288.79 AED
Availability: InStock

Brand Bose Professional

2,288.79 AED Includes 5% UAE VAT

The Bose Professional DesignMax DM8C-SUB is a high-performance, 150-watt in-ceiling passive subwoofer engineered to deliver deep, impactful bass reinforcement for commercial audio installations.

Ask a question

Model number DM8C-SUB-BLK

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

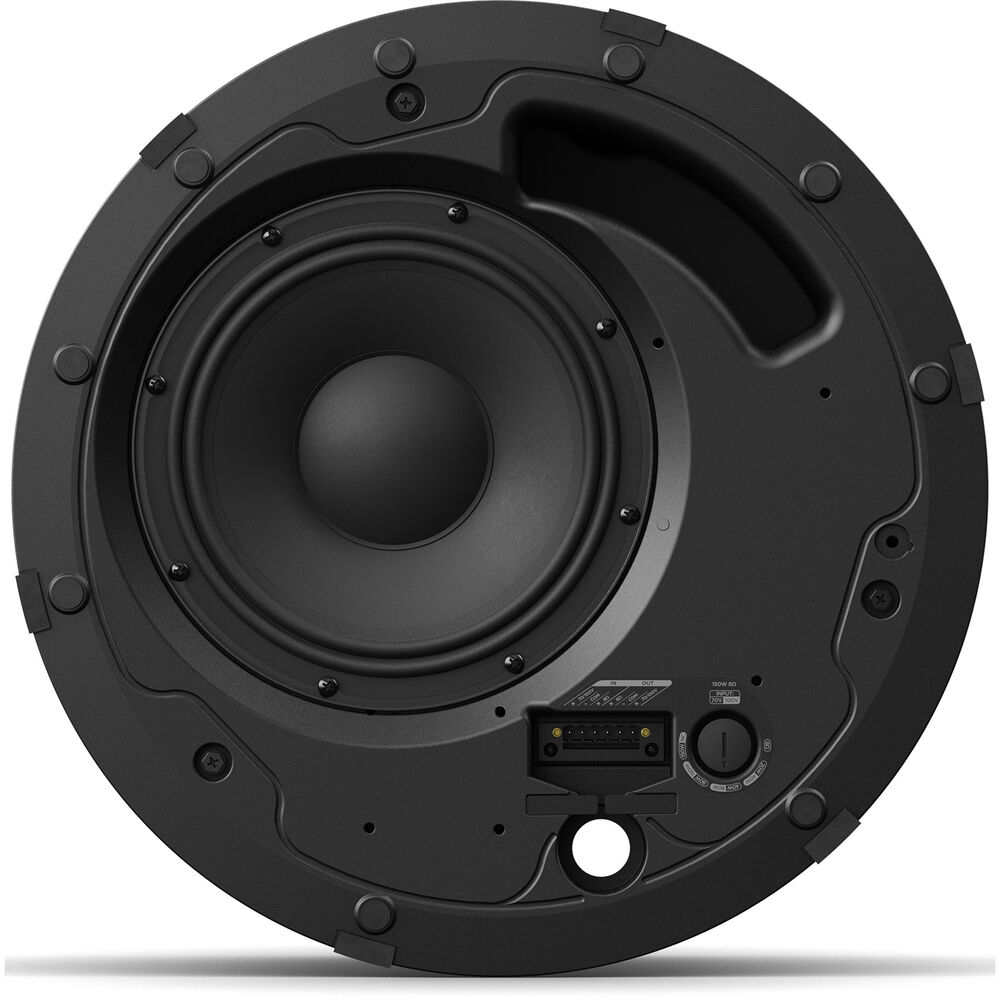

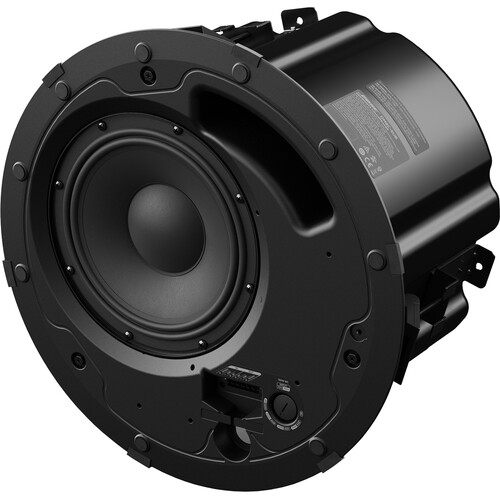

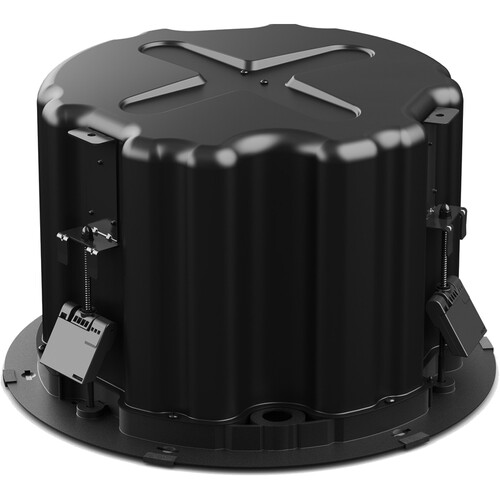

The DesignMax DM8C-SUB features an 8-inch high-excursion woofer installed in a robust, integrated metal backcan. It is voiced to maintain tonal consistency across the entire DesignMax family, allowing it to blend seamlessly with other models without requiring external digital signal processing (DSP) or specialized equalization. This model is built exclusively for indoor, flush-mount ceiling applications.

Features

- QuickHold Mounting System: Utilizes a specialized, spring-loaded arm mechanism that allows installers to quickly slide the speaker into the ceiling cutout, where it automatically holds the unit in place before the screws are tightened.
- Low-Profile Aesthetics: Features a minimum-bezel grille that attaches magnetically, ensuring the subwoofer blends subtly into modern ceiling designs. The brand logo is completely removable.
- Front-Baffle Tap Selection: Features an easily accessible wattage tap selector located directly on the front face under the grille, simplifying post-installation adjustments.
- Paintable Finish: The grille and bezel are fully paintable, allowing the speaker to completely match the exact color palette of the venue.
- Flexible Connectivity: Equipped with Euroblock connectors that support loop-through wiring for clean and straightforward commercial daisy-chain setups.

Applications

- Lounges, Bars, and Cafés: Adds rich bass and warm low-end to background or ambient foreground playlists without taking up valuable floor or wall space.
- Premium Retail Outlets: Enhances the shopping experience by adding depth to corporate playlists or promotional announcements.
- Corporate Boardrooms & Lobbies: Discretely supplements multimedia presentation audio and executive conferencing configurations.
- Hotels & Reception Halls: Broadens the sound profile across large open public registration and waiting areas.

Technical Specifications

- Transducer: 1 x 8-inch low-frequency woofer.
- Power Handling: 150 Watts RMS long-term continuous / 600 Watts peak power.
- Frequency Range (-10 dB): 38 Hz to 155 Hz.
- Frequency Response (+/-3 dB): 45 Hz to 117 Hz.
- Nominal Coverage: Omnidirectional below 200 Hz.
- Sensitivity (SPL / 1W @ 1m): 89 dB.
- Maximum SPL @ 1m: 111 dB continuous / 117 dB peak.
- Nominal Impedance: 8 Ohms (transformer bypassed).
- 70V/100V Multi-Tap Transformer Settings:
  - - 70V lines: 9W, 18W, 35W, 70W, 150W
    - 100V lines: 18W, 35W, 70W, 150W
- Enclosure Material: Engineered plastics front baffle with an integrated heavy-gauge steel backcan.
- Cutout Dimensions: Diameter of 349 mm.
- Product Dimensions (Diameter × Depth): 409 mm × 255 mm.
- Net Weight: 9.9 kg.
