Bose Professional DesignMax 8″ DM8S Surface-Mount Speaker- Black (Single)

Name: Bose Professional DesignMax 8" DM8S Surface-Mount Speaker- Black (Single)
Brand: Bose Professional
SKU: DM8S-BLK
Price: 2937.06 AED
Availability: InStock

Brand Bose Professional

2,937.06 AED Includes 5% UAE VAT

The Bose Professional DesignMax DM8S is a high-performance, 150-watt surface-mounted passive loudspeaker engineered to deliver powerful sound pressure levels (SPL) and full-range acoustic fidelity.

Ask a question

Model number DM8S-BLK

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

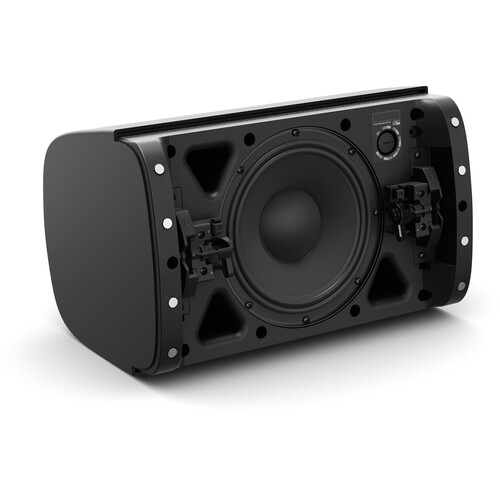

The DesignMax DM8S utilizes a coaxial two-way driver configuration packaged inside a clean, modern surface-mount enclosure. By combining a substantial 8-inch woofer with a center-firing 1-inch compression driver, it provides robust sound projection across open floor plans. Engineered to maintain consistent voicing across the entire DesignMax line, the DM8S produces detailed low-end response and clear vocal performance straight out of the box without requiring external digital signal processing (DSP) or manual equalization tweaks.

Features

Coaxial Two-Way System: Places the high-frequency compression driver directly in the center of the low-frequency woofer to provide seamless audio time-alignment and natural voice reproduction.
QuickHold Mounting System: Works via a hidden, pre-installable U-bracket. The speaker safely slides on and automatically clicks into position using heavy-duty, toolless locking levers to shorten installation time.
Clean Surface Aesthetics: Features a minimal-bezel grille with a removable or rotatable logo badge, making it easy to seamlessly integrate into high-end architectural environments.
Paintable Exterior: The UV-resistant plastic housing and its protective front steel grille can be fully painted to match custom interior themes.
Multi-Tap Transformer Hookup: Features a built-in multi-tap transformer accommodating 70V/100V distributed system topologies alongside standard low-impedance 8-ohm lines via an integrated Euroblock terminal.

Applications

Live Venues, Restaurants, & Bars: Delivers the energetic volume and impactful bass punch required for late-night foreground tracking or live performance fills.
Retail Stores & Flagship Showrooms: Blankets expansive, high-ceiling retail floors with uniform musical coverage and clear paging announcements.
Conferencing Centers & Ballrooms: Projects precise, intelligible spoken word audio across wide multi-purpose seminar layouts.
Fitness Centers & Aerobic Studios: Provides the high SPL output and rhythm definition needed to motivate group workout classes.
Houses of Worship: Functions exceptionally well as main or fill speakers for speech intelligibility and musical reinforcement.

Technical Specifications

Transducers: 1 x 8-inch low-frequency woofer, 1 x 1-inch center-firing coaxial high-frequency compression driver.
Power Handling: 150 Watts RMS long-term continuous / 600 Watts peak power.
Frequency Range (-10 dB): 52 Hz to 20,000 Hz.
Frequency Response (+/-3 dB): 60 Hz to 20,000 Hz.
Nominal Coverage Pattern: 130° Conical dispersion.
Sensitivity (SPL / 1W @ 1m): 93 dB.
Maximum SPL @ 1m: 115 dB continuous / 121 dB peak.
Nominal Impedance: 8 Ohms (transformer bypassed).
70V/100V Transformer Tap Positions:
- 70V lines: 2.5W, 5W, 10W, 20W, 40W, 80W
- 100V lines: 5W, 10W, 20W, 40W, 80W
Product Dimensions (H × W × D): 395 mm × 249 mm × 255 mm.
Net Weight: 10.3 kg.
